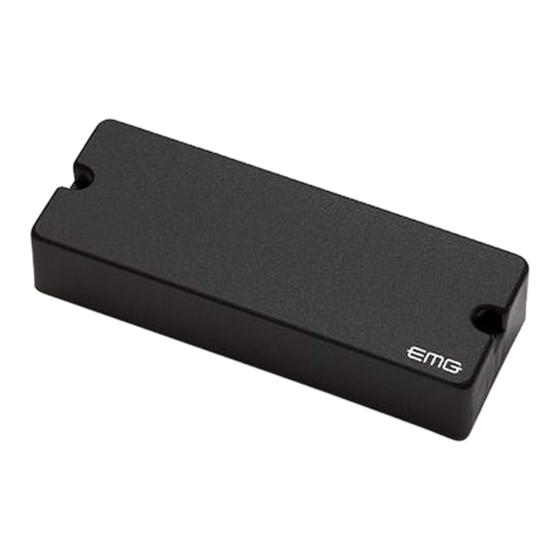

EMG 40P5-X Quick Start Manual

INSTALLATION INFORMATION
EMG MODELS: 40P5-X, 40J-X, 40JCS-X (5-STRING)
40CS-X, 40DC-X (5-STRING)
40P-X, 40PCS-X (5-STRING OR NARROW 6-STRING)
SPECIFICATIONS:
Logo Color
Magnet Type *
Resonant Frequency (KHz)
Output Voltage (Finger, Thumb)
Output Voltage (Thump)
Output Noise (60 Hz)
Output Impedance (Kohm)
Current @9V (Microamps)
Battery Life (Hours)
Maximum Supply (Volts DC)
*Note: Magnet Type: C (Ceramic) C/S (Ceramic and Steel)

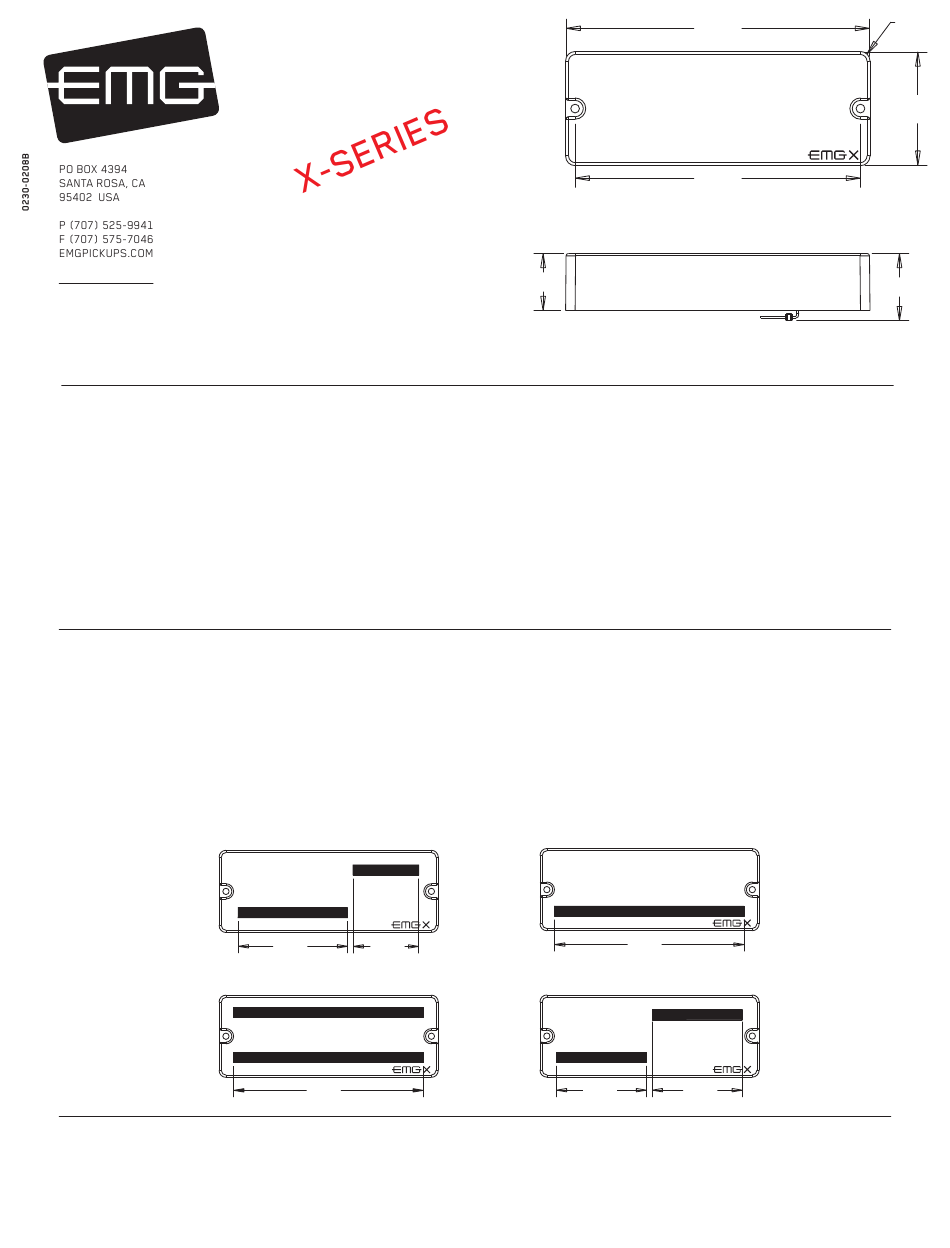

PICKUP AND MAGNET DIMENSIONS:
All EMG-40-X Models have the same housing dimensions (shown above).
The differences in each of the models are in the magnet widths and type. The drawings below show the magnet placement for all versions,
5-string and for a narrow 6-string bass. You should check the width of your strings against the magnet dimensions below to make sure there
is sufficient string coverage. A rule of thumb for any pickup is that the total magnet width should be the string width plus twice the distance
the pickup is from the strings. So, If the pickup is 3/16" (5mm) from the strings, with a magnet width of 3.46" (88mm) the maximum string width
would be 3.00" (78mm). If your string width is too wide for the Pickups shown below, choose one of the EMG-45 Extended Series Pickups,
with a 4.5 inch (114mm) housing, where similar styles of EMG pickups are available.
Warranty
All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If
upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This
warranty covers only those pickups and accessories sold by authorized EMG Dealers. This warranty is not transferable.
© 2014 Copyright EMG INC. All Rights Reserved.
40P5-X 40J-X
Silver Silver
C C
3.20 4.05
2.00 2.00
8.50 4.50
-106 -101
2.00 2.00
80 80
3000 3000
27 27
MAXIMUM RECOMMENDED STRING WIDTH 3.00" (76.2) ALL 40 MODELS
EMG-40P5-X
2.000 1.200
(50.8)
(30.5)
EMG-40CS-X/40DC-X
3.465
(88.0)
.125 (3.17) DIA. MOUNTING HOLES
.750 (19)
MODEL:
40JCS-X 40CS-X
Silver Silver
C/S C/S
3.48 2.50
2.00 2.50
4.50 8.50
-101 -108
2.00 2.00
80 80
3000 3000
27 27
EMG-40J-X/40JCS-X
3.465
(88.0)
EMG-40P-X/40PCS-X
1.650
(41.9)
4.000
(101.6)
3.750
(95.2)
40DC-X 40P-X 40PCS-X
Silver Silver Silver
C C C/S
3.50 3.20 2.61
2.50 2.00 2.00
8.50 8.50 8.50
-108 -106 -101
2.00 2.00 2.00
80 80 80
3000 3000 3000
27 27 27
(NARROW 6 STRING)
1.650
(41.9)
R .125
(3.17) TYP
1.500
(38.1)
.880 (22.3)
