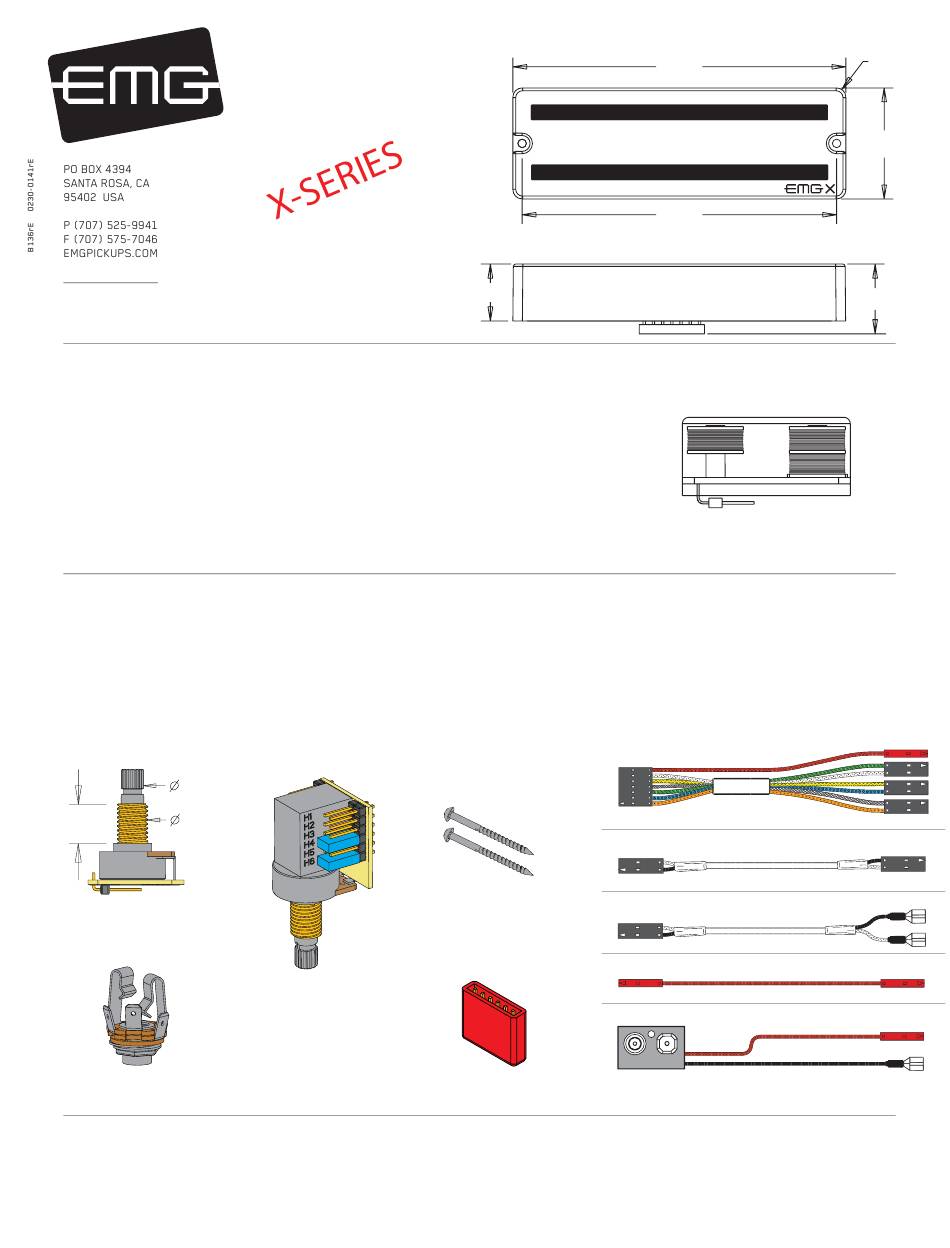

INSTALLATION INFORMATION

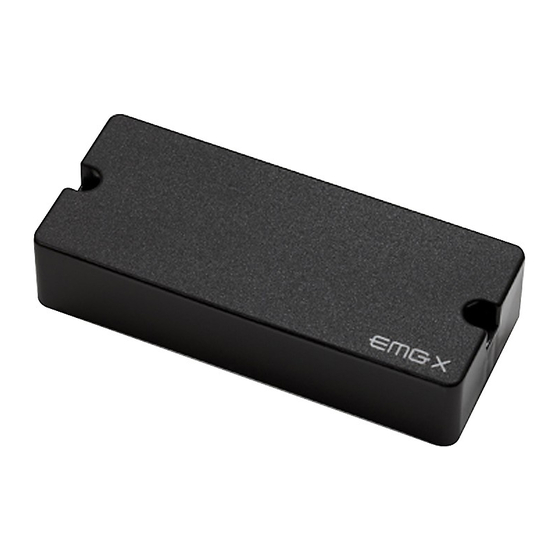

EMG MODEL: 45-TW-X
SPECIFICATIONS:
Logo Color*
Magnet Type
Resonant Frequency (KHz)
Output Voltage (String)
Output Voltage (Strum)
Output Noise (60 Hz)
Output Impedance (Kohm)
Current @9V (Microamps)
Battery Life (Hours)
Maximum Supply (Volts DC)
Installation notes:
EMG-X Series Pickups are compatible with all EMG Active Pickups. They use the connector system for easy installation, avoiding the need to solder.
Included with the TW-XSeries Pickups as the VLPF Active Tone Control. This means the Push/Pull Pot will not be used as a tone control.
When using a selection switch, refer to the included B245 Pickup Buss Instructions for a detailed explanation of the Buss.
Included with each pickup:
1 ACTIVE TONE CONTROL
.235
(6)
SPLIT
.390
.310
(8)
(10)
STEREO OUTPUT
JACK
Warranty
All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If
upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This
warranty covers only those pickups and accessories sold by authorized EMG Dealers. This warranty is not transferable.
© 2016 Copyright EMG INC. All Rights Reserved.
MODEL:
45-TW-X
Single-Coil
Copper
Ceramic/Steel
3.50
1.00
3.00
-107
2.00
160
1500
27
1 TW P/P SWITCH
W/POT (25K)
ADJUSTMENT SCREWS
MAXIMUM RECOMMEMDED STRING WIDTH 3.75" (95.25)
.125 (3.17) DIA. MOUNTING HOLES
.750 (19)
Dual-Coil
2.50
4.00
8.50
-109
2.00
TW PICKUP CABLE 15" (38cm)
2 CONNECT CABLES 5.5" (14cm)
OUTPUT CABLE 6" (15cm)
BATTERY
BUSS
SUPPLY CABLE 5.5" (14cm)
BATTERY CABLE 7" (18cm)
- 9V +
4.500
(114.3)
4.250
(108)
EMG-45-TW-X (SIDE VIEW)
C1 C2
C3
In Dual-coil mode, coils C1 and C2 are active.
In Single-coil mode, coils C2 andC3 are active.
R .125
(3.17) TYP
1.500
(38.1)
.880 (22.3)
