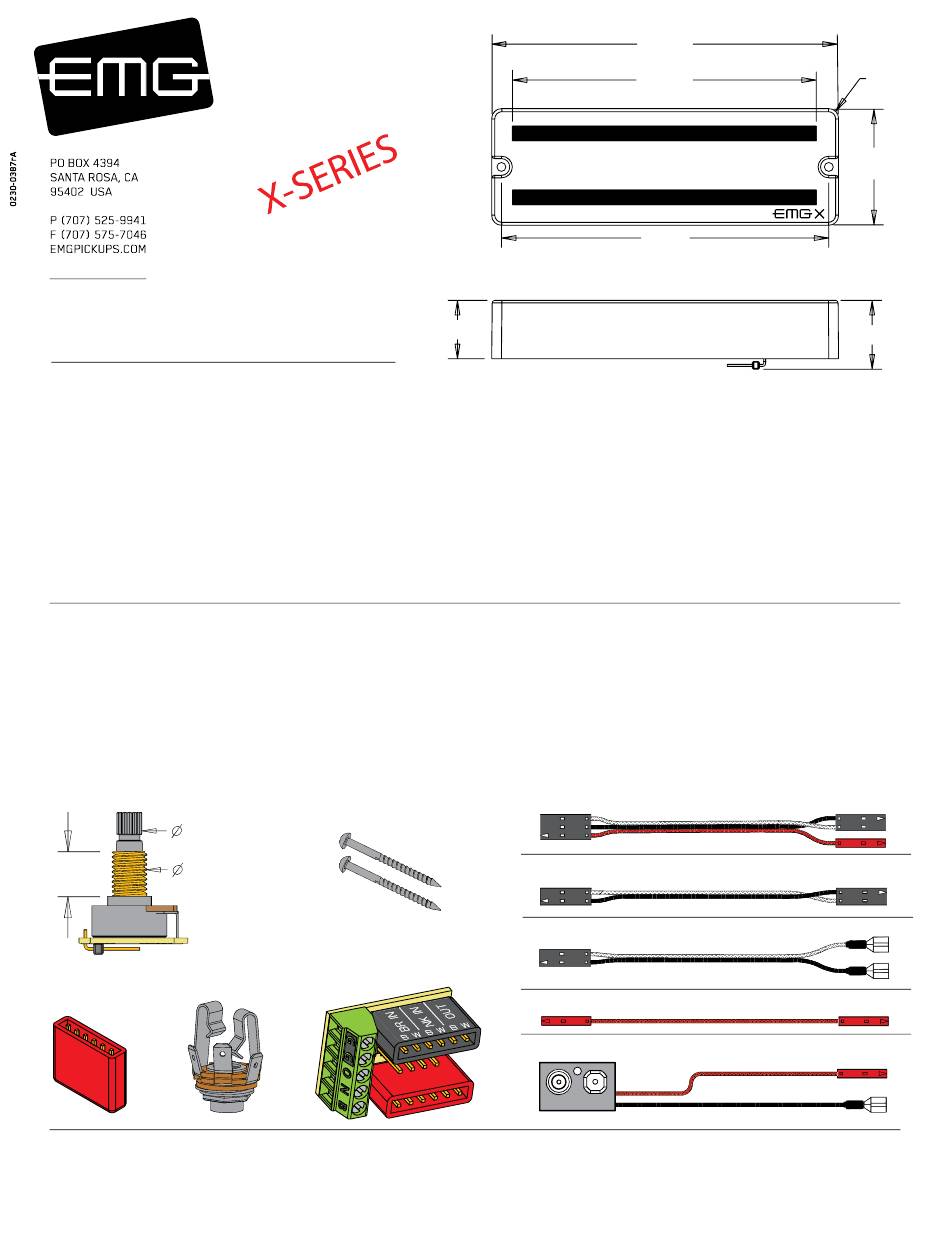

INSTALLATION INFORMATION

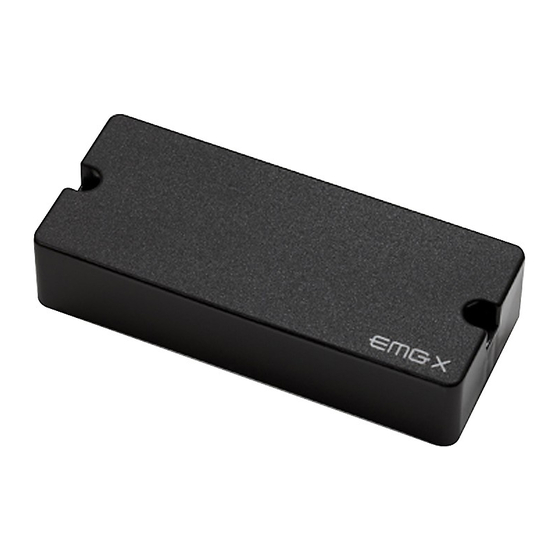

EMG MODEL: 909-X (9-STRING)
SPECIFICATIONS:
Logo Color
Magnet Type
Resonant Frequency (kHz)
Output Voltage (String)
Output Voltage (Strum)
Output Noise (dBV)
Output Impedance (kΩ)
Current @9V (Microamps)
Battery Life (Hours)†
Maximum Supply (Volts DC)
†estimate for one pickup and one active tone (VLPF) powered by a single 9V, 500mAh battery
Installation notes:
EMG-X Series Pickups are compatible with all EMG Active Pickups. The X-Series Active Tone Control (VLPF) is compatible with other EMG Pickups
and can be used in place of the passive tone control. Other EMG accessories like the EXG, SPC or RPC Controls can be added to any EMG System
without requiring an extra battery. EMG Pickups typically do not require string grounding, but you may connect your bridge ground wire to an
available "G" terminal on the B245 Pickup Buss. Use the included 25K Ohm controls for best results. If your output jack is a long panel style,
you will need a stereo version, such as the SwitchCraft 152B, and soldering will be required (see the bottom of page 2). Adjust the pickup height
to the strings, at a distance that works for you. Alternate wiring diagrams are available at emgpickups.com.
Included with each pickup:
1 VOLUME CONTROL (25K)
1 TONE CONTROL (25K)
.235
(6)
.390
.310
(8)
(10)
STEREO OUTPUT
JACK
BATTERY
BUSS
Warranty
All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If
upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This
warranty covers only those pickups and accessories sold by authorized EMG Dealers. This warranty is not transferable.
© 2024 Copyright EMG INC. All Rights Reserved.
.750 (19)
MODEL:
909-X
Gold
Alnico V
1.90
2.00
4.50
-106
2.00
400
450
27
ADJUSTMENT SCREWS
2 PICKUP IN/ OUT
BATTERY BUSS
MAXIMUM RECOMMENDED STRING WIDTH 3.50"
4.500
(114.3)
3.965
(100.7)
4.250
(108)
.125 (3.17) DIA. MOUNTING HOLES
PICKUP CABLE 15" (38cm)
2 CONNECT CABLES 5.5" (14cm)
OUTPUT CABLE 6" (15cm)
POWER SUPPLY CABLE 5.5" (14cm)
BATTERY CABLE 7" (18cm)
- 9V +
R .125
(3.17) TYP
1.500
(38.1)
.880 (22.3)
