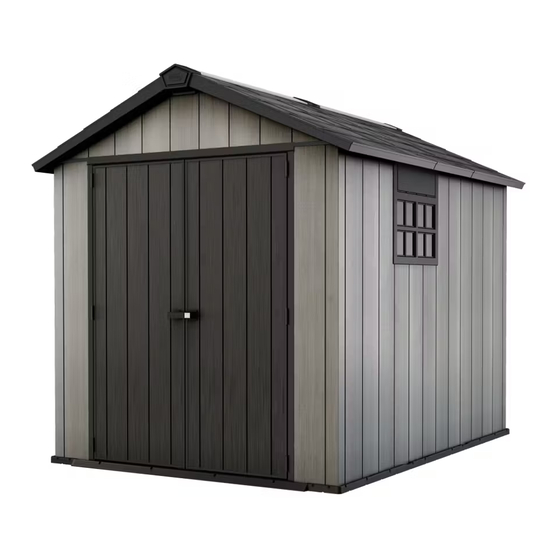

OAKLAND 759

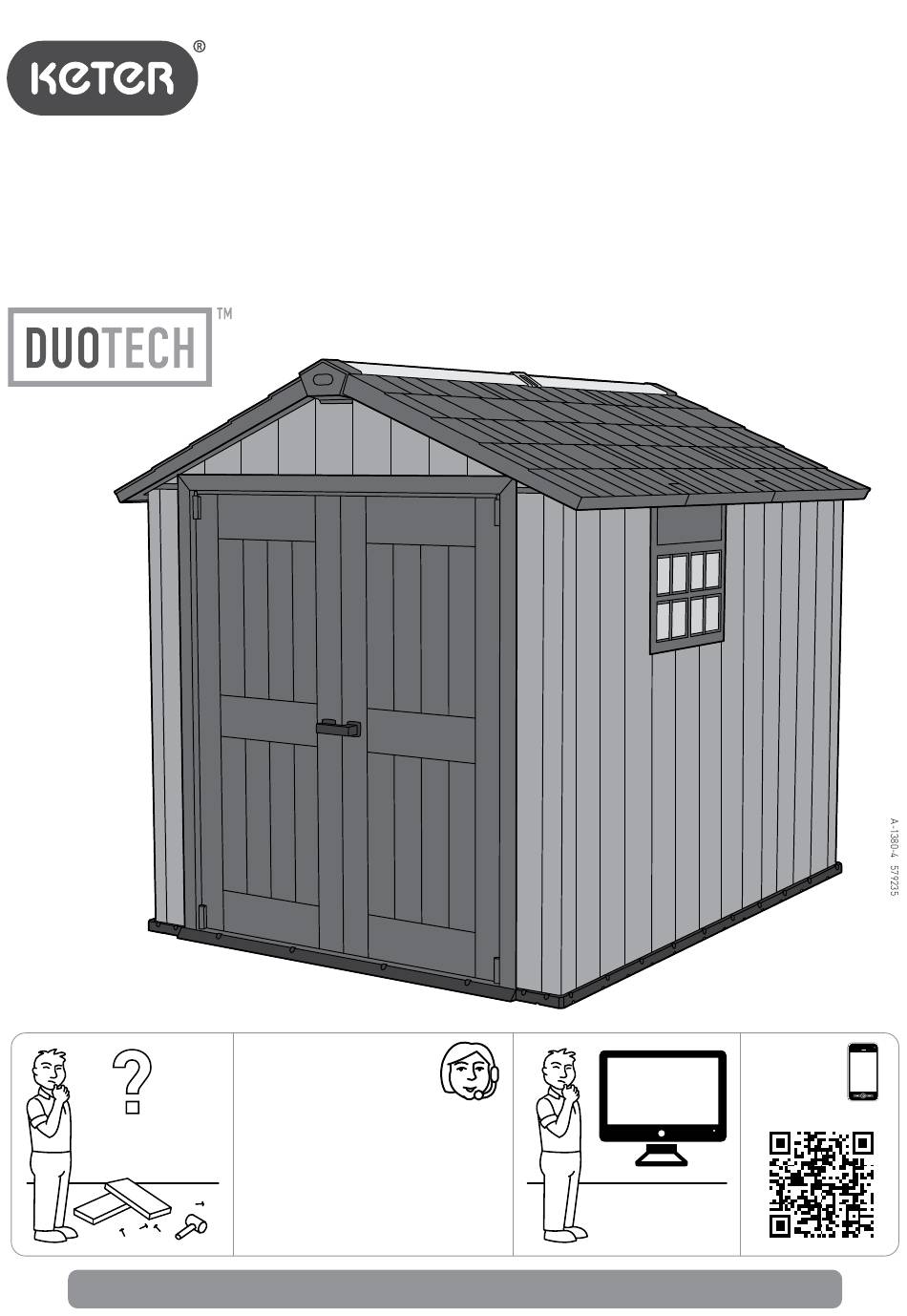

USER MANUAL | MODE D'EMPLOI | MANUAL DEL USUARIO | GEBRAUCHSANLEITUNG |

GEBRUIKSHANDLEIDING | MANUALE PER L'UTENTE | MANUAL DO UTILIZADOR

WARRANTY ACTIVATION

US, Canada:

Tel: +1-877-638-7056

Fax: +1-704-263-9271

UK: Tel: +44-121-506-0008

Fax: +44-121-422-0808

Spain: Tlf: 34-976-460-006

Fax: 34-976-460-281

Other European Countries:

Tel: +31-8847-22277, Fax: +31-1612-27002

Thank you for your purchase of the Keter shed. In order to activate your warranty,

please log onto our website and ﬁll in the form under warranty activation.

WWW.KETER.COM

SKU: 17201311

Need help?

Do you have a question about the 17201311 and is the answer not in the manual?

Questions and answers

Summary of Contents for Keter 17201311

Page 1 Spain: Tlf: 34-976-460-006 Fax: 34-976-460-281 Other European Countries: Tel: +31-8847-22277, Fax: +31-1612-27002 Thank you for your purchase of the Keter shed. In order to activate your warranty, WARRANTY ACTIVATION please log onto our website and ﬁll in the form under warranty activation.
Page 2 SITE PREPARATION | PRÉPARATION DU SITE | PREPARACIÓN DEL LUGAR | VORBEREITUNG DES AUFSTELLUNGSORTES | VOORBEREIDING VAN HET TERREIN | PREPARAZIONE DEL LUOGO DI MONTAGGIO | PREPARAÇÃO DO LOCAL Level the ground surface | Égalisez la surface du sol | Nivele la superﬁcie del suelo | Ebnen Sie die Bodenoberfläche | Maak de bodem vlak | Livella la superficie del terreno | Nivele a superfície do solo Recommendation: Construct a wooden or concrete base as a foundation | Recommandation: fabriquez une base en bois ou en béton en guise de fondation | Recomendación: construya una base de madera o de cemento a modo de cimiento |...
Page 3 BEFORE STARTING ASSEMBLY | AVANT DE COMMENCER LE MONTAGE | ANTES DE EMPEZAR EL ARMADO | VOR MONTAGEBEGINN | VOORDAT U BEGINT TE MONTEREN | PRIMA DI INIZIARE IL MONTAGGIO | ANTES DE INICIAR A MONTAGEM Read the care and safety guidelines at the end of this manual | Check to ensure that there are no missing or damaged parts BEFORE starting or arranging assembly | Review all assembly instructions | Assemble all the parts according to the directions in this manual.
Page 4 SHED PARTS | PIÈCES DE L’ABRI | PARTES DEL COBERTIZO | TEILE DES SCHUPPENS | ONDERDELEN VAN HET SCHUURTJE | COMPONENTI DEL DEPOSITO ATTREZZI | PEÇAS DO ABRIGO Remove all parts from the package(s) and spread them out on a clean work surface | Code letters are imprinted on each part for easy identiﬁcation | Retirez toutes les pièces du/des paquet(s) et étalez-les sur une surface de travail propre | Des lettres sont imprimées sur chaque pièce pour une identification facile | Saque todas las piezas del paquete o paquetes y póngalas sobre una superﬁcie de trabajo limpia | El código de letras está...
Page 5 ROOF PARTS | PIÈCES DU TOIT | PARTES DEL TECHO | DACHELEMENTE | DAKONDERDELEN | PARTI DEL TETTO | PEÇAS DO TELHADO (x1) (x1) (x1) (x1) (x1) (x1) (x2) (x2) (x2) (x2) WINDOW PARTS | PIÈCES DE LA FENÊTRE | PARTES DE LA VENTANA | FENSTERELEMENTE | VENSTERONDERDELEN | PARTI DELLA FINESTRA | PEÇAS DA JANELA (x1) (x1)
Page 6 SMALL PARTS | PETITES PIÈCES | PARTES PEQUEÑAS | KLEINTEILE | KLEINE ONDERDELEN | MINUTERIA | PEÇAS PEQUENAS (x2) (x1) (x2) (x2) (x4) (x4) (x2) (x2) (x1) (x1) (x1) (x1) (x1) (x1) (x14) (x4) (x2) (x1) (x1) (x1) (x2) SCREWS | VIS | TORNILLOS | SCHRAUBEN | SCHROEVEN | VITI | PARAFUSOS inch inch inch...
Page 7 FLOOR ASSEMBLY | MONTAGE DU SOL | ARMADO DEL PISO | MONTAGE DER BODENPLATTE | VLOERMONTAGE | MONTAGGIO DEL PAVIMENTO | MONTAGEM DO PISO (x2) sc15 (x4) sc15 x 4 sc15...
Page 8 (x2) Front | Avant | Delante | Vorderseite | Voorkant | Anteriore | Frente sc15 (x36) sc15 sc15 x 36 Front | Avant | Delante | Vorderseite | Voorkant | Anteriore | Frente...
Page 9 WALL ASSEMBLY | MONTAGE DU MUR | ARMADO DE PAREDES | MONTAGE DER WÄNDE | MONTAGE VAN DE MUREN | ASSEMBLAGGIO DELLE PARETI | MONTAGEM DA PAREDE (x1) (x1) Outside Extérieure Exterior Außenseite Buitenkant Esterno Exterior Front | Avant | Delante | Vorderseite | Voorkant | Anteriore | Frente (x1) s13b (x1)
Page 10 (x1) Front | Avant | Delante | Vorderseite | Voorkant | Anteriore | Frente (x1) s13b (x1) Faible Bajo Niedrig Laag Bassa Baixa Front | Avant | Delante | Vorderseite | Voorkant | Anteriore | Frente...
Page 11 (x2) (x2) Front | Avant | Delante | Vorderseite | Voorkant | Anteriore | Frente (x1) (x1) s13b (x1) Front | Avant | Delante | Vorderseite | Voorkant | Anteriore | Frente...
Page 12 (x1) (x1) s13b (x1) Faible Bajo Niedrig Laag Bassa Baixa Front | Avant | Delante | Vorderseite | Voorkant | Anteriore | Frente Choose the location of the window | Choisissez l’emplacement de la fenêtre | Elija dónde quiere colocar la ventana | Wählen sie aus, wo sie das fenster anbringen möchten | Kies waar u het venster wilt hebben | Scegliete dove volete posizionare la ﬁnestra | Escolha onde quer colocar a janela...
Page 13 (x2) (x1) (x1) Front | Avant | Delante | Vorderseite | Voorkant | Anteriore | Frente (x1) (x1) (x2) s13b (x2) Inside Intérieur Interior Innenseite Binnenkant Interno Interior Front | Avant | Delante | Vorderseite | Voorkant | Anteriore | Frente s13b x 2...
Page 14 (x3) (x3) (x1) (x1) s13b (x2) (x2) Inside Intérieur Interior Innenseite Binnenkant Interno Interior s13b x 2...
Page 15 WINDOW ASSEMBLY | MONTAGE DE LA FENÊTRE | VENTANA DEL TECHO | FENSTERHMONTAGE | RAAMMONTAGE | MONTAGGIO DE LA FINESTRA | MONTAGEM DO JANELA (x1) (x2) (x1) sc15 (x11) x 11 sc15...
Page 17 (x1) s13b (x1) Pre-drilled holes Trous pré-percés Agujeros pretaladrados Vorgebohrte Löcher Voorgeboorde gaten Fori prestampati Orifícios pré-perfurados s13b x 1 s13b (x1) (x1) s13b x 1...
Page 18 (x2) sc8 (x2) scn8 (x2) sc8 x 1 sc8 x 1 scn8 x 1 scn8 x 1 (x2) (x1) (x1) sc8 (x6) scn8 (x6) sc8 x 1 sc8 x 4 scn8 x 1 scn8 x 4...
Page 19 sc8 (x4) scn8 (x4) scn8 x 2 sc8 x 2 (x1) (x1) sc15 (x2) sc15 x 1...
Page 20 (x2) sc15 (x2) sc15 x 1 (x1) (x1)
Page 21 sc15 (x2) sc15 x 1 Inside Intérieur Interior Innenseite Binnenkant Interno Interior...
Page 22 (x2) (x1) sc12 (x4) sc12 x 4...
Page 23 (x2) (x1) Inside | Intérieur | Interior | Innenseite | Binnenkant | Interno | Interior...
Page 24 sc15 (x6) sc15 x 6 (x1) (x1)
Page 25 sc15 (x2) sc15 x 1...
Page 26 ROOF ASSEMBLY | MONTAGE DU TOIT | ARMADO DEL TECHO | DACHMONTAGE | DAKMONTAGE | MONTAGGIO DEL TETTO | MONTAGEM DO TELHADO s13b (x8) (x1) (x1) (x1) (x1) (x1) (x1) s13b s13b x 4...
Page 27 s13b (x2) (x2) (x2) s13b x 1 s13b Outside Extérieure Exterior Außenseite Buitenkant Esterno Exterior...
Page 28 Inside Intérieur Interior Innenseite Binnenkant Interno Interior Outside Extérieure Exterior Außenseite Buitenkant Esterno Exterior (x1) s13b (x8) s13b x 1 s13b x 7...
Page 29 (x2) (x2) (x4) sc15 (x20) sc15 sc15 sc15 sc15 sc15 x 5...
Page 30 (x1) sc15 (x1) sc15 x 1...
Page 31 (x1) sc15 (x1) sc15 x 1 sc15 (x8) sc15 x 8...
Page 32 (x1) sc15 (x1) sc15 x 1...
Page 33 sc15 (x8) sc15 x 8 (x1)
Page 34 sc15 (x1) sc15 x 1 (x1) sc15 (x1) sc15 x 1...
Page 35 sc15 (x8) sc15 x 8 (x1) sc15 (x1) sc15 x 1...
Page 36 sc15 (x8) sc15 x 8 (x4) sc15 (x16) sc15 x 4...
Page 37 sc15 (x4) (x1) sc15 x 4 (x2) (x2)
Page 38 (x2) (x1) sc15 (x3) sc15 x 3...
Page 39 (x1) sc15 (x3) sc15 x 3 sc15 (x24) sc15 x 24...
Page 40 (x4) s45b (x8) sc15 (x8) s45b x 2 sc15 x 2 sc15 (x4) s45b (x4) (x4) sc15 x 1 s45b x 1...
Page 41 s13b (x10) Pre-drilled holes Trous pré-percés Agujeros pretaladrados s13b Vorgebohrte Löcher Voorgeboorde gaten Fori prestampati Orifícios pré-perfurados s13b s13b (x49) s13b x 2 s13b Faible Bajo Niedrig Laag Bassa Baixa...
Page 42 sc15 (x6) sc15 x 6 sc12 (x32) sc12 x 32 sc12...
Page 43 DOOR ASSEMBLY | MONTAGE DE LA PORTE | ARMADO DE LA PUERTA | MONTAGE DER TÜR | DEURMONTAGE | MONTAGGIO DELLA PORTA | MONTAGEM DA PORTA (x2) sc15 (x12) sc15 x 3 (x1) (x2)
Page 44 CLICK CLICK sc15 (x36) sc15 x 18 sc15 x 18...
Page 45 (x4) sc15 (x16) sc15 x 16 (x1) (x2)
Page 46 (x1) sc15 (x2) sc15 x 2 Left Gauche Izquierdo Verließ Links Sinistra esquerdo (x1) (x1) sc15 (x1) sc15 x 1...
Page 47 (x1) (x1) sc15 (x2) sc15 x 2 (x1) (x1) sc15 (x3) sc15 x 1 sc15 x 2...
Page 48 (x2) (x2) (x2) sc15 (x6) sc15 sc15 sc15 sc15 (x1) sc15 (x8) Left Gauche Izquierdo Verließ Links Sinistra esquerdo sc15 x 8...
Page 49 Level the doors only after the shed has been placed in its ﬁnal location | Mettre à niveau les portes uniquement après que l’abri ait été placé dans son emplacement ﬁnal | Nivele las puertas solamente después de que el cobertizo haya situado en su ubicación ﬁnal | Richten Sie die Türen erst dann waagerecht aus, nachdem der Schuppen in seine endgültige Position gebracht wurde | Zet de deuren pas waterpas als het schuurtje op de uiteindelijke plek is geplaatst | Mettere a livello le porte solo al termine del montaggio del deposito attrezzi nella sua posizione ﬁnale | Nivele as portas apenas depois do abrigo estar na sua localização ﬁnal...
Page 50 * Pour votre propre sécurité, suivez bien les instructions d’utilisation de la peinture avant la première application. CASETA DE ASPECTO CEPILLADO DE KETER Esta caseta que no requiere mantenimiento, está hecha de un compuesto único que permite pintar las paredes.
Page 51 KETER SCHRANK GEBÜRSTET Dieser wartungsfreie Schrank besteht aus einer einzigartigen Verbindung, welches es ermöglicht, die gebürsteten Wandpaneele zu streichen. Sie können den Schrank in seiner ursprünglichen Farbe nutzen oder dessen Wände streichen, um ihn der Landschaft, Terrasse oder Umgebung anzupassen.
Page 52 OPTION | OPCIÓN | OPTIE | OPZION | OPçÃOE SECURING THE SHED TO A fOUNDATION Affix the shed to the foundation by drilling holes in the shed floor at the pre-marked locations and screwing it into the foundation using appropriate screws (screws not included). fIxER L’ABRI SUR UNE fONDATION Fixez l’abri à...
Page 53 CARE AND SAFETY GUIDELINES • The shed is intended for storage purposes only. It is not designed for habitation. • It is strongly recommended to secure the shed to an immovable object or anchor to the ground by drilling holes in the shed ﬂoor (at the pre-marked locations) and inserting proper screws into the ground (screws are not included).
Page 54 • Tragen Sie eine Schutzbrille und befolgen Sie bei Verwendung von Elektrowerkzeugen immer die Anweisungen des Herstellers. • Reinigen Sie den Schuppen mit einem Gartenschlauch und einem milden Reinigungsmittel. Verwenden Sie auf keinen Fall eine harte Bürste und Scheuer - oder Entfettungsmittel sowie Öl- oder Acetonhaltige Reinigungsmittel, da diese Flecken verursachen oder den Schuppen beschädigen könnten. •...
Page 55 “defects" is deﬁned as imperfections that impair the use of the Product). In such case, consumer shall let Keter or anyone on its behalf inspect and/or test the alleged defective product at Keter laboratory or in any other place at Keter sole discretion.
Page 56 O seu abrigo Keter (“o Produto”) foi fabricado manualmente a partir de materiais recicláveis de qualidade superior sob controlo e supervisão rigorosos. Em caso de ocorrência de algum problema com o Produto, por favor, faça a sua reclamação para o serviço de apoio ao cliente Keter no nosso site (www.keter.com) ou por telefone.
