DESCRIPTION
A basic property of electromagnetism is the mechanical force which exists between two
neighboring, current-carrying conductors. This was first observed by Oersted in June of
1820 and was rapidly investigated by him as well as by Ampère, Biot and Savart, so that
the theory was developed by the end of the same year. The unit of current, the Ampère,
is defined in terms of this force. However, observing the small force with simple
conductors requires large currents. The Force between Conductors Demonstrator offers
a simple, direct method for accomplishing this usually difficult and often unsatisfying

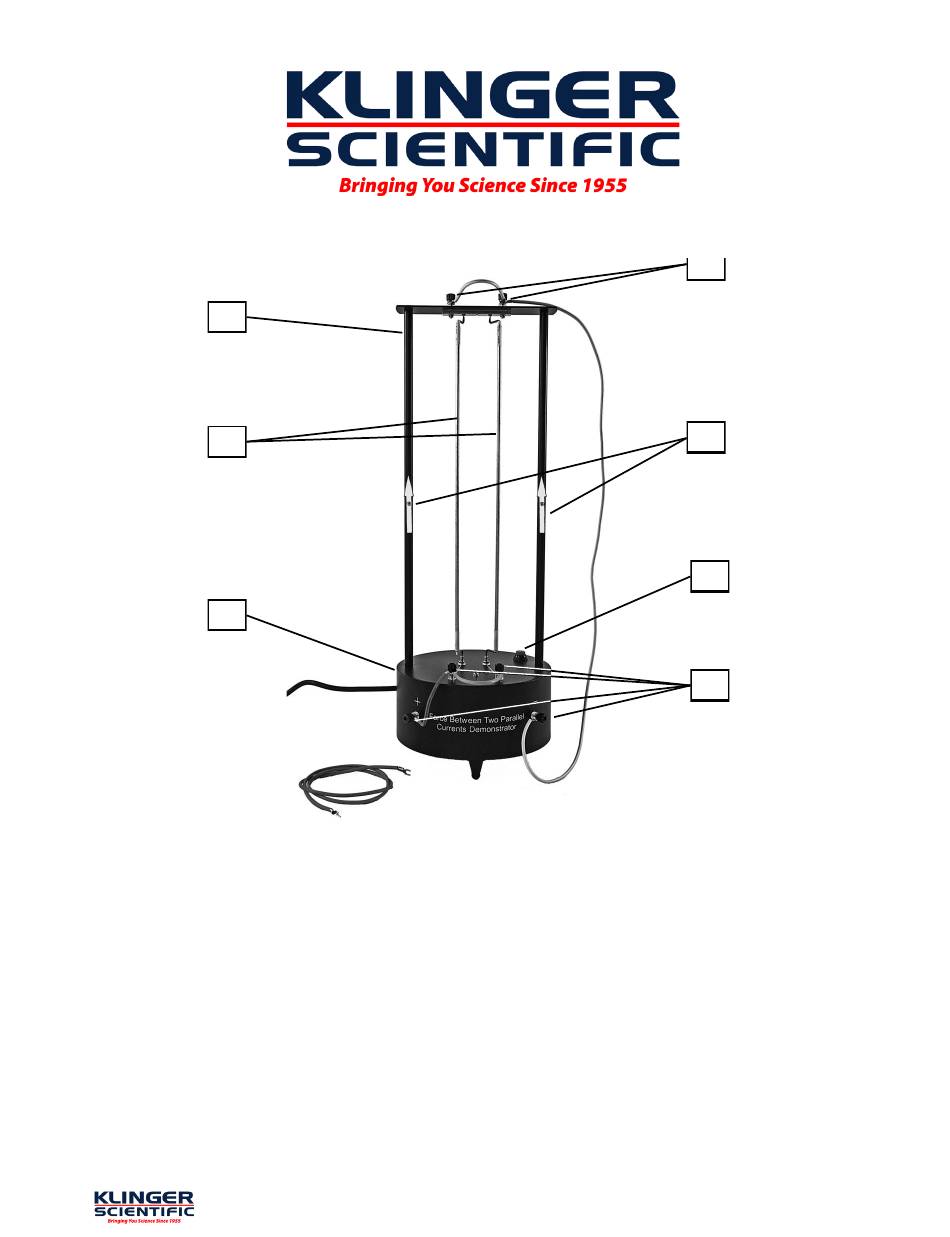

Demonstration. The device consists of a metal frame (1, Figure 1), which supports two
long straight conductors that can pivot about vertical axes (2). The base of the frame
(3) contains a power supply to energize the conductors. Binding posts (4) allow voltage
to be applied to the conductors in various configurations. A pushbutton (5) applies the
voltage, allowing a large current to flow momentarily in the conductors. Two adjustable
indicator arrows (6) show the direction of the current in each conductor. The movement
of the conductors indicates the generation of a magnetic force between them.
