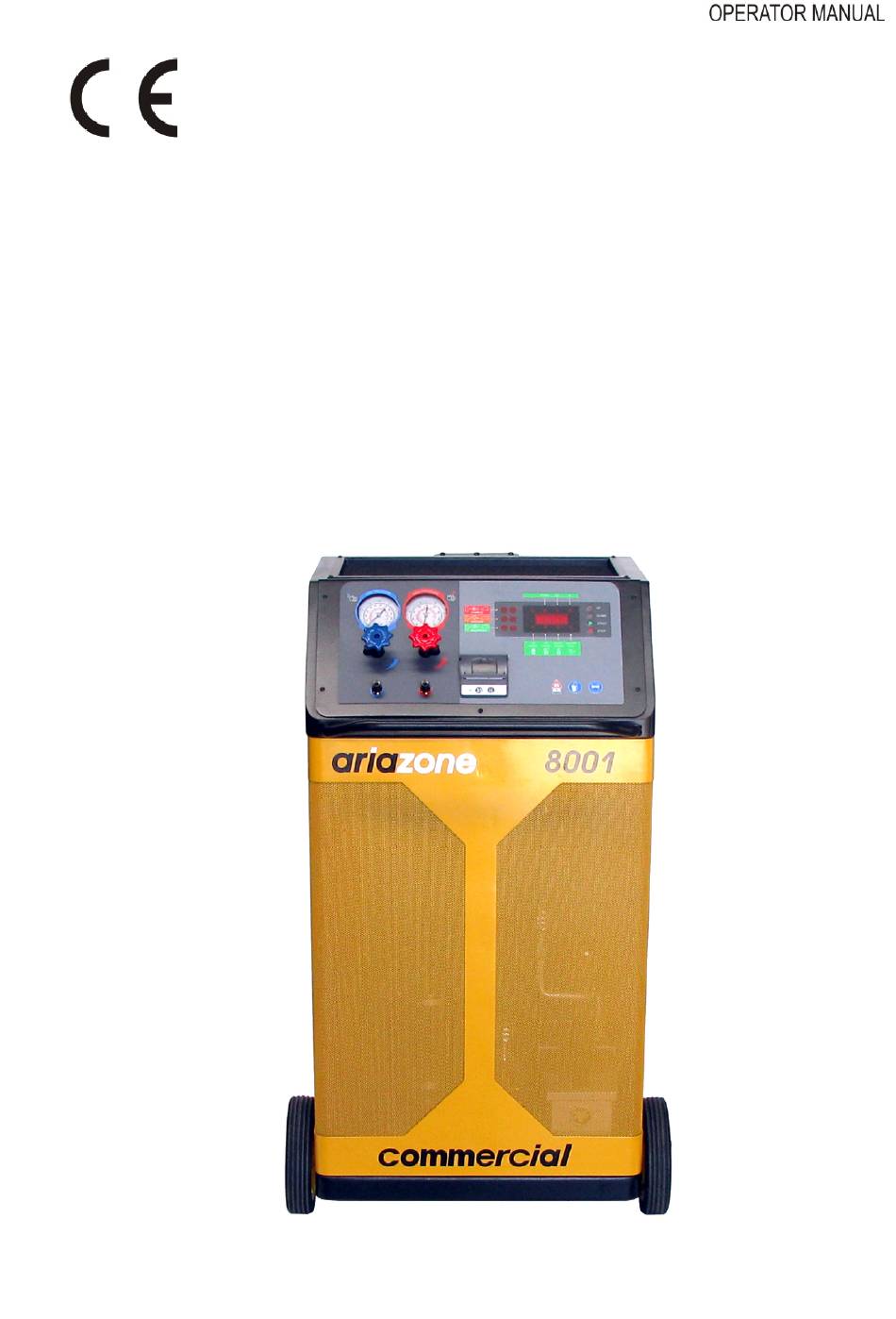

Automotive Air-Conditioning
Service Equipment
Ariazone 8001
OPERATOR MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8001 and is the answer not in the manual?

Questions and answers

Related Manuals for ariazone 8001

Summary of Contents for ariazone 8001

  • Page 1 Automotive Air-Conditioning Service Equipment Ariazone 8001 OPERATOR MANUAL...

  • Page 2: Table Of Contents

    Contents Page 1. Introduction......................3 2. Safety ........................4 3. Technical Features ....................5 4. Main Parts & Features ................... 6 5. Preparing the machine for the first use ..............8 6. Display descriptions ....................9 7. Refrigerant Cylinder Filling Procedure..............10 8.

  • Page 3: Introduction

    1. Introduction Ariazone 8001 - Automotive A/C Service Station (Recovery, Recycling, Evacuation and Charging System) is a user-friendly tool specifically designed for the automotive air-conditioning technicians, to carry out the following functions: - Testing air conditioning system - Recover and recycle refrigerant.
  • Page 4 2. Important Safety Information's_ This unit is extremely simple and reliable in selecting and performing all its functions. Therefore, the user is not exposed to any risk, if the general safety guidelines reported below are followed, in association with proper use and maintenance of the unit (improper use and maintenance will reduce the safety of the unit).

  • Page 5: Technical Features

    3. Technical Features Refrigerant ........R134 a Electronic refrigerant scale ....+/- 10 g resolution Load cell .......... 2 x 60kg with 150% overload capacity LP and HP gauges ......AI-D 68 mm kl.1.0 Recovery cylinder ......45 kg Recovery pump ........ 26cm with liquid and thermal protection Recovery rate ........

  • Page 6: Main Parts & Features

    4. Main Parts & Features 1. Analog Gauges - Two large analogue gauges display suction and discharge pressures, which are mounted on the front panel for easy viewing by the operator. Pressures are displayed in Bar & PSI and temperatures in degrees Celsius. 2.
  • Page 7 7. New Oil Storage Reservoir - A vessel of 250ml (8.75oz) is mounted on the left rear of the unit to allow the operator to inject oil into air conditioning system automatically. 8. Refrigerant Cylinder - 27 kg capacity, secured with the strap on the platform 9.

  • Page 8: Preparing The Machine For The First Use

    5. Preparing the machine for the first use Perform the following steps to prepare the unit before the first use. 1. Remove the nylon wrapped and styrofoam insert behind the cylinder (8). 2. Check to ensure that all of the accessory components are present: 3.

  • Page 9: Display Descriptions

    6. Display descriptions After switching ON the machine, numerical display shows CYL WEIGHT (the amount of the refrigerant in the cylinder) in KG or LB (upon the unit set up). R134a should be selected also. HIgH PrES - Excess pressure in refrigerant cylinder TArE - Calibrating the weight display to read -0.00 with an empty cylinder on platform.

  • Page 10: Refrigerant Cylinder Filling Procedure

    7. Refrigerant Cylinder Filling Procedure The cylinder (12) may be filled with refrigerant by following procedures. Using refillable cylinder procedure Have cylinder sitting upright, connect the suction (blue) service hose (5) to storage cylinder liquid valve by using the refrigerant cylinder adapter (12) supplied, open liquid valve on storage cylinder, open service hose quick coupling (5) and console blue hand valve (4) ...

  • Page 11: Connecting To The A/C System

    8. Connecting to the Automotive A/C System Use the service hose (5) quick couplings to connect the hoses to the A/C system service ports, bearing in mind that BLUE must be connected to the low-pressure (suction) side and RED to high pressure (discharge).

  • Page 12: Recovery & Recycling Mode

    9. Recovery & Recycling Mode The purpose of the Recovery & Recycling mode is to recover refrigerant from the air conditioning system, which will condense, purify and store the liquid refrigerant in the unit cylinder ready for re-use. To initiate the Recovery mode, press the 'UP' key once, followed by 'START' on the console. Display shows (- - - -).
  • Page 13 If at the end of Recovery process a sufficient vacuum has been maintained, the unit will stop, the display (2) will indicate 'done' and the amount of refrigerant recovered will be displayed in (kg or lb) depending on the operator’s selection. Press 'STOP' on the console, the unit will display "busy"...

  • Page 14: Evacuation Mode

    10. Evacuation Mode In the evacuation mode the air and moisture in the air conditioning system is removed and exhausted to the atmosphere. The evacuation mode runs for a predetermined time selected by the operator. To initiate evacuation mode, press the 'UP' key twice, followed by the 'START' key. Select the desired evacuation duration by pressing the 'UP' key to increase or 'DOWN' key to decrease time duration.

  • Page 15: New Oil Injection Mode

    11. New Oil and/or UV dye Injection Mode The purpose of the oil injection mode is to batch a user-defined quantity of refrigerant oil (or UV dye) from the graduate reservoir on the unit to the vehicle air-conditioning system. Important: The unit requires that the air conditioning system has previously been evacuated to a maximum vacuum before this function can be carried out.

  • Page 16: Refrigerant Charge Mode

    12. Refrigerant Charge Mode The purpose of the refrigerant charge mode is to batch a user- defined weight of refrigerant into the air-conditioning system. To initiate charging mode, press the 'UP' key three times (or DOWN once), followed by the 'START' key.

  • Page 17: Cylinder Air Purge

    13. Cylinder Air Purge Air is not good for A/C system because it is a noncondensable gas. It is possible to get inside the cylinder during the proces of recovery of contaminated a/c system (system which leaks or not properly evacuated). To check the cylinder for air contamination, a technician should read the pressure on the refrigerant in storage cylinder to see if it exceeds the maximum allowable pressure for a given ambient temperature.

  • Page 18: Service Procedure

    100 Hours Vacuum Pump Oil Drain and refill 100 Hours Gauges Check zero setting 100 Hours Weight Platform Test the calibration 100 Hours Compressor Oil Drain and re-fill 300 Hours Oil Separator Replace Ariazone International recommends a record of service for this machine to be kept.
  • Page 19 (m) Procedure to fill recovery pump with oil turn machine on and select recovery function, Using a rubber hose and funnel fill the recovery pump with 850ml of Ariazone compressor lubricant through the test service port the oil will be drawn through while the pump is running.
  • Page 20 Vic. 3043, AUSTRALIA Tel: +613 9338 7522 e-mail: sales@ariazone.com www.ariazone.com Hereby declares that the product: Ariazone 8001 - Automotive A/C Service Station Meets all requirements of European Directives: 2006/95/EC - Low Voltage Directive 2004/108/EC - Electromagnetic Compatibility 98/37/EC - Machine Directive and subsequent amendments entered in force to the date of declaration.
