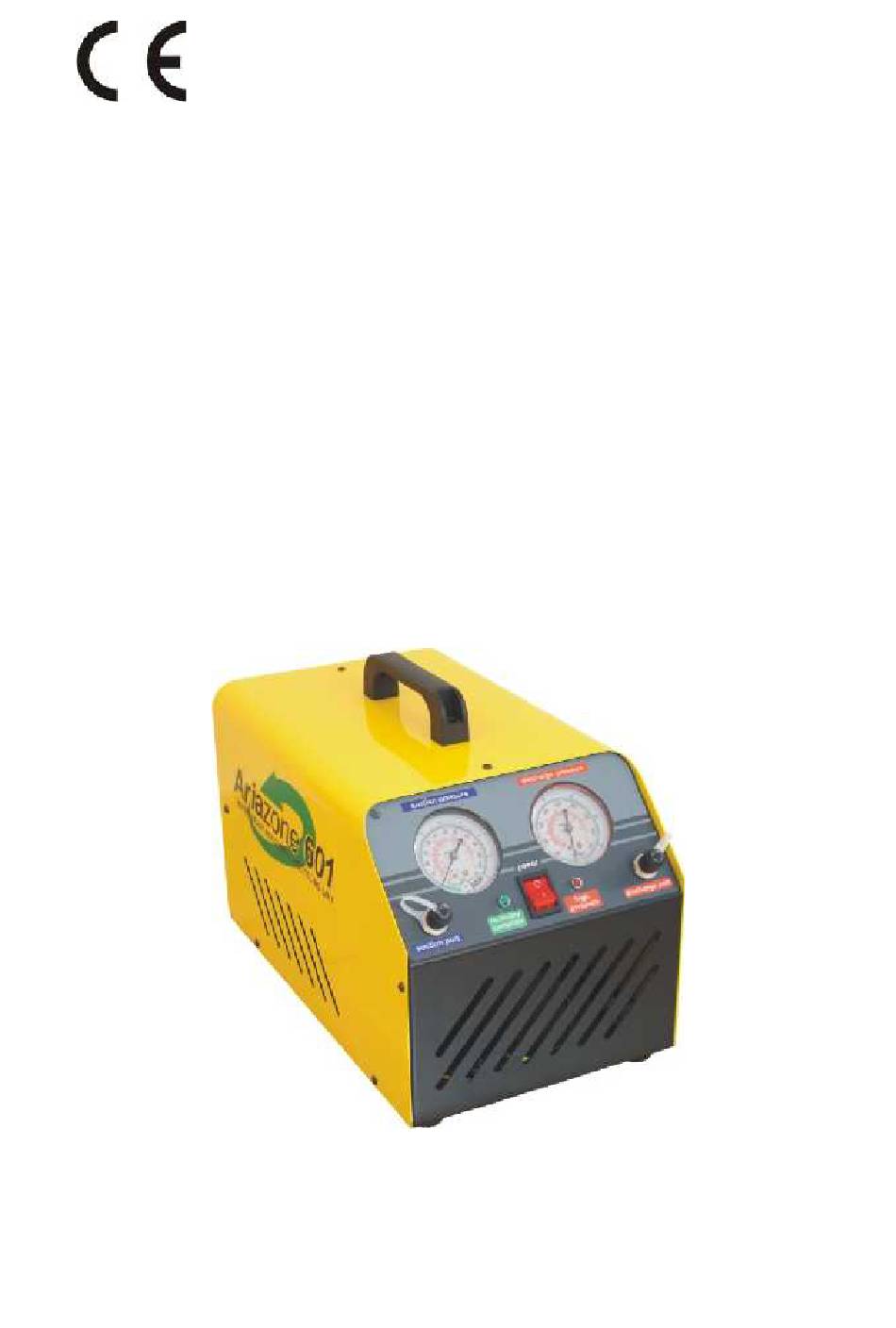

- Page 1 Automotive Air-Conditioning Service Equipment Ariazone 601HD Refrigerant Recovery&Recycling unit OPERATOR MANUAL...
- Page 2 - A scale must be used to avoid overfilling the storage cylinder. Cylinder is full at 80% of volume. - Do not exceed the working pressure of the recovery cylinder. Your Ariazone 601 is not supplied with a recovery cylinder, it requires the use of cylinders with a minimum of 350psi working pressure.
- Page 3 2. Introduction The Ariazone 601 is a lightweight refrigerant recovery & recycling system for the onsite mobile technician or small workshop operator. This system has been designed to be very user friendly and efficient for every user. Simply connect the Ariazone to the air conditioning system, switch on and walk away.
- Page 4 4. Main parts of the unit 1. Suction pressure gauge (Bar & PSI) 2. Discharge pressure gauge (Bar & PSI) 3. Suction port (inlet) 4. Discharge port (outlet) 5. Main power switch 6. Led announcer for recovery completion (recovery complete) 7.
- Page 5 6. Connect the suction hose (1/4" SAE hose fitting with core depressor) to the system you are servicing. Ariazone 601 will recover vapor & liquid by using hand manifold. (when recovering from both sides of the system, recovery time is decreased).
- Page 6 6. Self Purge Procedure 1. Connect discharge (red) hose on inlet (suction) port. Open the ball valve on the hose. The pressure from discharge side will shown to suction gauge (input). 2. Connect the self-discharge hose provided to the recovery cylinder as per diagram below.
- Page 7 - If the pressure on the discharge side of the Ariazone 601 will exceed 24 bar, the unit will automatically stop and the red led announcer will indicate "high pressure".
- Page 8 9. Diagram for Push/Pull Method Push/Pull method only works with large system where the liquid is readily accessible. Do not use this method on systems that contain less than 10kg (20lb) as it may not work. 1. Open Input and Output valves and start the machine. 2.
- Page 9 ~ 100 working hours Gauges Test calibration The filter drier in Ariazone 601 should be replaced every 50- 60kg of refrigerant recovered. To replace filter dryer, remove cover (8). Carefully, by using two spanners, remove filter and replace with new filter. Pay attention on "Flow direction" of the filter and the arrow on the sticker located on chassis behind the filter.
-
Page 10: Ec Declaration Of Conformity
15-ti Korpus bb., 6000 Ohrid, MACEDONIA Hereby declares that the product: Ariazone 601HD / Refrigerant Recovery& Recycling unit Meets all requirements of European Directives: 2006/95/EC (ex 73/23/EEC) Low Voltage Directive 98/37/EC Machine Directive and subsequent amendments entered in force to the date of declaration.
