Survey setup

SGWE test expander
1. Place the SGWE test expander in the exact location of the installation site where you want to install a wireless system central or relay node
(i.e. VW2W100 wire to wireless translator, SGWE wireless expander or a SGCWE100 wireless conventional system expander module).
2. Connect the power supplier's output to the SGWE; the socket for the connector is located on the top side of the SGWE (picture 3a).
3. Connect the power supplier to the household mains line.

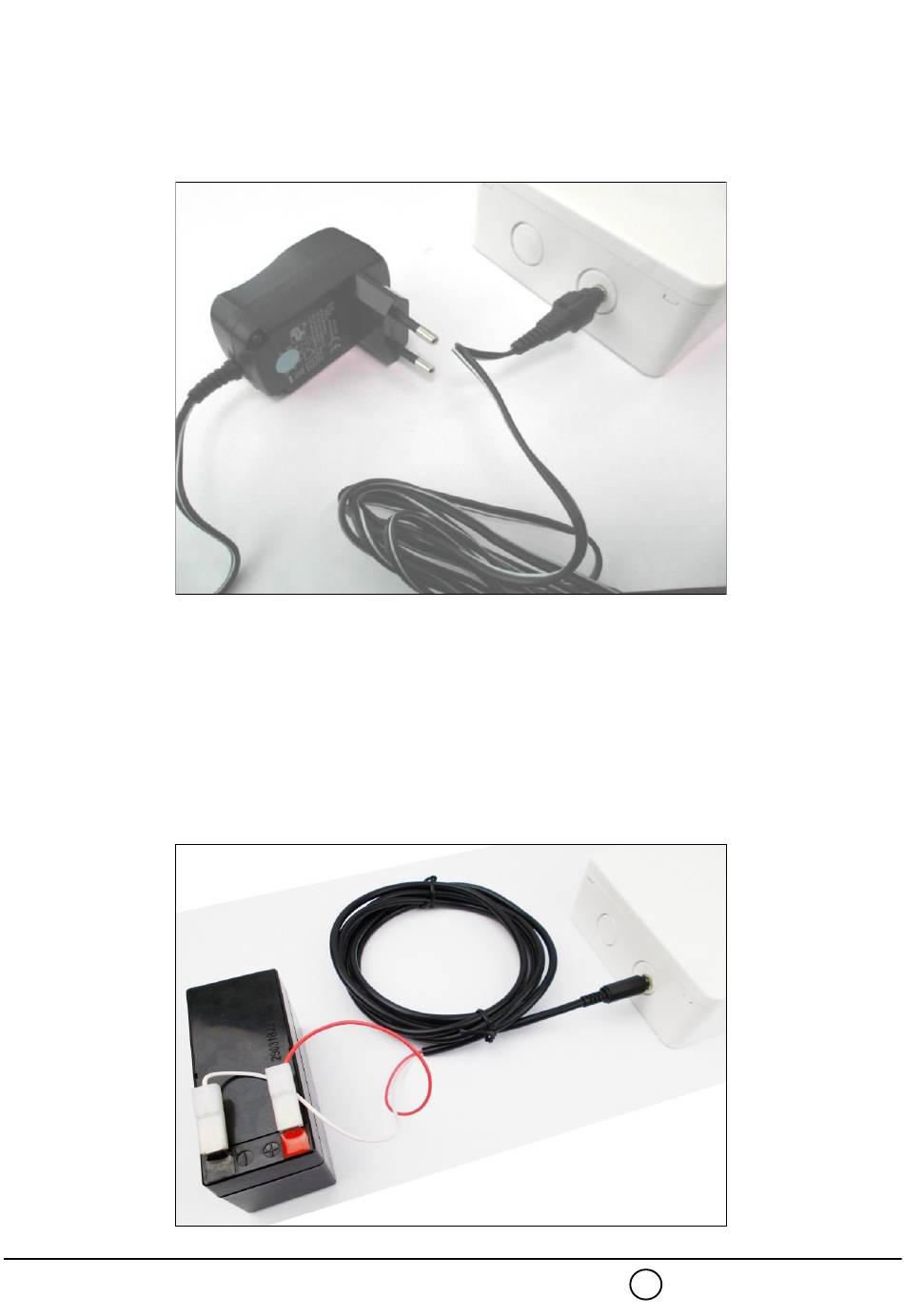

Picture 3a
Alternatively, you can connect the SGWE test expander to a suitable power supply battery through the battery connector cable (picture 3b).
Battery's suggested specifications are given at the beginning of this manual.
1. Place the SGWE test expander in the exact location of the installation site where you want to install a wireless system central or relay node
(i.e. VW2W100 wire to wireless translator, SGWE wireless expander or a SGCWE100 wireless conventional system expander module).
2. Connect the red wire push-on terminal to the battery's positive pole.
3. Connect the white wire's push-on terminal to the battery's negative pole.
4. Insert the battery connector's jack plug into the SGWE power supply socket; this socket is located on the top side of the SGWE.
SGWE is now ready for
Picture 3b
