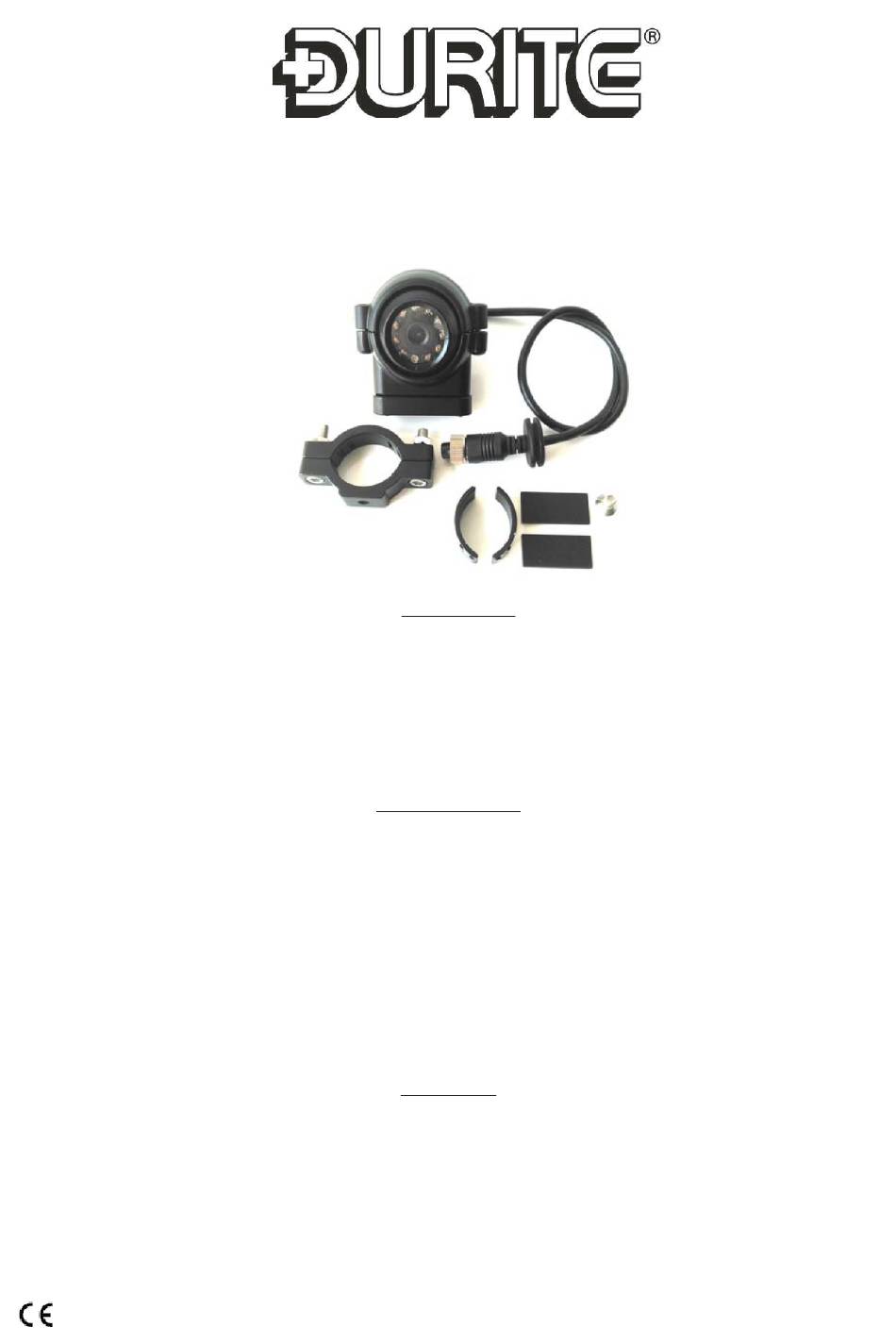

Durite 0-776-46 Quick Start Manual

Durite 0-776-46 Quick Start Manual

I/r wing mirror arm side mount colour cctv camera (fits arm 25-40mm) - mirror image

Advertisement

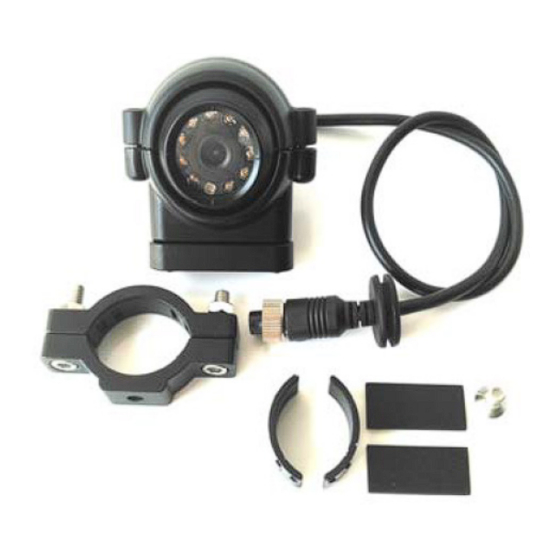

I/R Wing Mirror Arm Side Mount Colour CCTV Cam-
era (fits arm 25-40mm) - Mirror Image
Part 0-776-46

WARNINGS

Before using this unit please read these instructions carefully. Take special care to follow
the warnings and safety suggestions listed below. Keep these instructions for future refer-
ence.
There are no user-serviceable parts within the unit, refer servicing to qualified service
personnel.

PRECAUTIONS

• Please ensure you are familiar and comply with local traffic and driving regulations.
• Connection - The camera should only be connected to a Durite cctv system.
• Heat - Do not install the camera near heat sources.
• Mounting - Ensure the camera is facing the desired direction before fixing the camera
base. If fixing to isolated return chassis the camera bracket should be isolated from the
vehicle chassis. Thread-lock should be used on the nuts and bolts to prevent them
loosening due to vibration from the vehicle.
• Service - The user should not attempt to service these units beyond that described in these
instructions. All other servicing should be referred to an authorized service technician.

GENERAL

The camera has a CCD image sensor which gives a high quality picture and its solid state
circuitry provides extremely long life. Compact size and single connection make it easy
to install. Automatic gain control (AGC) provides a clear image in both strong sunlight
and low light conditions, if lighting conditions fall below a set level the Infra-red LEDs will
illuminate.It is recommended that all camera lead connections are additionally sealed by ei-
ther wrapping with a suitable tape or application of heat shrink sleeving. It is recommend to
connect the system and test before fixing to ensure the correct field of view is displayed.
0-776-46-LEAF
www.durite.co.uk
