Durite 0-776-09 Instructions

Side mount infra-red colour cctv camera 720p ahd high definition

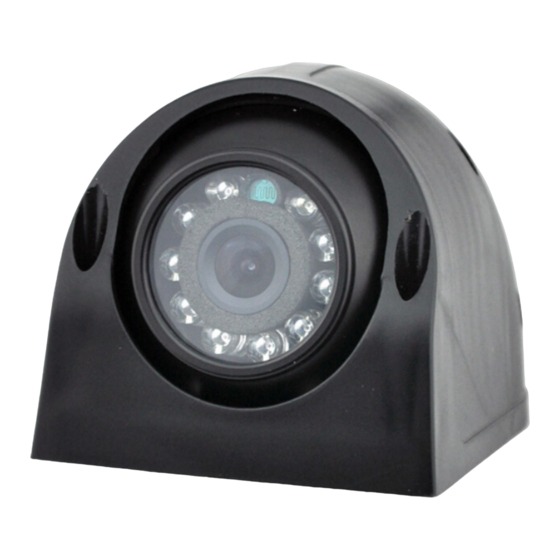

Side Mount Infra-Red Colour CCTV Camera

720P AHD High Definition.

Part No. 0-776-09

WARNINGS

Before using this unit please read these instructions carefully. Take special care to follow

the warnings and safety suggestions listed below. Keep these instructions for future refer-

ence.

There are no user-serviceable parts within the unit, refer servicing to qualified service

personnel.

• Please ensure you are familiar and comply with local traffic and driving regulations.

• Connection - The camera should only be connected to a Durite cctv system.

• Heat - Do not install the camera near heat sources.

• Mounting - Ensure the camera is facing the desired direction before fixing the camera

base. If fixing to isolated return chassis the camera bracket should be isolated from the

vehicle chassis.

• Service - The user should not attempt to service these units beyond that described in these

instructions. All other servicing should be referred to an authorised service technician.

The camera has a CMOS image sensor which gives a high quality picture and its solid state

circuitry provides extremely long life. Compact size and single connection make it easy

to install. Automatic gain control (AGC) provides a clear image in both strong sunlight

and low light conditions, if lighting conditions fall below a set level the Infra-red LEDs will

illuminate.It is recommended that all camera lead connections are additionally sealed by ei-

ther wrapping with a suitable tape or application of heat shrink sleeving. It is recommend to

connect the system and test before fixing to ensure the correct field of view is displayed.

0-776-09-LEAF

www.durite.co.uk

Table of Contents

Do you have a question about the 0-776-09 and is the answer not in the manual?

Page 1 PRECAUTIONS • Please ensure you are familiar and comply with local traffic and driving regulations. • Connection - The camera should only be connected to a Durite cctv system. • Heat - Do not install the camera near heat sources.
Page 2 Image Sensor........1/3" Aptina CMOS Voltage..........12VDC Resolution..........1280*960 (1.2M Pixels) 720P AHD Min Illumination........0Lux (IR on) Night Vision Distance......5Metres View Angle...........120˚ No. IR LED's.........8 Current Draw........200mA Cable Length........80cm IP Rating..........IP68 Operation Temperature.......-20˚C ~ +70˚C Weight..........250g Dimensions..........Please see above Certificates...........E Marked 0-776-09-LEAF www.durite.co.uk...
