Durite 0-776-04 Instructions

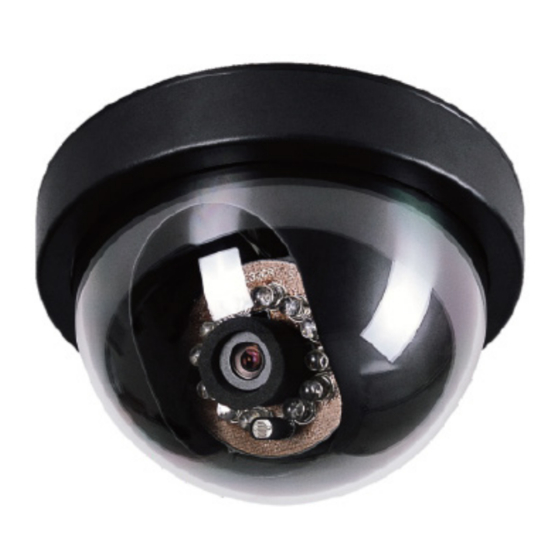

12vdc infra red colour cctv dome camera

12VDC Infra Red Colour CCTV Dome Camera

Part 0-776-04

WARNINGS

Before using this unit please read these instructions carefully. Take special care to follow

the warnings and safety suggestions listed below. Keep these instructions for future refer-

ence.

There are no user-serviceable parts within the unit, refer servicing to qualified service

personnel.

• Please ensure you are familiar and comply with local traffic and driving regulations.

• Connection - The camera should only be connected to a Durite cctv system.

• Heat - Do not install the camera near heat sources.

• Mounting - Ensure the camera is facing the desired direction before fixing the camera

base. If fixing to isolated return chassis the camera bracket should be isolated from the

vehicle chassis.

• Service - The user should not attempt to service these units beyond that described in these

instructions. All other servicing should be referred to an authorised service technician.

The camera has a CCD image sensor which gives a high quality picture and its solid state

circuitry provides extremely long life. Compact size and single connection make it easy

to install. Automatic gain control (AGC) provides a clear image in both strong sunlight

and low light conditions, if lighting conditions fall below a set level the Infra-red LEDs will

illuminate. It is recommended that all camera lead connections are additionally sealed by

either wrapping with a suitable tape or application of heat shrink sleeving. It is recommend

to connect the system and test before fixing to ensure the correct field of view is displayed.

0-776-04-LEAF

www.durite.co.uk

Table of Contents

Do you have a question about the 0-776-04 and is the answer not in the manual?

Page 1 PRECAUTIONS • Please ensure you are familiar and comply with local traffic and driving regulations. • Connection - The camera should only be connected to a Durite cctv system. • Heat - Do not install the camera near heat sources.
Page 2 View Angle........Horizontal(110°) ; Vertical ( 90° ) TV System........PAL or NTSC for option Waterproof rating.......IP65 Image Lens........2.9mm Min illumination......0.1 Lux Night Vision.........7M (12LED's) Power consumption....2W @ 12.6VDC Power voltage......DC 12V S/N Ratio........>48db( AGC-OFF) Connector type......4 PIN aviation Operating Temp......-20°C~60°C Storage T emp......-40°C~70°C Weight..........0.250Kg Certificates........E Marked 0-776-04-LEAF www.durite.co.uk...
