Durite 0-776-14 Instructions

Rear view twin ccd i/r colour cctv camera

Rear View Twin CCD I/R Colour CCTV Camera

Before using this unit please read these instructions carefully. Take special care to follow

the warnings and safety suggestions listed below. Keep these instructions for future refer-

ence.

There are no user-serviceable parts within the unit, refer servicing to qualified service

personnel.

• Please ensure you are familiar and comply with local traffic and driving regulations.

• Connection - The camera should only be connected to a Durite cctv system.

• Heat - Do not install the camera near heat sources.

• Mounting - Ensure the camera is facing the desired direction before fixing the camera

base. If fixing to isolated return chassis the camera bracket should be isolated from the

vehicle chassis.

• Service - The user should not attempt to service these units beyond that described in these

instructions. All other servicing should be referred to an authorised service technician.

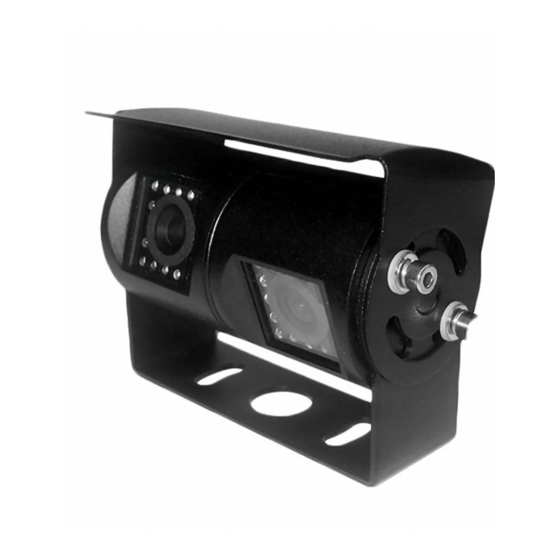

The camera has two CCD image sensors which gives a high quality picture and its solid

state circuitry provides extremely long life. Compact size and single connection make it

easy to install. Automatic gain control (AGC) provides a clear image in both strong sunlight

and low light conditions, if lighting conditions fall below a set level the Infra-red LEDs will

illuminate. It is recommended that all camera lead connections are additionally sealed by

either wrapping with a suitable tape or application of heat shrink sleeving. It is recommend

to connect the system and test before fixing to ensure the correct field of view is displayed.

Part 0-776-14

WARNINGS

www.durite.co.uk

0-776-14-LEAF

Table of Contents

Do you have a question about the 0-776-14 and is the answer not in the manual?

Page 1 PRECAUTIONS • Please ensure you are familiar and comply with local traffic and driving regulations. • Connection - The camera should only be connected to a Durite cctv system. • Heat - Do not install the camera near heat sources.
Page 2 Waterproof rating......IP68 Image Lens........2.5mm Reverse ........8.0mm Driving Min illumination......0 Lux Night Vision........20ft Electronic Shutter...... 1-1/10000 seconds Current consumption....Max.120mA Video output.......1.0vp-p, 75ohm Power voltage......DC 12V S/N Ratio........Better than 48db( AGC-OFF) Connector type......4 PIN aviation Operating Temp......-20°C~70°C,RH95% MAX Storage T emp......-30°C~75°C,RH95% MAX Certificates........E Marked 0-776-14-LEAF www.durite.co.uk...
