Durite 0-776-72 Quick Start Manual

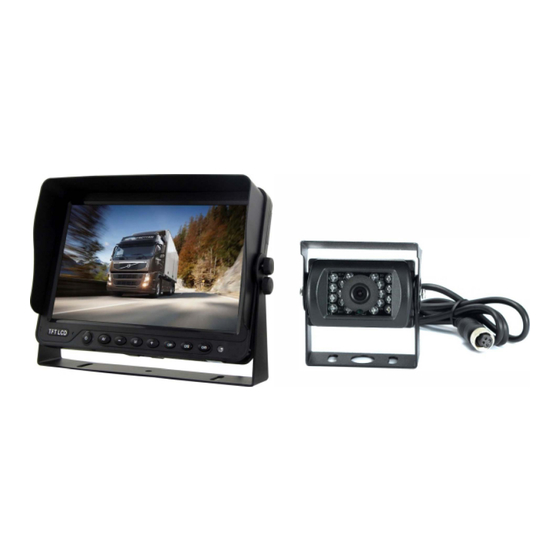

7" COLOUR AHD CCTV Kit with 3 Channel Input
Before using this unit please read these instructions carefully. Take special care to follow
the warnings indicated on the unit itself as well as the safety suggestions listed below.
Keep these instructions for future reference
HIGH VOLTAGES WITHIN THIS EQUIPMENT. RISK OF ELECTRIC SHOCK, DO
�
, /. NOT RE-MOVE COVER
WARNING:
The vehicle safety vision system is designed to be used with, not
A. instead of other viewing aids in your vehicle. The manufacturer shall not be
Lil, held liable for any accidents which occur while operating this system.
•
Please ensure you are familiar and comply with local traffic and driving regulations.
•
Power Source - The monitor shOtJd be connected to a 12 - 24 volt DC p(Mler supply only.
•
Wat.er and Moisture - Do not use the monitor where it may be subject to water ingress or excesslve
moisture. Do not use outside the vehicle unp-otected.
•
Heat - Do not Install the ma,itor or camera near a direct heat sources.
•
Ventilation - The monitor should be situa1ed to slow free droulat.lon of air.
•
Foreign Material - Care shotJd be taken so that. objects do not fall onto or Into, and that. liquids are not
splled on the moritor.
•
tvlounting Surface - The monitor shotJd be mounted to a strong secure su-face.
Replacement Parts - Use only manufacturers r�lacement specified parts. Unauthorised substitutions may
restJt In fire risk, electric shock or other hazards and wil void the warranty
•
Service - The user should not attempt to service this urits beyaid that described in the operating
lnstructlais. There are no user-serviceatfe parts within the unit.
•
When frtting to an isolated earth vehide the camera and maiitor bracket must also be
Isolation -
electrically isolated from the vehide ctlassis. If Interference is experienced on earthed ohassls vehides
electrically isolating the camera from the chassis should eliminate the in1erference.
•
screen Protective Flm - Remove the LCD sa-een protective plastic cover
CE
12-24VDC
Part 0-776-72
WARNIN G S
www.durite.co.uk
before use.
l
0-776-72-LEAF
