ASSEMBLY & OPERATING INSTRUCTIONS

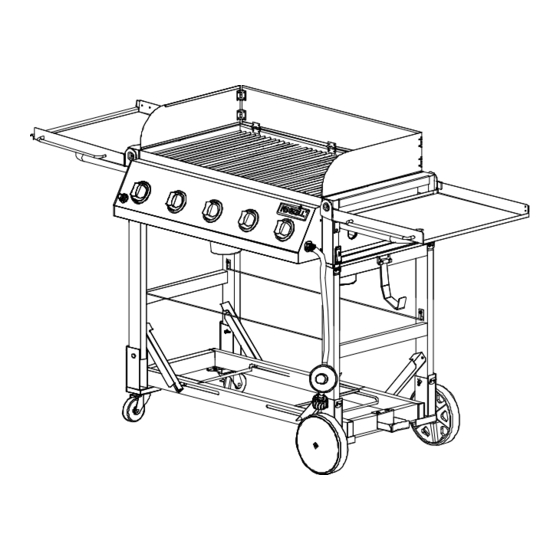

Model: 720-0744A
FOR PROPANE GAS USE ONLY
FOR OUTDOOR USE ONLY
This instructions manual contains important information necessary for the proper
assembly and safe use of the appliance.
Read and follow all warnings and instructions before assembling and using the
appliance
Follow all warnings and instructions when using the appliance
Keep this manual for future reference
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-866-984-7455, 8 a.m.-5 p.m., PST, Monday-Friday.
1
