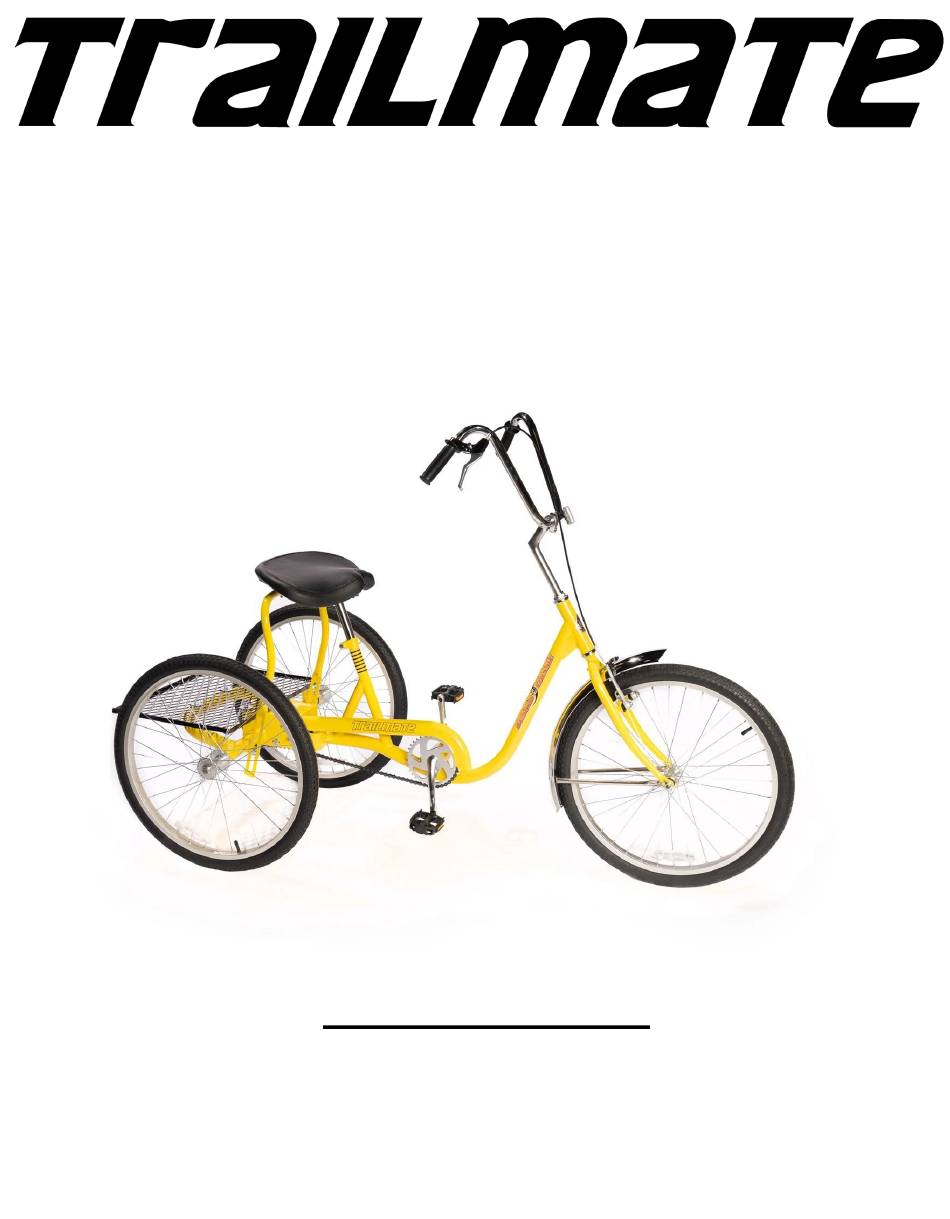

- Page 1 Desoto Hauler Owner’s Guide DESOTO HAULER...
- Page 3 24" DESOTO HAULER ITEM PART DESCRIPTION ITEM PART DESCRIPTION 11871 REFLECTOR KIT TRIKE 18867 FORK WHEEL RETAINER 12199 SCREW 14 x 3/4 20576 FENDER BRACE SCREW 20080 PLATFORM REAR 20158 WHEEL 24 x 1.75 ALLOY FRONT 12102 FLAG SAFETY W/POLE...
- Page 4 DESOTO HAULER ASSEMBLY INSTRUCTIONS 1. Preparation 4. Frame Assembly Remove parts from carton. Check air Slide front frame Desoto (26) into rear pressure & inflate tires to 35 psi. Make frame (12) as far as possible. Let sure tires are properly seated on rims.
- Page 5 DESOTO HAULER ASSEMBLY INSTRUCTIONS 6. Chain “KEEP FINGERS CLEAR” 8. Western Saddle Seat & Sissy Bar Install drive chain (25) over crank Secure sissy bar (23) to the 2 studs sprocket & rear CB sprocket & join on bottom of the seat (10). Sissy bar together with connecting link &...
- Page 6 DESOTO HAULER ASSEMBLY INSTRUCTIONS 10. Handlebar 11. Cantilever Brake Installation Slide handlebar (40) through clamp on Insert “ball” end of cable into round stem (42) with portion of long bolt to slot of brake lever. Slide open end rear. Install clear reflector & bracket of cable through cable guide &...
- Page 7 MAINTENANCE & INSPECTION REGULAR MAINTENANCE: BI-MONTHLY 1. Keep all painted parts clean & waxed for long-lasting luster. 2. Spray chrome parts with recommended coating & let sit overnight for penetration. 3. Lubricate following: Seat pivot points, axle shafts, pedal bearings, chain (turn/spray).
- Page 8 Trailmate, Inc., further authorizes a lifetime frame guarantee and will replace any frame, at no cost to the buyer, providing that the item has not been used for rental and that:...
