Summary of Contents for Hitecsa ACHIA

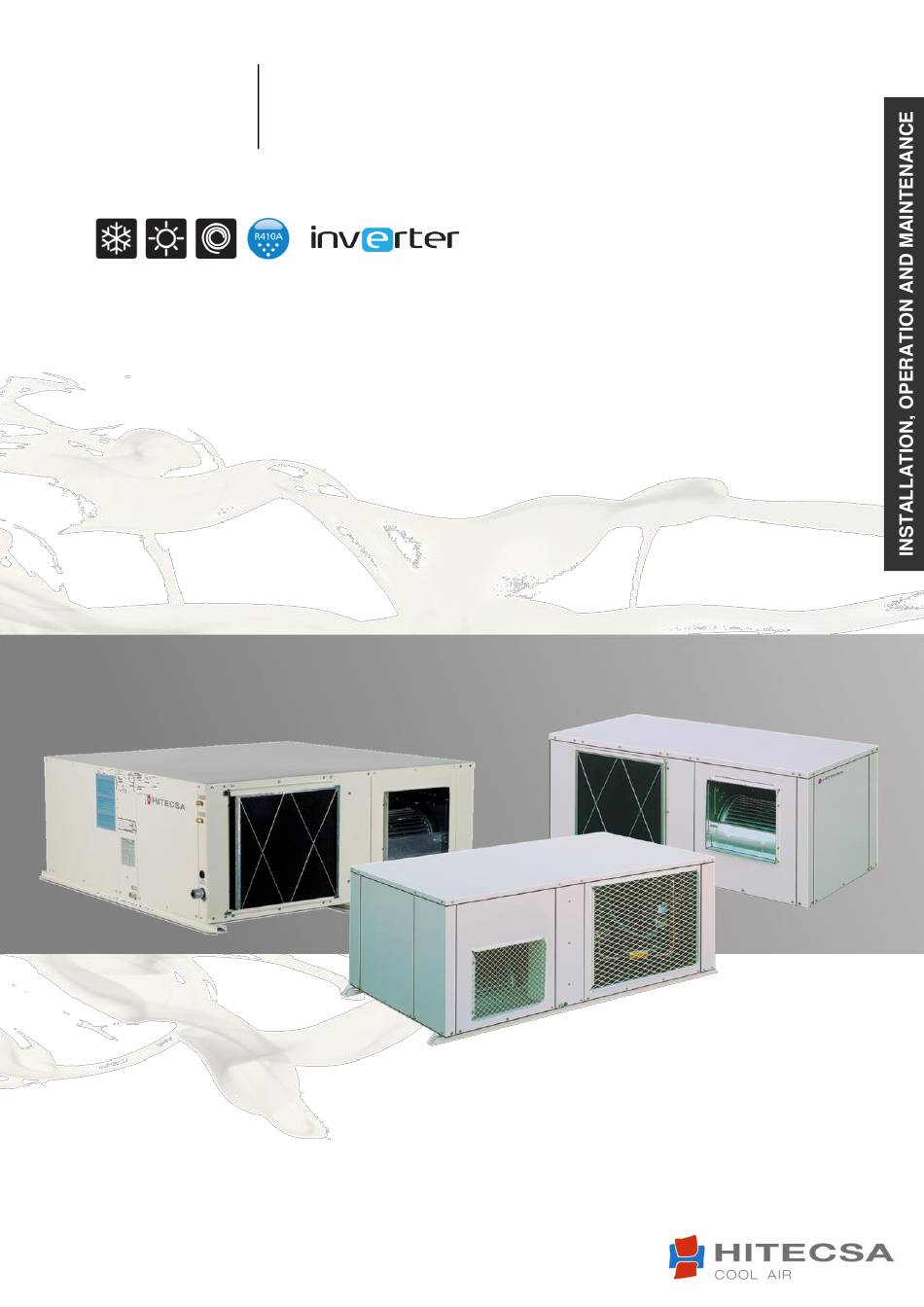

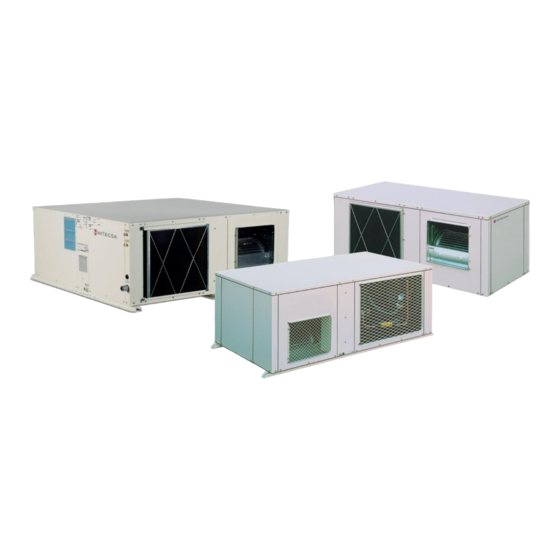

- Page 1 ACHIA ECHIA/CCHIA Cooling only Cooling only ACHIBA ECHIBA/CCHIBA Cooling only Cooling only AIR-TO-AIR UNITS – COMPACT HORITZONTAL INVERTER Model 301 Heating capacity: 5,2 kW Cooling capacity: 7,2 kW 11.16 207464 Rev.106...
- Page 2 AIR-TO-AIR UNITS – COMPACT HORITZONTAL INVERTER Thank you for trusting in Hitecsa Products. Our company has been offering the market an extended range of specialized units for air conditioning and cooling installations for over 30 years. Our approach is based on efficiency, adaptability, usability and practical solutions.
-
Page 3: Table Of Contents
ACHIA / ACHIBA AIR-TO-AIR UNITS – COMPACT HORITZONTAL INVERTER INDEX INTRODUCTION ..................04 SAFETY PRECAUTIONS ................. 05 RECEPTION ....................06 Inspection upon receipt ................ 06 Rigging ....................06 Storage ....................06 INSTALLATION LOCATION ..............07 Service area (mm) ................07 Weight distribution (kg) ................ -
Page 4: Introduction
• Disconnect the unit in the event of breakdowns or malfunctions. • If repairs are necessary, use only HITECSA approved service centres and always insist on original spare parts. The use of non-original parts and/or unauthorized service centres may result in unsafe operation of the unit. -
Page 5: Safety Precautions
ACHIA / ACHIBA AIR-TO-AIR UNITS – COMPACT HORITZONTAL INVERTER SAFETY PRECAUTIONS • Installation and maintenance of air conditioning equipment can be dangerous because the system is under pressure, because some of its elements have high temperatures and include electrical components. -
Page 6: Reception
If any damage is found, immediately file a claim with the transport company. (first 48h) • Verify the correct voltage of the nameplate and make sure it’s in accordance with local power supply. • In case of any flaw or anomaly detected, please contact HITECSA RIGGING •... -
Page 7: Installation Location
ACHIA / ACHIBA AIR-TO-AIR UNITS – COMPACT HORITZONTAL INVERTER INSTALLATION LOCATION • Check if the base is able to support the weight of unit during operation. • Reserve a minimum service area according to Fig. 2. • Choose a place free of dust or any other foreign material that could clog or damage the condenser coil. The location should also be a place that cannot be flooded. -
Page 8: Weight Distribution (Kg)
ACHIA / ACHIBA AIR-TO-AIR UNITS – COMPACT HORITZONTAL INVERTER WEIGHT DISTRIBUTION (kg) ACHIA-ACHIBA ECHIA-ECHIBA CCHIA-CCHIBA MODEL 301 TOTAL ACHIA-ACHIBA ECHIA-ECHIBA CCHIA-CCHIBA UNIT SETTLEMENT • Make sure that the unit is correctly levelled. • T he bed frame should be strong and solid enough to support the weight of the machine. -
Page 9: Start Up
ACHIA / ACHIBA AIR-TO-AIR UNITS – COMPACT HORITZONTAL INVERTER BEFORE START UP Check the following points: • Wires are well tightened. • Panels are firmly secured with screws. • There are no oil or refrigerant leaks. • The unit is correctly leveled. -
Page 10: Operation Limits
• Main power supply of the unit should agree with the data shown on the nameplate. HITECSA will not be held responsible for damages resulted from non observance of the above. -
Page 11: Electrical Data
ACHIA / ACHIBA AIR-TO-AIR UNITS – COMPACT HORITZONTAL INVERTER INSTALLATION ELECTRICAL DATA Serie Inverter 301 ACHIA/ACHIBA CCHIA/CCHIBA ECHIA/ECHIBA ELECTRICAL CHARACTERISTICS IN COOLING MODE (1) Voltage V/ph/Hz 220-240 / I / 50 Absorbed power Absorbed current 14,3 ELECTRICAL CHARACTERISTICS IN HEATING MODE (2) -
Page 12: Air Ducts
ACHIA / ACHIBA AIR-TO-AIR UNITS – COMPACT HORITZONTAL INVERTER AIR DUCTS • Air duct dimensions will be determined according to the airflow and available static pressure. • Ducts must be designed by qualified technical people. • Use ducts made of non-inflammable materials in order to avoid any emission of gas in case of fire. It is advisable to use metal plate duct with insulation. -
Page 13: Technical Data
ACHIA / ACHIBA AIR-TO-AIR UNITS – COMPACT HORITZONTAL INVERTER TECHNICAL DATA Inverter 301 Serie ACHIA/ACHIBA CCHIA/CCHIBA ECHIA/ECHIBA CAPACITIES Cooling capacity (1) 1,2 – 7,4 – 8,1 1,2 – 7,4 – 8,1 1,2 – 7,4 – 8,1 Cooling capacity (20 - 100 - 110 Hz) Heating capacity (2) 1,3 –... -
Page 14: Dimensions
ACHIA / ACHIBA AIR-TO-AIR UNITS – COMPACT HORITZONTAL INVERTER DIMENSIONS ACHIA-ACHIBA 301 11.16 207464 Rev.106... - Page 15 ACHIA / ACHIBA AIR-TO-AIR UNITS – COMPACT HORITZONTAL INVERTER ECHIA-ECHIBA 301 11.16 207464 Rev.106...
- Page 16 ACHIA / ACHIBA AIR-TO-AIR UNITS – COMPACT HORITZONTAL INVERTER CCHIA-CCHIBA 301 11.16 207464 Rev.106...
-
Page 17: Refrigerant Lines
ACHIA / ACHIBA AIR-TO-AIR UNITS – COMPACT HORITZONTAL INVERTER REFRIGERANT LINES COOLING CIRCUIT Split systems demand a correct disposition of refrigerant piping and a correct connection between both indoor and outdoor units. Pressure drop of the line Circulation speed of the refrigerant ... - Page 18 ACHIA / ACHIBA AIR-TO-AIR UNITS – COMPACT HORITZONTAL INVERTER 2. When indoor unit is at the same level as outdoor unit: Rise the suction line to a higher level than the exchanger in order to avoid refrigerant return into the compressor.
- Page 19 • Units ACHIA-ACHIBA / ECHIA-ECHIBA / CCHIA-CCHIBA are supplied with nitrogen charge. Before proceeding to any welding work, it’s necessary to remove this charge out of the interconnection lines. Once you have finished, make the vacuum and charge with the right amount of refrigerant.
-
Page 20: Refrigerant Charge
ACHIA / ACHIBA AIR-TO-AIR UNITS – COMPACT HORITZONTAL INVERTER REFRIGERANT CHARGE Never use oxygen to carry out leak tests. Oxygen reacts violently when in contact with oil and could cause an explosion resulting in damage, personal injuries or even death. -
Page 21: Maintenance
ACHIA / ACHIBA AIR-TO-AIR UNITS – COMPACT HORITZONTAL INVERTER MAINTENANCE Before performing any service or maintenance operation, turn off the main power switch of the system to avoid any personal injuries. Block the power switch so that nobody other than a qualified technician can switch on electrical power. -
Page 22: Appendix: Safety Data R410A
ACHIA / ACHIBA AIR-TO-AIR UNITS – COMPACT HORITZONTAL INVERTER APPENDIX: SAFETY DATA R410A Refrigerant data Safety data: R410A Toxicity Contact with skin R410A vapours can irritate the skin and eyes. In liquid form, it can freeze skin on contact. If contact with skin occurs, flush the exposed area with lukewarm water until all of the chemical is removed. - Page 23 ACHIA / ACHIBA AIR-TO-AIR UNITS – COMPACT HORITZONTAL INVERTER Refrigerant data Safety data: R410A General precautions Do not inhale concentrated vapours. Their concentration in the atmosphere should not exceed the minimum preset values and should be maintained below the professional threshold. Being more weighty than the air, the vapour concentrates on the bottom, in narrow areas.
- Page 24 HIPLUS AIRE ACONDICIONADO S.L. Masia Torrents, 2 Tel. +34 938 934 912 Fax. +34 938 939 615 08800 Vilanova i la Geltrú Barcelona, Spain www.hitecsa.com Specifications subject to change without previous notice.
