Setting Up the Mobile Data Collector

To set up the mobile data collector, refer to the following sections of this guide:

Installing the Mobile Data Collector in the Vehicle

l

Plugging in the Power Cable

l
Installing the Antenna
l
Installing the Mobile Data Collector in the Vehicle
With the mobile data collector, you have flexibility with where to place the unit. The
preferred placement is in the passenger seat with the seat belt fastened through the straps
on the carrying case (Part No: 13125 001).
Plugging in the Power Cable
Complete the following steps to connect the vehicle power supply power cable to the mobile
data collector and plug it into the vehicle power supply receptacle.
1. Start the vehicle.
It is very important to first start the vehicle before connecting the cable.
Mobile Data Collector Getting Started Guide

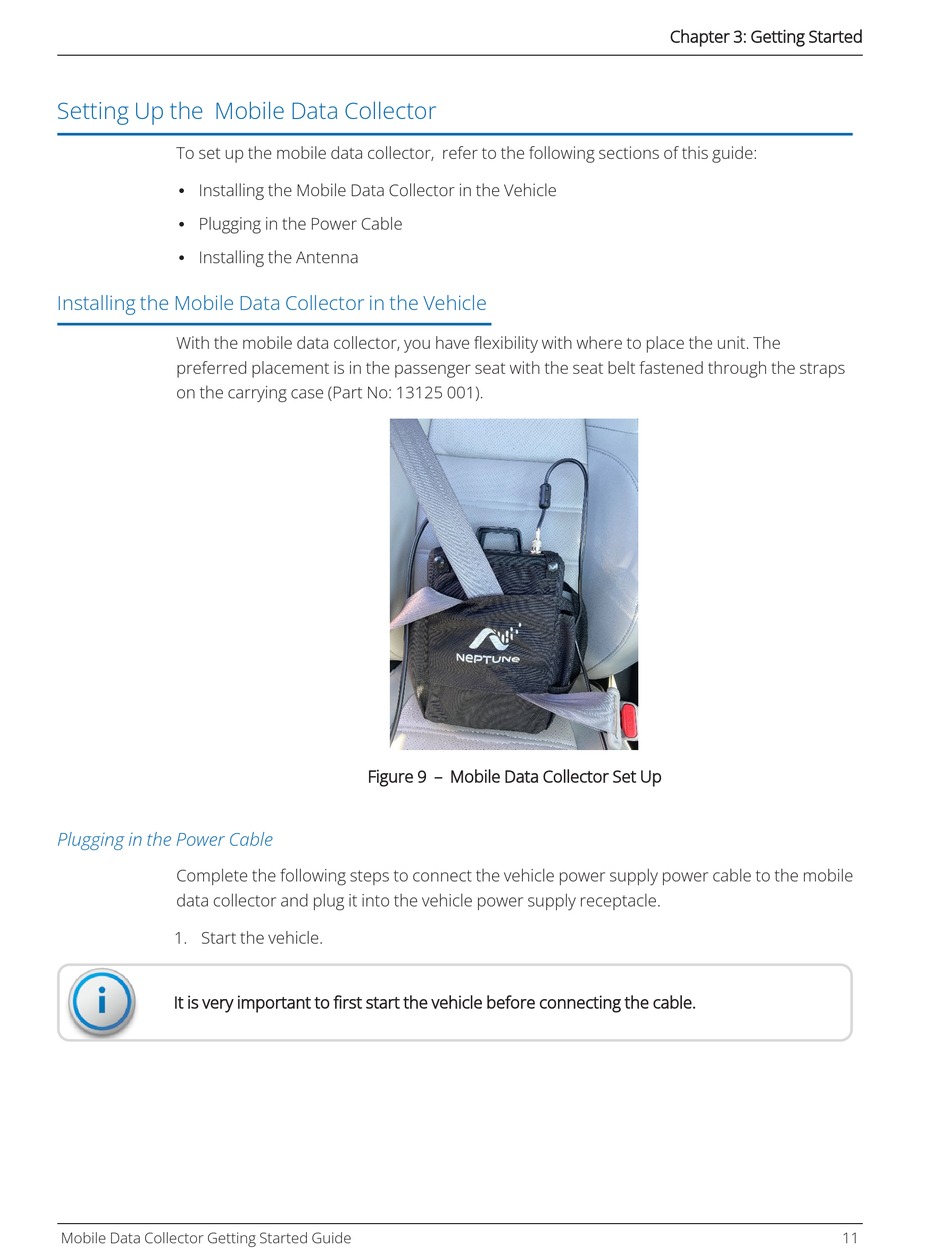

Figure 9 – Mobile Data Collector Set Up
Chapter 3: Getting Started
11
