Connecting to Monitors (Coax)

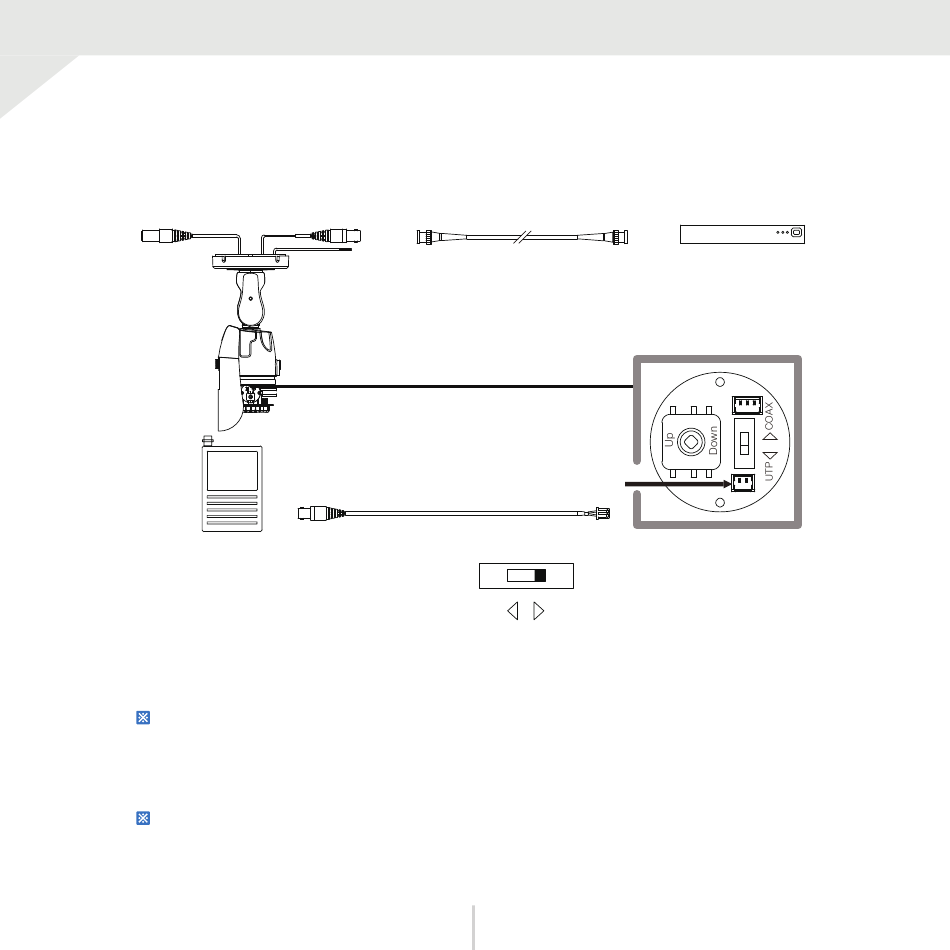

Use the diagram below to connect the camera to a Universal HD over Coax
or CRT monitor when the camera is in Coax video output mode (default mode).
12VDC/24VAC
Monitor
- Power connection - 12VDC/24VAC dual voltage (auto polarity detection and protection)
- All cameras are equipped with a test video output for on-site configuration.
NOTE: To use your Star-Light Plus™ 5MP cameras at a lower resolution, you must
use a VMAX A1 Plus™ DVR to access the camera's menu due to the cameras
®
being set to 5MP as the default. A DVR that does not support 5MP resolution may
recognize the camera, but will not deliver a picture.
NOTE :
When switching the UTP/Coax switch to Coax, no image output will be available when using
UTP.
Coax
Test video output
UTP/coax switch
UTP COAX
