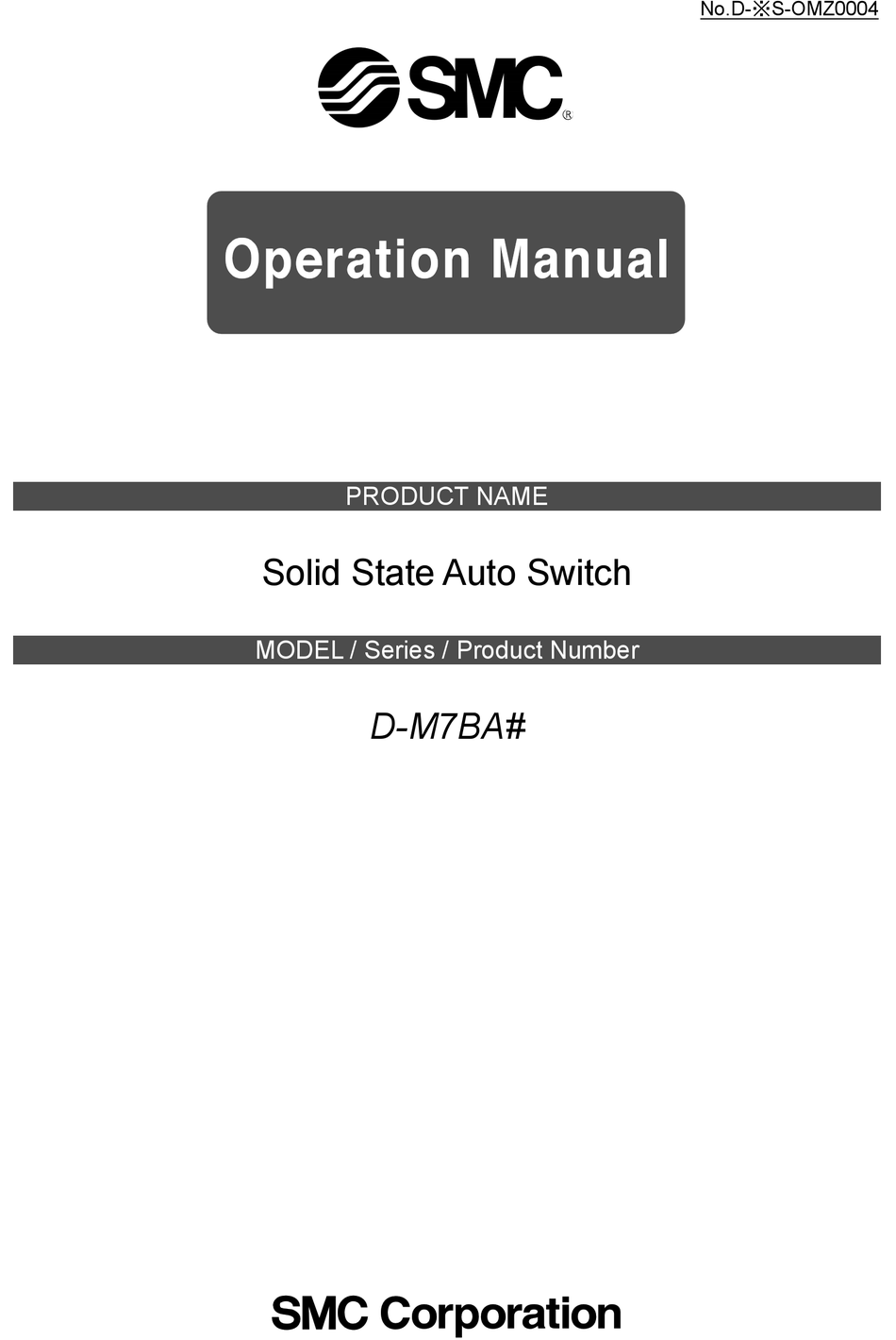

- Page 1 No.D-※S-OMZ0004 PRODUCT NAME Solid State Auto Switch MODEL / Series / Product Number D-M7BA#...
-
Page 2: Table Of Contents
Contents Safety Instructions Model Indication and How to Order Summary of Product parts Names Definition and terminology Mounting and Installation Installation Troubleshooting Specifications Dimensions No.D-※S-OMZ0004... -
Page 3: Safety Instructions
Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of "Caution", "Warning" or "Danger". They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations. - Page 4 Safety Instructions Caution 1.The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary. If anything is unclear, contact your nearest sales branch.
- Page 5 Operator ♦This operation manual is intended for those who have knowledge of machinery using pneumatic equipment, and have sufficient knowledge of assembly, operation and maintenance of such equipment. Only those persons are allowed to perform assembly, operation and maintenance. ♦Read and understand this operation manual carefully before assembling, operating or providing maintenance to the product.
- Page 6 Caution ■Do not touch terminals and printed circuit board inside the product. Otherwise it can cause electric shock, malfunction or damage to the product can result. After maintenance is complete, perform appropriate functional inspections. ■ Stop operation if the equipment does not function properly. Safety cannot be assured in the case of unexpected malfunction.
- Page 7 ∗Wiring •Do not pull the lead wires. Especially never lift actuator equipped with Auto switch by holding the lead wires. It can result in damage to inside of Auto switch causing malfunction. •Do not bend or apply tensile stress to lead wires repeatedly. Wiring with repetitive bending stress or tensile stress can cause peel of a sheath.
- Page 8 ∗Adjustment and Operation •Adjust an Auto switch in the middle of operating area and then fix it. Adjust the position of Auto switch in a way that a piston stops at about the middle of operating area (where switch is in ON status).
-
Page 9: Model Indication And How To Order
Model Indication and How to Order D-M7BA 2-wire Lead wire length and termination Symbol Specification 3000 mm (Half strip) 5000 mm (Half strip) SAPC 500 mm (M8 3-pin pre-wire) SBPC 500 mm (M8 4-pin pre-wire) SDPC 500 mm (M12 4-pin pre-wire) MAPC 1000 mm (M8 3-pin pre-wire) MBPC... -
Page 10: Definition And Terminology
■Definition and terminology Term Meaning and definition The difference between the points when the Auto switch turns on and off, which is Hysteresis provided to prevent chattering. The center position of the sensor unit (which gets the strongest reaction of the sensor Most sensitive position unit), which means the center position of an operating range as well. -
Page 11: Mounting And Installation
Mounting and Installation ■Installation When mounting the Auto switch to the actuator, the appropriate mounting bracket should be used. "How to mount" depends on the actuator type and bore size. Please refer to the actuator catalogue. For new Auto switch applications, confirm that the actuator includes a magnet before assembling the Auto switch and bracket. - Page 12 •Internal circuit •Sink input mode •Source input mode ∗: The number marked on each lead wire color shows the pin number of pre-wired connector. •Connection with PLC (sequence controller) M8 3-pin connector M8 4-pin connector M12 4-pin connector -11- No.D-※S-OMZ0004...
-
Page 13: Troubleshooting
Troubleshooting When the auto switch falls in operation failure, identify the trouble with the following flow chart. A failure of the auto switch might depend on operating environment (application etc.) and needs to be given a measure by contacting to us separately. The switch doesn’t Is the actuator Misapplication... - Page 14 •Cross-reference for troubleshooting Trouble Trouble Possible cause Investigation to find possible cause Countermeasure Malfunction due The effect of magnetic field Place a magnetic shield plate to the to disturbance The switch generated by adjacent cylinder. cylinder. magnetic field output doesn’t turn off.
- Page 15 Trouble Trouble Possible cause Investigation to find possible cause Countermeasure Check if load specification satisfy the formula below. Output stays Not match with Load ON voltage load Reduce the number of switch < Load voltage – Display is specification connected in serial. (Switch internal voltage drop x n) normal (2-wire type)
-
Page 16: Specifications
Specifications Switch part no. D-M7BA# Wiring 2-wire Applicable load 24 VDC Relay/PLC Load voltage 24 VDC (10 to 28 VDC) Load current 2.5 to 40 mA Internal voltage drop 4 V or less Current leakage 0.8 mA or less Operating position: The red LED lights up Indication light Optimum operating position: The green LED lights up Standard... -
Page 17: Dimensions
■Dimensions •D-M7BA# •Pre-wired connector •D-M7### PC •D-M7###DPC -16- No.D-※S-OMZ0004... - Page 18 Revision history 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 https://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. © 2022 SMC Corporation All Rights Reserved No.D-※S-OMZ0004...
