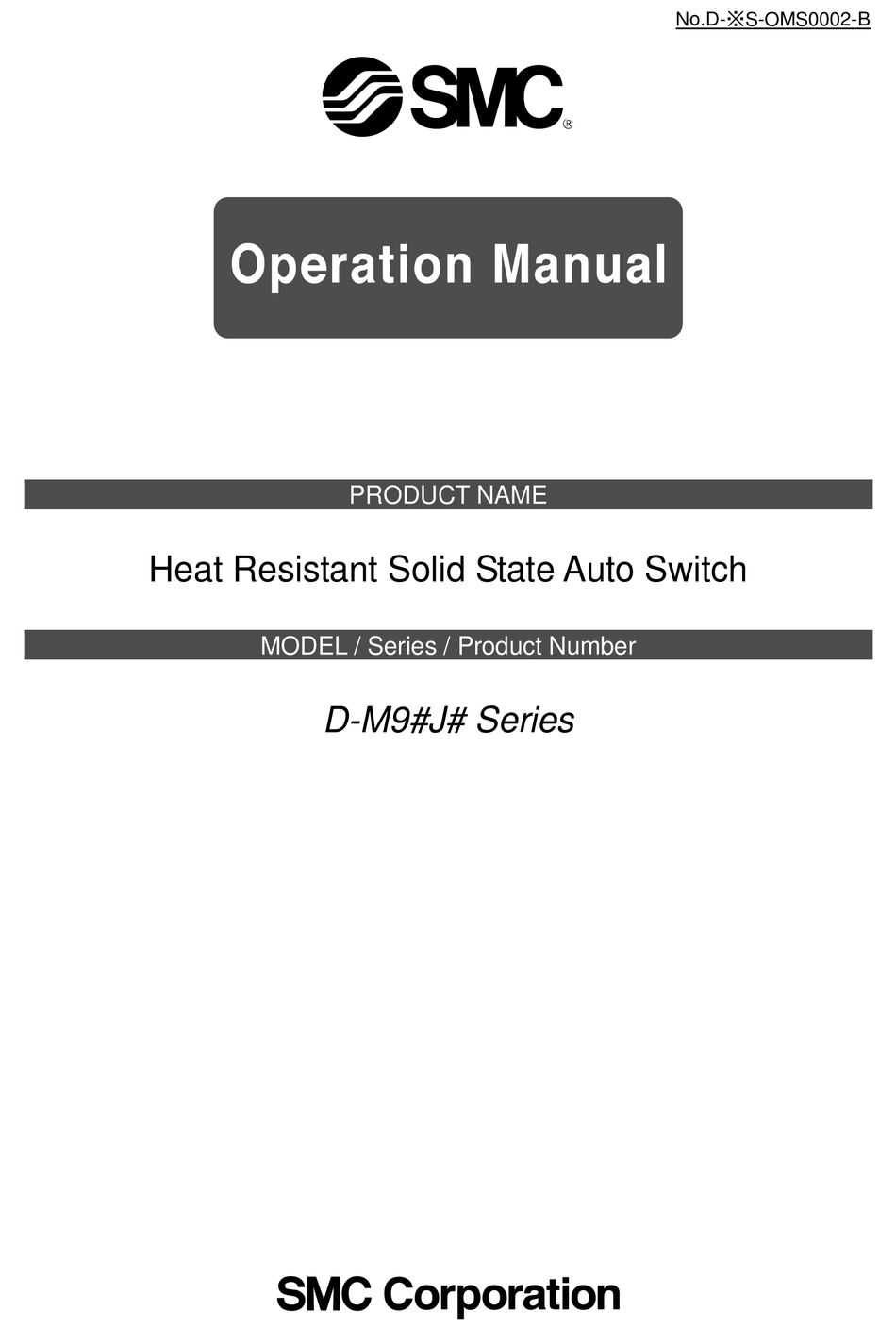

- Page 1 No.D-※S-OMS0002-B PRODUCT NAME Heat Resistant Solid State Auto Switch MODEL / Series / Product Number D-M9#J# Series...
-
Page 2: Table Of Contents
Contents Safety Instructions Model Indication and How to Order Summary of Product parts Definition and terminology Mounting and Installation Installation Maintenance Troubleshooting Specification Specifications Dimensions No.D-※S-OMS0002-B... -
Page 3: Safety Instructions
Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of "Caution", "Warning" or "Danger". They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations. - Page 4 Safety Instructions Caution 1.The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary. If anything is unclear, contact your nearest sales branch.
- Page 5 Operator This operation manual is intended for those who have knowledge of machinery using pneumatic equipment, and have sufficient knowledge of assembly, operation and maintenance of such equipment. Only those persons are allowed to perform assembly, operation and maintenance. Read and understand this operation manual carefully before assembling, operating or providing maintenance to the product.
- Page 6 Follow the instructions given below when designing, selecting and handling the product. ■The instructions on design and selection (installation, wiring, environment, adjustment, operation, described below must also be followed. maintenance, etc.) Product specifications •DC power supply to be used together must be UL 1310 class 2 power supply unit or UL recognized power supply with UL 1585 class 2 transformer.
- Page 7 Wiring •Do not pull hard on the lead wire. In particular, never lift an Auto switch actuator by holding the lead wires. Otherwise damage to the internal parts can result, causing malfunction. •Avoid repeatedly bending or stretching the lead wire, or placing heavy load on them. Repetitive bending stress or tensile stress can cause the sheath of the wire to peel off, or breakage of the wire.
- Page 8 •Do not use the product in an environment that is exposed to temperature cycle. Heat cycles other than ordinary changes in temperature can adversely affect the inside of the product. •Do not expose the product to direct sunlight. If using in a location directly exposed to sunlight, shade the product from the sunlight. Otherwise failure or malfunction can result.
-
Page 9: Model Indication And How To Order
Model Indication and How to Order D - M 9 Compact round groove SW Lead wire length Symbol Specification Output type Sensor unit to amplifier unit 3 m amplifier unit 3 m Symbol Specification NPN type Sensor unit to amplifier unit 5 m amplifier unit 3 m PNP type Summary of Product parts... -
Page 10: Definition And Terminology
■Definition and terminology Term Meaning Display method in which a red LED turns on when it is in the operating position, and a 2-color indication green LED turns on when it is in the optimum operating range. Current leakage The current flowing to the load when the Auto switch turns off. The difference between the points when the Auto switch Hysteresis... -
Page 11: Mounting And Installation
Mounting and Installation ■Installation When mounting the Auto switch to the actuator, the appropriate mounting bracket should be used. "How to mount" depends on the actuator type and bore size. Please refer to the actuator catalogue. For new Auto switch applications, confirm that the actuator includes a magnet before assembling the Auto switch and bracket. - Page 12 ○Amplifier unit It needs for DIN terminal when mount to the Auto switch amplifier unit. •How to mount DIN terminal As described below, hand the hook on the bottom of the body on DIN rail, and then push and hold them along with arrow mark.
-
Page 13: Maintenance
Maintenance How to reset the product for power loss or forcible de-energizing Regarding set up, contents of the program may be maintained by customer's application systems. Be sure to confirm safety when returning operation of the actuator because it could have been stopped in an unstable condition. -
Page 14: Troubleshooting
Troubleshooting When the Auto switch in operation, identify the trouble with the following flow chart. A failure of the Auto switch might depend on the operating environment (application etc.) and needs to be given a test by contacting to us separately. The switch Is the actuator Misapplication... - Page 15 •Trouble list Trouble Investigation to find possible Trouble Possible cause Countermeasure cause Malfunction due The effect of magnetic field Place a magnetic shield plate to The Auto switch to magnetic field generated by adjacent actuator the actuator. output does not turn off.
- Page 16 Trouble Investigation to find possible Trouble Possible cause Countermeasure cause Adjust power supply voltage to a given value. Power supply Power supply voltage “Power supply (Refer to page failure (zero or extremely low) voltage or Load voltage” in Specifications.) Correct wiring. Voltage (load) applied to the Auto “Internal Incorrect wiring...
- Page 17 Trouble Investigation to find possible Trouble Possible cause Countermeasure cause Improper setting Move the Auto switch to proper Detection close to the limit of (mounting) position (near the center of the Auto switch operating angle position Auto switch operating angle). Looseness of the Auto switch Displacement Fix to proper position at the...
-
Page 18: Specification
Specification ■Specifications Model D-M9NJ D-M9PJ Output type NPN type PNP type Power supply voltage 20 to 26 VDC Current consumption 25 mA or less Load voltage 28 VDC or less Load current 40 mA or less Internal voltage drop 0.8 V or less Leakage current 100 µA or less at 24 VDC Operating range: The red LED lights up. -
Page 19: Dimensions
■Dimensions -18- No.D-※S-OMS0002-B... - Page 20 Revision history A: Modified errors in text. B: Add the note. [November 2020] 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 https://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. ©...
