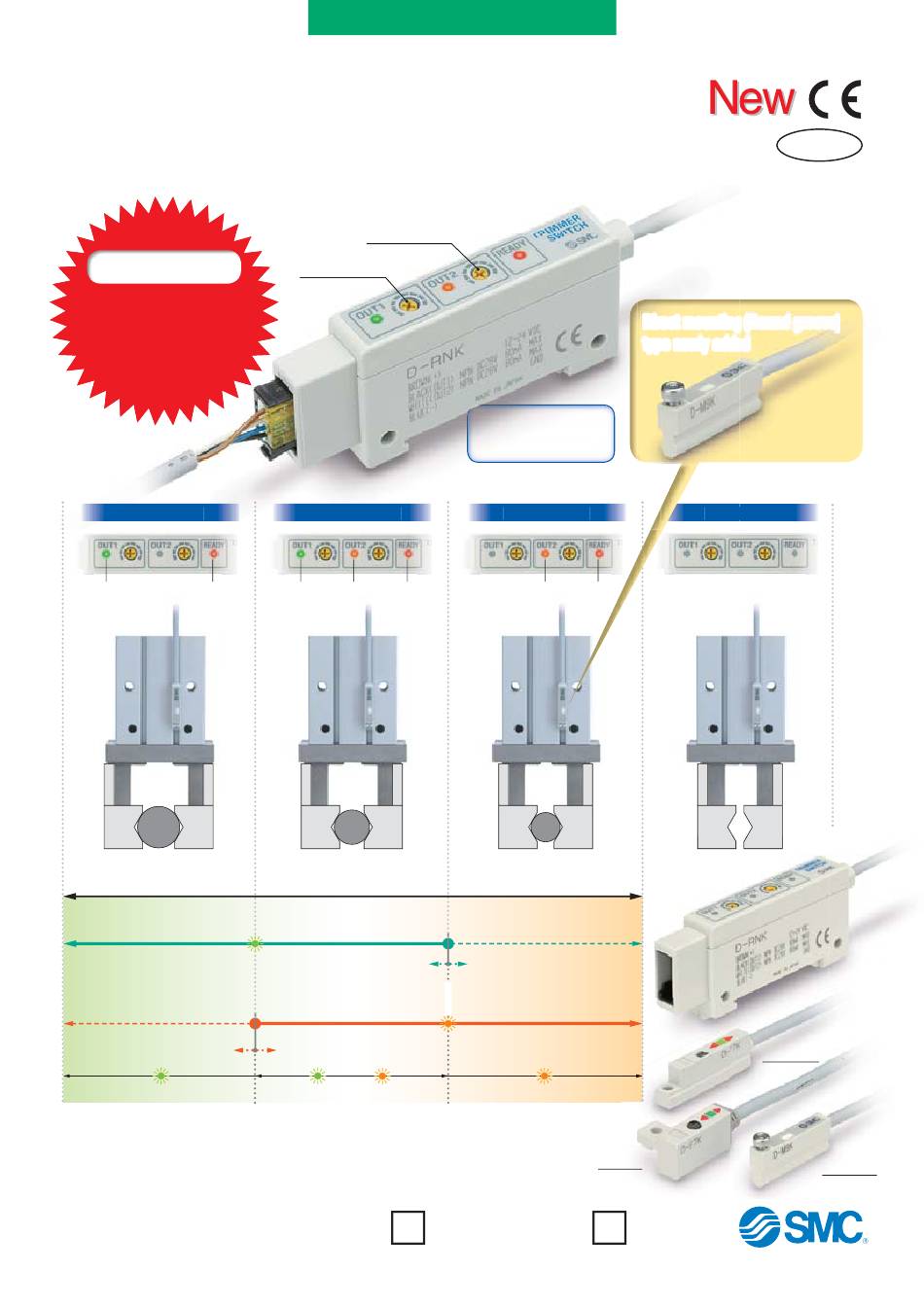

Trimmer Auto Switch
One auto switch allows work pieces to be distinguished easily.
Minimum adjustment
width to detect
0.5
mm
With one switch, various sized work pieces
can be detected by the difference of
0.5 mm or more.
∗ From 0.5 mm to detectable width
dependant on applied
actuator.
Large workpiece
Green
light is ON.
Red
light is ON.
Operating range of sensor (Red light of the sensor unit is ON.)
OUT1 Detecting range
Output ON = Green light is ON.
Large workpiece
D-M9K/D- 7K/D-R K
Series
OUT2 Trimmer
OUT1 Trimmer
Medium workpiece
Green
light is ON.
Orange
light is ON.
Red
light is ON.
Adjustable by trimmer
OUT2 Detecting range
Output ON = Orange light is ON.
Adjustable by trimmer
Medium workpiece
Direct mounting (Round groove)
type newly added
OUT1
OUT2
and
are
adjustable separately.
Small workpiece
Orange
light is ON.
Red
light is ON.
Small workpiece
Rail groove
RoHS
No wor
rkpiece
Square groove
Round groove
CAT.EUS20-180C-UK

Advertisement

loading
Need help?

Need help?

Do you have a question about the D 7K Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SMC Networks D 7K Series

  • Page 1 Trimmer Auto Switch RoHS One auto switch allows work pieces to be distinguished easily. OUT2 Trimmer Minimum adjustment OUT1 Trimmer width to detect Direct mounting (Round groove) With one switch, various sized work pieces type newly added can be detected by the difference of 0.5 mm or more.
  • Page 2 D-M9K/D- 7K/D-R K Series Trimmer Auto Switch Applicable to the short stroke cylinder. Only one auto switch can detect the extended swit itch etec exte tend nded and retracted end positions. tr trac acte posi siti tion Amplifi er Unit This switch can be used when two auto switches w itch can be used when two auto switches...
  • Page 3: Specifications

    RoHS Trimmer Auto Switch D-M9K/D- 7K/D-R K Direct mounting Direct mounting Rail mounting (Round groove) (Square groove) Specifi cations Sensor Unit Amplifi er Unit (with Sensor Unit) Amplifier Unit (with S lifi U it ( U it) PLC: Programmable Logic Controller PLC: Programmable Logic Controller Auto switch model D-M9K...
  • Page 4: Sensor Unit

    D-M9K/D- 7K/D-R K Series The operating ranges are provided as guidelines including the hysteresis and The operating ranges are provided as guide are not guaranteed value. Please consult with SMC for alternative actuators are not guaranteed value. Please consult w Applicable Actuators and Operating Range (Angle) other than those shown below.
  • Page 5 D-M9K/D- 7K/D-R K Series Trimmer Auto Switch Dimensions Sensor Unit D-M9K D-Y7K 3.95 12.5 Most sensitive position Most sensitive position M2.5 x 4L Slotted set screw Mounting thread M2.5 x 12L Hexagon socket head cap screw 3000 3000 D-F7K Most sensitive position ø3.2 3000 Amplifi...
  • Page 6 D-M9K/D- 7K/D-R K Series How to Mount and Move the Auto Switch D-M9K Mounting Bracket Direct Mounting Type <Applicable auto switch> How to Mount and Move the Auto Switch D-M9K Solid state ······ Applicable Actuators Air Grippers Hexagon socket Description Series Bore size head cap screw...
  • Page 7 D-M9K/D- 7K/D-R K Series Trimmer Auto Switch How to Mount and Move the Auto Switch D-F7K Mounting Bracket Rail Mounting Type Auto switch mounting screw (M3 x 0.5 x 8L) <Applicable auto switch> D-F7K Solid state ······ Auto switch Applicable Actuators Auto switch mounting rail Air Cylinders Description...
  • Page 8 D-M9K/D- 7K/D-R K Series How to Mount and Move the Auto Switch D-Y7K Mounting Bracket Tie-rod Mounting Type <Applicable auto switch> D-Y7K Solid state ······ Note 2) Hexagon socket head set screw Series CA2: M4 x 0.7 x 6L Applicable Actuators Auto switch Air Cylinder Description...
  • Page 9 Trimmer Auto Switch Specifi c Product Precautions Be sure to read before handling. Refer to back cover for Safety Instructions. For Auto Switch Precautions, refer to “Handling Precaution for SMC Products” and the Operation Manual on SMC website, http://www.smcworld.com Design and Selection Wiring Warning Caution...
