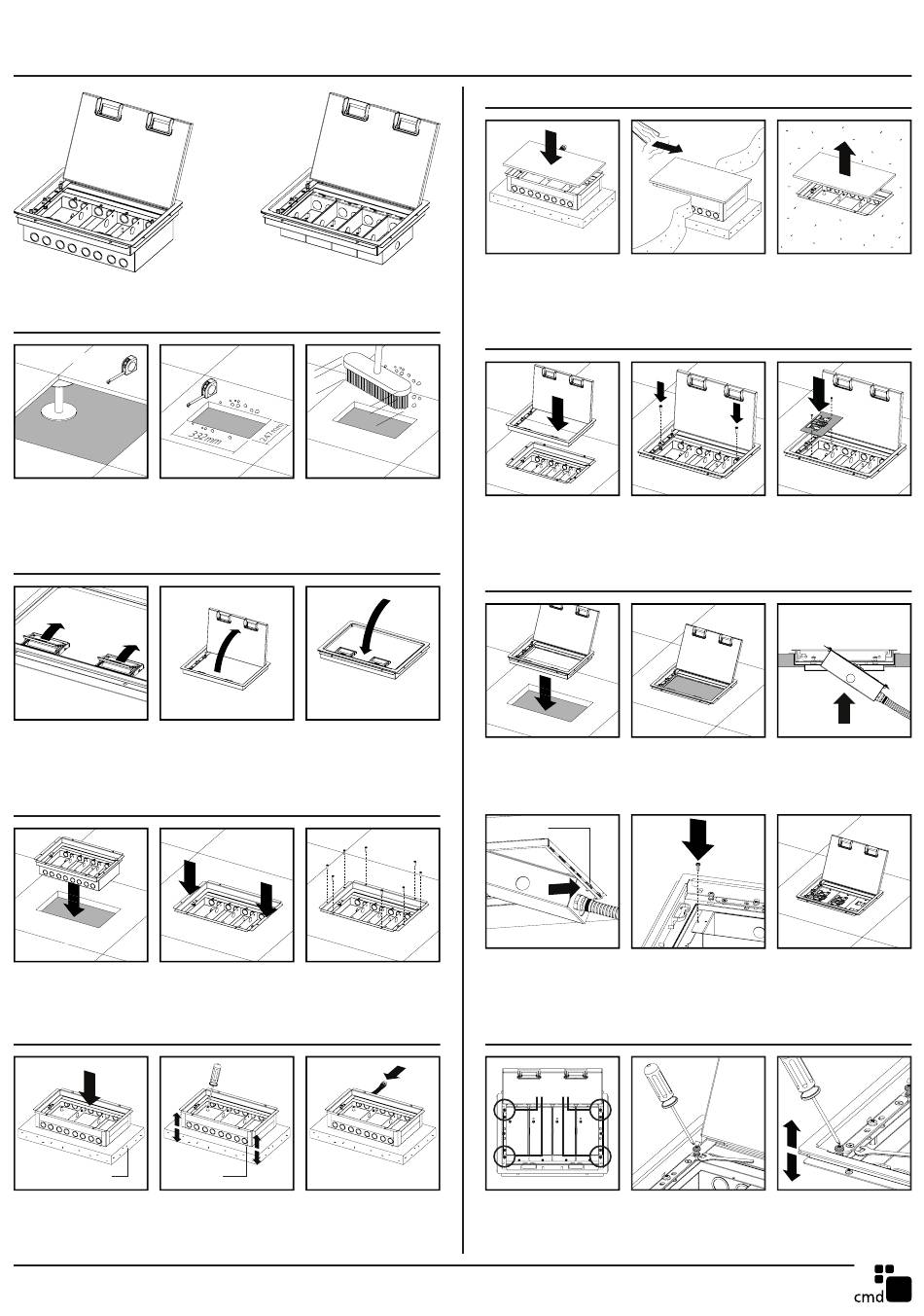

CMD 22 Series User And Care Manual

22 series
(stainless steel floor box)
Single box base version
Prepare the floor area
Raised access floor
Check there is sufficient Measure, mark and cut
clearance under the the aperture in the floor.
floor to accept the box 332 x 247mm -0/+3mm
and cables. tolerance.
Lid operation
Lift up the handles on Carefully pull up the lid
the cable outlets as with the handles and
shown. open until it stops as
shown.
Screw fixed installation
Not wired
Lower the single box Press down evenly so
base down into the floor the flanges on the box
aperture as shown. base sit on the floor.
Screed fixed installation
Ribbon screed layer Jacking legs
Place the box in desired Use a screw driver on
location. A ribbon screed each corner jacking leg
may be required to meet to adjust the height of
the finished floor level. the box up to 10mm.
Part No: 134331 Issue No: 001
Drop off box base version
Clear away debris from
the aperture to allow
proper installation of the
floor box.
Ensure to close the lid
after use for safety. Do
not wedge the lid open.
(into raised access floor)
Secure in place with
appropriate screws if
necessary.
(onto concrete/hard floor)
Remove the required
knockouts and feed
the desired cables and
conduit to the box.
Installation, user and care guide
Screed fixed installation
Use a suitable cover Ensure box is secured in
to protect the insides place to prevent floating
from screed during the during the pouring
pouring process. process. Pour the screed.
Installing the lid and trim
Lower the lid and trim Fix the lid and trim to
down onto the installed the mounting frame of
box base. the box base with the 2x
included screws.
Drop off box installation
Lower the lid and trim Fix in place with
with attached mounting appropriate screws if
frame into the floor necessary.
aperture.
Tabs in slots
The tabs on the box Lower the front end of
bases point to the lid the box bases onto the
and feed into slots along frame and fix in place
the frame edge. with 1x taptite screw.
Adjusting the trim height
Levelling screws
To allow for various floor Use appropriate tools
thicknesses, adjust the to adjust the levelling
4x levelling screws in the screws as shown.
corners of the frame.
(continued)
Remove the cover from
the box when the screed
is fully set.
Add in and wire up the
desired accessory plates
if not already installed.
Feed the wired box
bases up into the
mounting frame from
under the floor.
Repeat for all box bases
and attach accessory
plates if not already
installed.
(to suit floor thickness)
Adjustment of the
levelling screws will raise
or lower the height of
the lid and trim.
