CMD 20 Series Installation, User And Service Manual

20/20A series

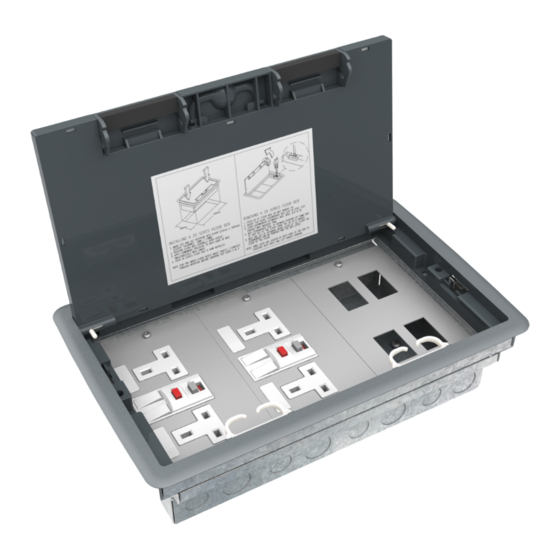

20 series floor box
(single box base)
**WARNING**
Sharp floor fixing barbs on the lid trim. Be careful when handling.
Prepare the floor area
Raised access floor
Check there is sufficient Measure, mark and cut
clearance under the the aperture in the floor.
floor to accept the box 200 x 332mm -0/+3mm
and cables. tolerance.
Lid operation
Lift up the wire handle Carefully pull up the
in the centre of the lid. lid with the handle and
open until it stops as
shown.
Removing and refitting the lid
Slide the latches on both Lift the lid up and away
ends of the lid towards from the floor box..
the centre of the floor
box as shown.
Part No: 134175 Issue No: 002
(floor boxes)
20A series floor box
(separate box bases)
Clear away debris from
the aperture to allow
proper installation of the
floor box.
The lid and handle are
designed to be self
closing for safety. Do not
wedge open.
'CLICK'
Reverse the previous two
steps to replace the lid.
Installation, user and care guide
Fast fit installation
(applies to both 20 & 20A series)
Not wired Pre-wired box
Position the floor box Angle the box and lower
centrally over the into the aperture in the
aperture and lower it floor if the box is pre-
down evenly into it. wired.
Fast fit installation
(applies to 20A series only)
Insert the mounting The 2x cable guides may
frame and remove the need to be removed
lid as shown previously to allow the boxes to
to aid installation. locate without clashing.
Tabs in slots
The tabs on the box Lower the front end of
bases point to the lid the box bases onto the
and feed into slots along frame and fix in place
the frame edge. with 1x taptite screw.
Reversible lid
(switch the side the lid opens from if necessary)
Remove the 2x screws as Rotate the lid and trim
shown to lift the lid and 180° so the lid will open
trim from the floor box. from the opposite side.
Floor box removal
(applies to both 20 & 20A series)
Insert a flat blade screw Using the lid as a handle
driver into slot and lever lift up the box at the
outwards to push metal same end. Be careful of
clip inwards. Hold. the sharp barbs on sides.
Apply even pressure at
both ends of the box at
the same time with both
hands.
Feed the wired box
bases up into the
mounting frame from
under the floor.
Repeat the process until
all box bases are fixed in
place. Fit the lid back in
place once finished.
Lower the lid and trim
into place and secure
with the 2x screws
removed in the first step.
Lift up the box entirely.
This process can be
done at either end of
the floor box.
