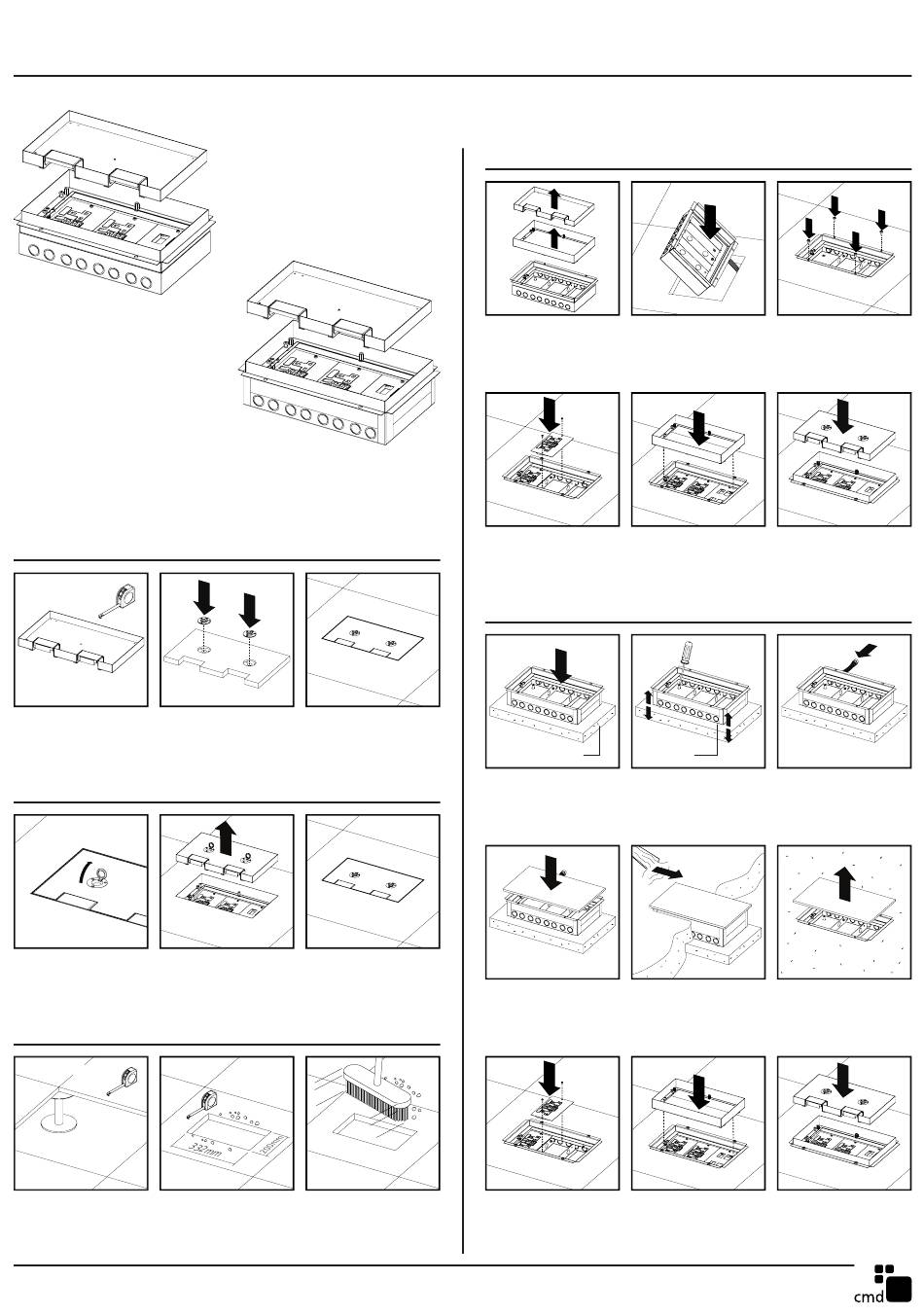

CMD 90 Series Quick Start Manual

90 series
(floor box)
Screw fixed floor box

Fitting the lid inlay and handles

Measure the inside Measure the supplied
dimensions of the lid handles and cut out a
and carefully cut out the suitable recess. Screw
infill material. handles in place.

Lid operation

Lift up the ring pull Carefully pull up the lid
in the centre of the with the handles and
handles. place to one side.
Prepare the floor area

Raised access floor

Check there is sufficient Measure, mark and cut
clearance under the the aperture in the floor.
floor to accept the box 200 x 332mm -0/+3mm
and cables. tolerance.
Part No: 134250 Issue No: 001
Screed fixed floor box
(with ingress blocking tape)
Secure infill into the lid
and install into the floor
box when ready.
Reverse the process to
close the lid.
(for screw fixed floor box)
Clear away debris from
the aperture to allow
proper installation of the
floor box.
Installation, user and care guide
Screw fixed installation
Remove the lid and trim Angle the box and lower
from the box base if not into the aperture in the
already separated. floor if the box is pre-
wired.
Add in and wire up the Lower the lid trim into
desired accessory plates place as shown. Check
if not already installed. the box is clean and free
of debris first.
Screed fixed installation
Ribbon screed layer Jacking legs
Place the box in desired Use a screw driver on
location. A ribbon screed each corner jacking leg
may be required to meet to adjust the height of
the finished floor level. the box up to 10mm.
Use a suitable cover to Ensure box is secured in
protect the insides from place to prevent floating
screed during pouring during the pouring
process. process. Pour the screed.
Add in and wire up the Lower and fix the trim
desired accessory plates into place as shown.
into the box. Check the box is clean
and free of debris first.
(into raised access floor)
Screw the box base to
the floor substrate with
4x suitable screws at the
points shown.
Secure with 2x screws
that were removed in
the first step. Reverse
steps to remove.
(onto concrete/hard floor)
Remove the required
knockouts and feed
the desired cables and
conduit to the box.
Remove the cover from
the box when the screed
is fully set.
Lower the lid into the
trim. Lay finished floor
covering to match
height of lid.
