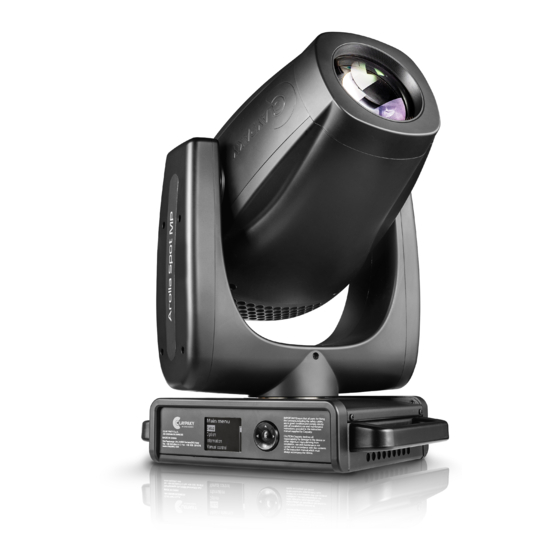

Clay Paky Arolla Spot MP Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Page
Contents
2
1.
3
2.
4
3.
4
5
5
6
8
4.
8
9
10
14
4.4 Rotating gobos
16
17
5.
17
6.

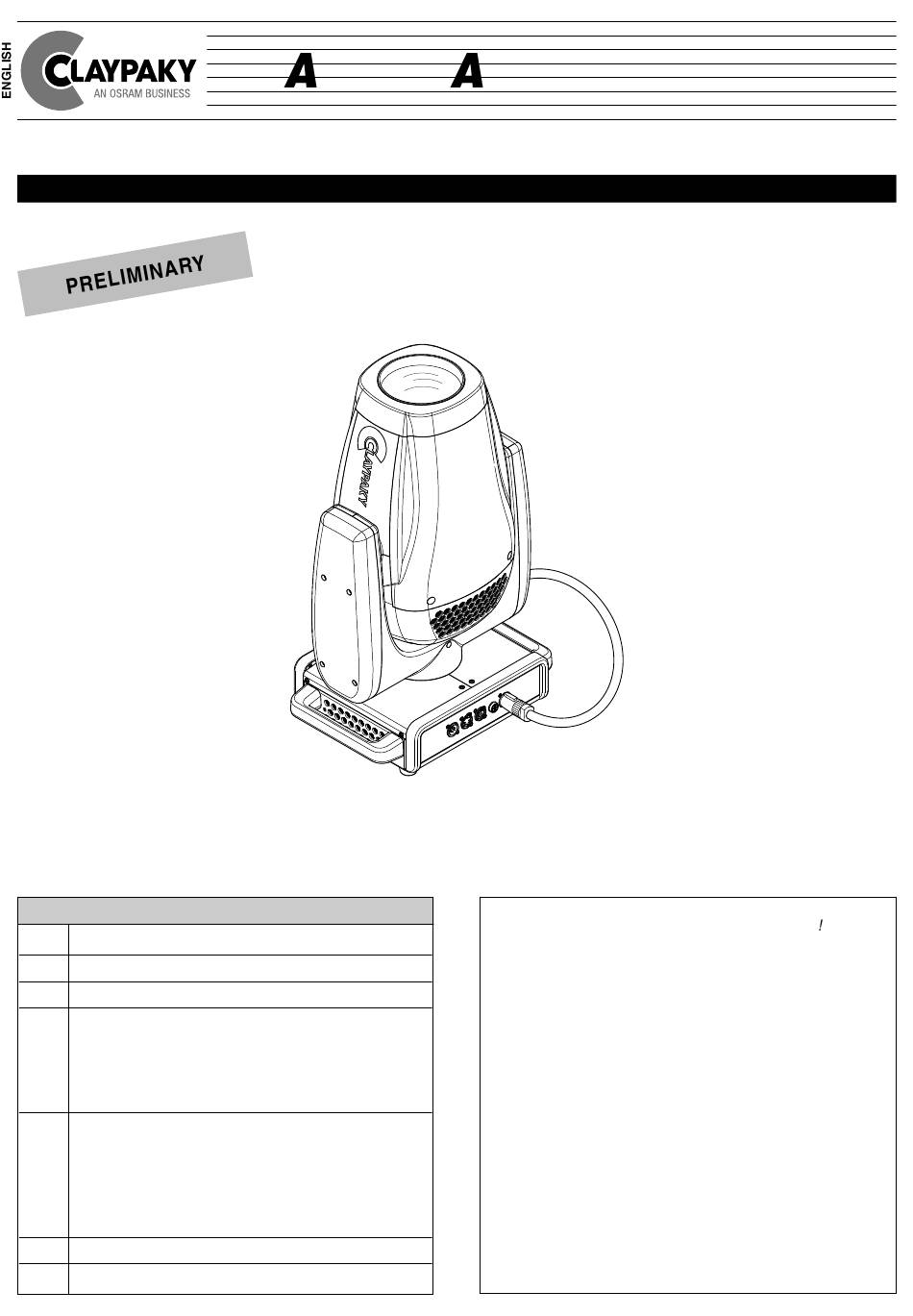

ROLL SPOT MP
INSTRUCTION MANUAL
INDEX
Congratulations on choosing a Claypaky product
We thank you for your custom.
Please note that this product, as all the others in the
rich Claypaky range, has been designed and made with
total quality to ensure excellent performance and best
meet your expectations and requirements.
CL3012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Arolla Spot MP and is the answer not in the manual?

Questions and answers

Related Manuals for Clay Paky Arolla Spot MP

Summary of Contents for Clay Paky Arolla Spot MP

  • Page 1: Table Of Contents

    ROLL SPOT MP CL3012 INSTRUCTION MANUAL INDEX Congratulations on choosing a Claypaky product Page Contents We thank you for your custom. Safety information Please note that this product, as all the others in the Unpacking and preparation rich Claypaky range, has been designed and made with total quality to ensure excellent performance and best Installation and start-up 3.1 Installing the fixture...

  • Page 2: Safety Information

    1. SAFETY INFORMATION SAFETY INFORMATION IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also available in digital format at the following link: www.claypaky.com Ref: FIS025 - Safety Information Arolla Spot/Profile MP INFORMAZIONI DI SICUREZZA IMPORTANTE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative a questo prodotto, sempre reperibili in versione digitale al seguente link: www.claypaky.com...

  • Page 3: Unpacking And Preparation

    2. UNPACKING AND PREPARATION 2 x 183102/805 Packing contents - Fig. 1 UNLOCKED LOCKED LOCKED UNLOCKED PAN Mechanism Lock and Release (every 90°) - Fig. 2 TILT Mechanism Lock and Release (every 45°) - Fig. 3 ROLL SPOT MP...

  • Page 4: Installation And Start-Up

    3. INSTALLATION AND START-UP 3.1 Installing the fixture Installing the projector - Fig. 4 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. Cod. 105041/003 available on request). This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.

  • Page 5: Connecting To Manis Supply

    3.2 Connecting to manis supply Connecting and disconnecting power cable - Fig. 6 Mains Connecting to the mains supply - Fig. 7 3.3 Connecting the control signal line: DMX / Art-Net DMX 512 5 PIN SCREEN SIGNAL SIGNAL Connecting to the control signal line (DMX) - Fig. 8 Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity.

  • Page 6: Switching On The Fixture And Basic Setup Maintenance

    3.4 Switching on the fixture and basic SetUp Dmx Address Warning Message Switching on the projector - Fig. 9 Switch-on the fixture. The projector starts resetting the effects. At the same time, the following information scrolls on the display: Model Firmware Dmx Address xxx Arolla...
  • Page 7 Functions of the buttons - Using the menu Confirms the displayed value, or activates the displayed function, or enters the successive menu. Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu. DOWN Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu. Return to the top level LEFT Enters the successive menu.

  • Page 8: Opening The Covers

    4. MAINTENANCE 4.1 Opening the covers 1/4 Turn 1/4 Turn Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section. Opening the head covers - Fig. 11. Closing the head covers - Fig. 12. ROLL SPOT MP...

  • Page 9: Periodical Cleaning

    4.2 Periodical cleaning Upper side NOTE: keep a careful cleaning of the ''CMY/colour filters assembly'' to prevent rapid deterioration. Light collimation system This product contains internal light collimation system. Avoid intense light from any angle. Upper side Lower side Periodical cleaning - Fig. 13 To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits.

  • Page 10: Effects Module Removal

    4.3 Effects module removal Upper side Extraction of the effect modules - Fig. 14. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 14, 15 and 16 in reverse order. ROLL SPOT MP...
  • Page 11 Upper side Lower side Extraction of the effect modules - Fig. 15. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 14, 15 and 16 in reverse order. Continue ROLL SPOT MP...
  • Page 12 Upper side Extraction of the effect modules - Fig. 16. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 14, 15 and 16 in reverse order. ROLL SPOT MP...
  • Page 13 Cleaning of the grids - Fig. 17. Continue ROLL SPOT MP...
  • Page 14 4.4 - Rotating gobos Bearing group replacement - Fig. 18 Gobo 4 INDEX Gobo 3 Gobo 5 Gobo 6 Gobo 2 Gobo 1 Gobo 7 Replacing rotating gobos (ø 22.9 mm – max 17 mm image – thickness 1.1 mm) - Fig. 19 - The rotating gobo wheel only use dichroic glass gobos (it is not possible to use metal gobos);...
  • Page 15 Bearing group replacement - Fig. 20 Gobo 4 INDEX Gobo 3 Gobo 5 Gobo 6 Gobo 2 Gobo 1 Gobo 7 Replacing rotating gobos (ø 22.9 mm – max 17 mm image – thickness 1.1 mm) - Fig. 21 - The rotating gobo wheel only use dichroic glass gobos (it is not possible to use metal gobos); - For more information contact Claypaky;...

  • Page 16: Battery Removal

    4.5 - Battery removal This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. ROLL SPOT MP...

  • Page 17: Dimensions

    5. DIMENSIONS 6. CAUSE AND SOLUTION OF PROBLEMS THE PROJECTOR WILL NOT SWITCH ON ELECTRONICS NON-OPERATIONAL PROBLEMS DEFECTIVE PROJECTION REDUCED LUMINOSITY POSSIBLE CAUSES CHECKS AND REMEDIES No mains supply. Check the power supply voltage. Light source exhausted or defective. Call an authorised technician. Signal transmission cable faulty or disconnected.
  • Page 18 ROLL SPOT MP...
  • Page 19 ROLL SPOT MP...
  • Page 20 CLAYPAKY - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035 -654311 - www.claypaky.com S.p.A.
