Connecting to Monitors

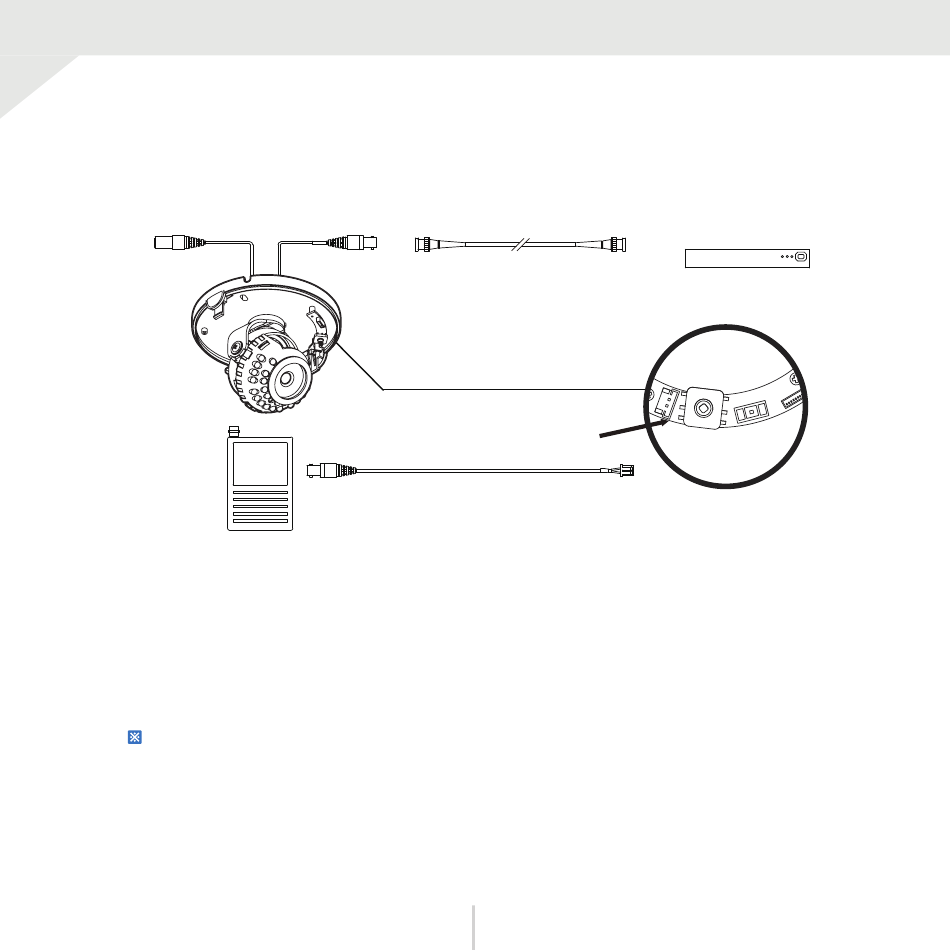

Use the diagram below to connect the camera to a Universal HD over Coax
monitor.
12VDC
Monitor
- Power connection - 12V DC/ 24V AC dual-voltage with auto polarity detection
and protection.
- All cameras are equipped with a test video output for on-site configuration.
NOTE: To use your Star-Light Plus™ 4K cameras at a lower resolution, you must
use a VMAX ® A1 4K™ DVR to access the camera's menu due to the cameras
being set to 4K as the default. A DVR that does not support 4K resolution may
recognize the camera, but will not deliver a picture.
COAX
Test video outuput
