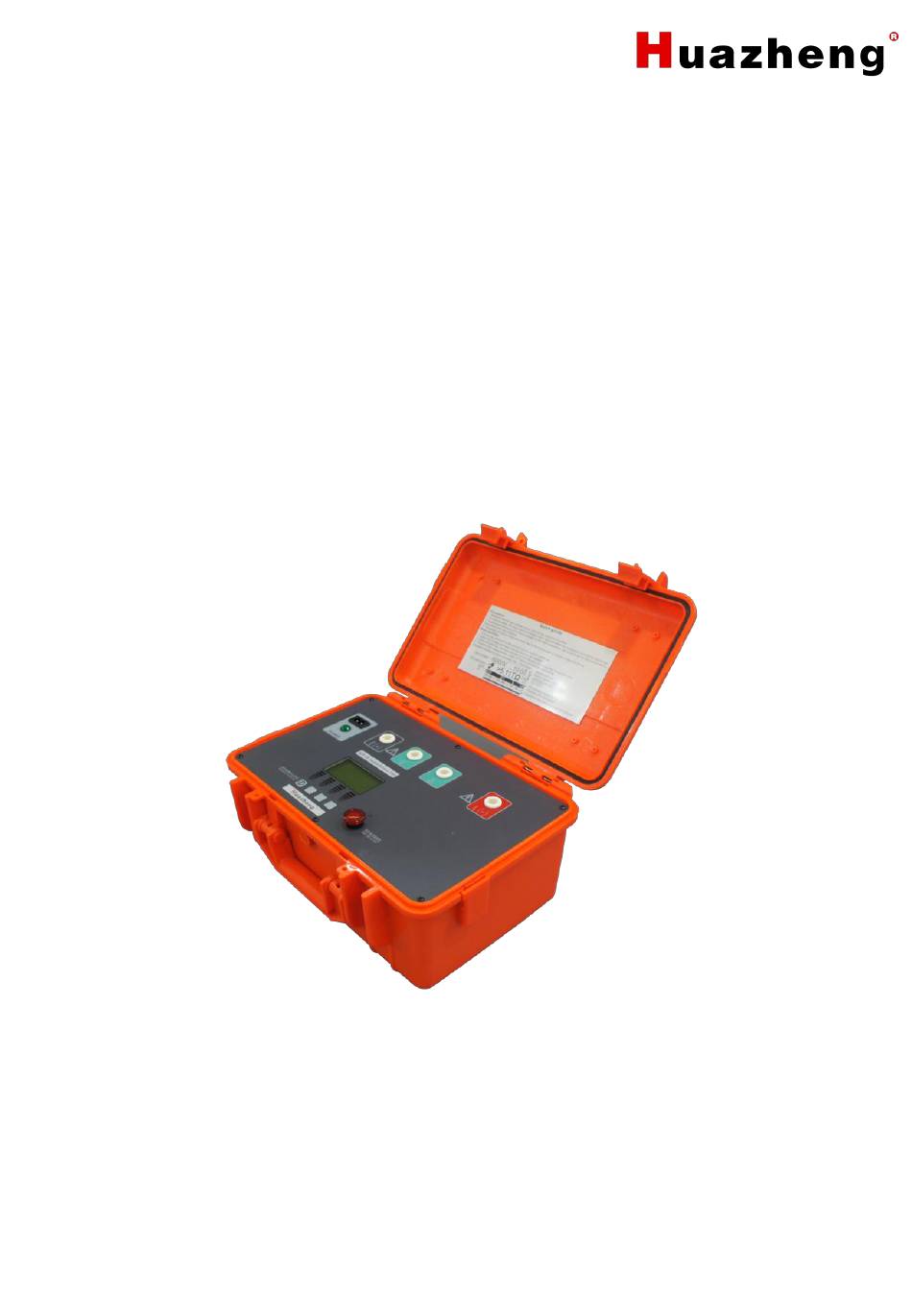

- Page 1 HZJY-15K Insulation Resistance Tester Huazheng Electric Manufacturing (Baoding) Co., Ltd...
- Page 2 Dear us er: Thank you for choosing HZ JY-15K Insulat ion Resistanc e Tes ter. We hope that this inst rum ent can mak e your work eas ier and more enjoyable, so that you can get the feeling of off ice aut omat ion in the test and analysis work.
-
Page 3: Table Of Contents
Contents I.Warning............................1 II. Feature............................2 III. Specification Parameter......................2 IV. Introduction of Instrument......................3 V. Instrument Using..........................7 VI. Packing List..........................8... -
Page 4: I.warning
I.Warning Design and manufacture of the instrument and testing achieves IEC61010 safety standards (electronic measuring product safety requirements), this manual including the safety of the instrument use and ensure the safety of equipment state, users must follow the warnings and safety regulations Please read the following instructions before use. Warning Instrument output voltage, before use, read and understand the instructions of ●... -
Page 5: Feature
Feature High-voltage insulation resistance tester, with 5 range: 500V, 1000V, 2500V, 5000V, 10000V, 15000V,test up to 15TΩ, manual voltage regulation function. ● Strict accordance with the safety standards for design ● Insulation resistance range 15TΩ @ 15 kv ● Short circuit current can be adjusted, maximum 5mA (Can be ordered as high as 10mA, short circuit current products). -
Page 6: Introduction Of Instrument
● Current test range：10mA ● current measure precision：5%+0.2nA ● short-circuit current： 5mA ● Capacitance test range：20uF ● Capacitance testing accuracy：15%+0.03uF ● Insulation resistance testing range and accuracy （T:23±5ºC ，RH :45 – 75%） range 500V 1000V 2500V 5000V 10000V accuracy Unspecified <1M <1M <1M... - Page 7 number Description number Description AC plug AC ON Test Port（E、G、L） LCD display HV LED ● Key and function Key numbered from left to right, the first for a total of five off down the power Key. number Description Press the switch on button startup, shutdown condition 2、3、4 functional key The TEST key, press and hold 1 s TEST, then stop (enter the...
- Page 8 Battery Indicator： 、 、 、 、 When the battery voltage shows just one more case should be timely charge, when the battery displaying flashing is automatically cut off the power at any time, should be recharged. charge：AC socket provided meet the requirements of the AC power supply for panel, ...
- Page 9 When the test time or manual stopped, display shows as shown in the table of the soft keys. Soft key Description Power Off (No operation, 3 minutes automatic shutdown) Back Return to the main menu Set test voltage: Manual 、500V、1000V、2500V、5000V、 10000V、15000V Veiw 15S、30S、60S、600S Insulation value ●...
-
Page 10: Instrument Using
V. Instrument Using measured DAR: 1. Select more than 1 minute length measurement. 2. Select the appropriate voltage and start. 3. The instrument automatically record 15 s and 60 s resistance, and calculate the absorption than after 60 seconds. Absorption ratio calculation method: DAR = R60 / R15;... -
Page 11: Packing List
VI. Packing List Item Main engine Power line Red test line Black test line Green test line...
