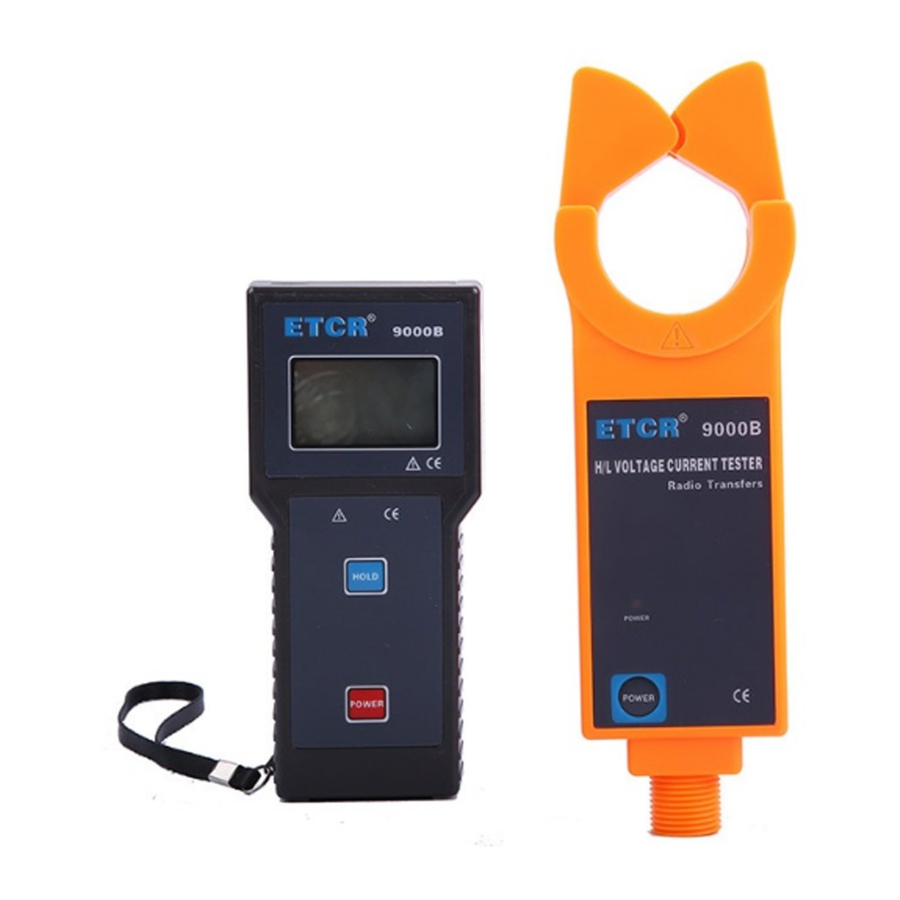

- Page 1 HZRC9000B High/Low Voltage Clamp Meter USER MANUAL Huazheng Electric Manufacturing(Baoding) Co.,Ltd...
-
Page 2: Table Of Contents
CONTENT Warning..................................1 I . Brief Introduction..............................3 II. Electrical Symbols..............................3 III．Series Model.................................4 IV．Technical Specification............................4 VI．LCD Display................................. 6 VII.Operation................................8 VIII.Replacing Batteries............................13 IX. Accessories................................14... -
Page 3: Warning
Warning Thanks for your purchase of HZRC9000B H/L Voltage Clamp Meter of our company. In order to make better use of this product, please make sure to: ——Read this manual in detail and the operator must totally understand this manual and be in proficient in operation of this meter before making test on spot. - Page 4 immediately and seal it up for keeping at once, which shall be dealt with by qualified authorization agency. The danger symbol “ “on the meter and the manual, the user must make safe operation according to the indication. The extremely dangerous symbol “ ”, the user must make safe operation according to the indication.
-
Page 5: Brief Introduction
HZRC9000B Series H/L Voltage Clamp Meter is connected with insulation rod, which can be used for measuring high voltage current that is below 60KV, on-line current measurement, also having peak... -
Page 6: Series Model
Model Accuracy Jaw Specification Description measurement HZRC 9000 0.00mA-1200A 0.01mA φ48mm base HZRC9000B 0.00mA-1200A 0.01mA φ48mm wireless IV．Technical Specification High voltage AC current measurement, low voltage AC current, leakage Function current measurement, on-line AC current supervision. Power Supply DC6V Alkaline Dry Battery (1.5V AAA X 4) - Page 7 Below 80%RH） 0.30A~49.9A: ±1.5%±5dgt 50.0A~199.9A: ±2.0%±5dgt 200A~600A: ±3%±5dgt 601A~1200A: ±4%±5dgt 99 Groups, during storage, the symbol “MEM” gives indication, “FULL” mark Data Storage will flash to indicate the memory has been full. Circuit Voltage Test for the circuit below 60KV (operated with insulation rod) Automatically maintain the height of the test value, usually in the test mode Peak Maintenance press PEAK key, PEAK lights, that is, to keep open the PEAK function, then...
-
Page 8: Lcd Display
φ32mm，1m/Section（5 Sections） Insulated Rod Dimension AC 100KV/rms (Between insulation rod and clamp core) Insulation Intension Anti-Dripping Type II Structure V. Structure 1. Double input toroid (including the boot area) 2. HZCR9000 Tester 3. LCD Display 4. PEAK Test Indication 5. PEAK Key 6. - Page 9 ⑸. 2-digit storage data serial number ⑹. Unit symbol ⑺. Date locked symbol ⑻. Decimal system radix point ⑼. 4-Digit LCD digital display 2．Explanation for Special Symbols Low battery symbol, when the voltage of battery is lower than 4.8V, this symbol display, ⑴.
-
Page 10: Vii.operation
⑶.——The current on test is: 571A ——Low battery symbol , please replace. ⑷.——Look up data of group 3 in storage ——The current on test is: 160.5A ⑸.—— “FULL” flash display: Storage is full of 99 groups ——It can’t store more unless delete storage ⑹.——“dEL”... - Page 11 Under HOLD mode, press POWER button for power off. Under general test mode, press POWER button to power off. Under PEAK testing mode， press POWE button to power off. Under data reference mode, firstly press POWER button for more than 3 seconds to exit from data reference mode, returning to normal test mode, then press POWER button to power off.
- Page 12 test has exceeded the maximum volume on the level. Please select a higher gear level or a meter with greater measurement limit. To pull backwards can make the meter remove from the lead on teat, as shown in Figure C, please try to keep the meter transducer domain perpendicular to the lead when moving away .
- Page 13 Attention! For the sake of safety, when test has been finished, please remove the meter away from the lead on test. 3.PEAK Test PEAK test: the maximum current test. The meter will make automatic comparison on the changes in measured current, indicating the maximum value and maintain it, when the meter is removed away from the lead on test, the test result will be kept consistently, suitable for the circuit test on those LCD data hard to be read directly.
- Page 14 7.Data Deletion Under data reference mode, press PEAK + POWER button to delete all the data in storage, and return to normal testing mode. During the deletion of data, it will display “dEL” symbol. 8.Data Transmission B Type: has the function of wireless data transmission. When the Meter under testing mode, the test result will be transferred to receiver by wireless transmission and the receiver will display test result real time, being clear at a glance.
-
Page 15: Viii.replacing Batteries
Press HOLD button once again to relieve data lock, return to data reception mode, “HOLD” symbol display. 4.Data Memory Under Date Reception mode, press HOLD button to maintain data, meanwhile, the receiver will automatically form serial numbers, and memory the current preserved data. During the storage, “MEM”... -
Page 16: Accessories
3. Press POWER button to check whether the meter can be powered on normally. If not, please repeat the operation according the step 2. IX. Accessories Tester 1PCS 1PCS *Receiver (HZRC9000B special ) Insulation Rod (1M/Section) 5 Sections Meter Box 1PCS 4 PCS（* or 8 PCS）...
