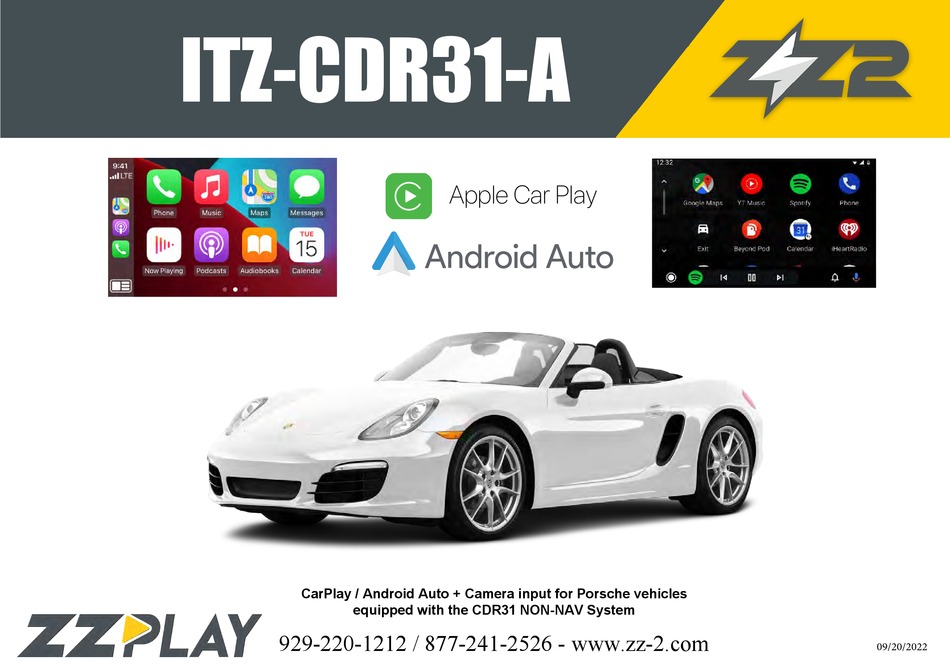

- Page 1 ITZ-CDR31-A Apple Car Play CarPlay / Android Auto + Camera input for Porsche vehicles equipped with the CDR31 NON-NAV System 929-220-1212 / 877-241-2526 - www.zz-2.com 09/20/2022...
- Page 2 Components Microphone (optional) Touch/Video PCB Module Modification Ribbon ZZPlay Interface Touch Cable BT/WIFI SMB Antenna Main Harness Velcro for module Switching/LVDS Harness 09/20/2022...
- Page 3 CDR31 Radio Modification 3. Using a small flathead screwdriver, carefully pry all clips (while applying pressure to remove screen) around the plastic radio face. The entire front LCD panel and button panel is 1. Remove the connected vis ZIF connectors only (no ribbons to the radio chassis). radio from the dashboard and bring to a bench...
- Page 4 6. Carefully and slowly (do not tear ribbon), flip the ribbon over such that the smaller touch-ribbon side lines up with the OE 4-pin touch connector. Once again, the pin-side of the 4-pin ribbon must face downwards. 7. Once the ZZ2 ribbon is connected to the board, connect the leftover OE ribbons back to the ZZ2 ribbon.
- Page 5 8. Using pliers (or similar method), cut off 1 metal tab from the radio chassis mount as shown. 9. Using cloth tape (or similar method), lay over the serrated edge from tab removal 10. Route the ribbon (step 8) to protect the ribbon. Be very cautious when lining up the screen face to the like shown leaving slack ZIF connectors (there are alignment pegs towards the middle to help).
-
Page 6: Installation Diagram
CDR31 Installation Diagram Notes: - The radio must be in 'AUX' mode in order for audio playback through the OE speakers. - Make certain the OE Fiber- Optic cables are removed from the OE radio plug and moved to the radio side of the T-Harness. - If using (green) reverse wire trigger, 'Reversing Mode' must be set to '12V Active' inside Car... -
Page 7: Dip Switch Settings
DIP Switch Settings ON : OFF : Disconnect power before adjusting dip switches. Controlling CarPlay/ User Operation Android Auto is used fully via the touch screen. NOTE: If after installation there is a All CarPlay/AA/Interface problem with touch commands are performed on the touch response, press and screen for CDR31. - Page 8 CarPlay mode, if ever necessary, step go to Settings > Bluetooth and to have caller ID and access to your select the ZZ2 app to go to the interface's the phone should be able to find a contacts through CarPlay.
- Page 9 ZZPLAY Interface To enter To enter Android Currently connected devices CarPlay Mode Auto Mode Main Menu For Screen-Mirroring iPhone & Android devices. For uninterrupted USB Audio Playback To view All Settings Menu for Bluetooth devices interface To view (typically front) For uninterrupted connected camera USB Video Playback...
- Page 10 ZZPLAY Interface Settings Menu The next few pages overview the ZZPLAY interface, navigating settings and explains entering/exiting all menus. There are (2) menu systems that exist outside of the OE radio system: Carplay (or Android Auto) menu and the ZZPLAY Interface Menu. They operate independent of each other (the ZZPLAY Interface menu will function regardless of whether or not a phone is connected to the module).
- Page 11 ZZPLAY Interface Settings Menu Display: Allows adjustments for brightness, contrast & saturation Sound: Allows bass, mid & treble adjustments for audio output. System: Shows hardware & Software information. Factory Mode: Echo Cancellation: Run this to get the best possible performance out of the provided microphone (if equipped) Advanced Setting: Stores settings that do not need adjustment at this time from end user.
- Page 12 ZZPLAY Interface Settings Menu Question: I can't hear any audio from the CarPlay/Android Auto system. Answer: Your OE system must be resting on AUX mode in order to hear any sound from the kit. This includes during phone calls. NOTE: Some systems AUX input are not labeled 'AUX', it may be labeled 'Media Interface' or there may be an audio conversion to the vehicle's USB input.
- Page 13 support@zz-2.com 929-220-1212 Toll free: 877-241-2526 Extension 2: Tech Support Agreement: End user agrees to use this product in compliance with all State and Federal laws. ZZDOIS LLC dba ZZ-2 is not to be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to retailer.
