INSTRUCTION MANUAL

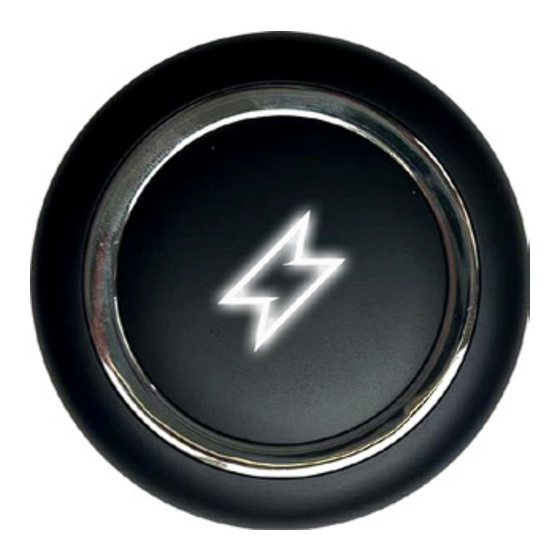

ZEUS ULTRA 2
Video Streaming
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZEUS ULTRA 2 and is the answer not in the manual?

Questions and answers

David
June 26, 2025

How do I perform a factory reset on my Zeus 2 ultra

Subscribe to Our Youtube Channel

Summary of Contents for ZZ2 ZEUS ULTRA 2

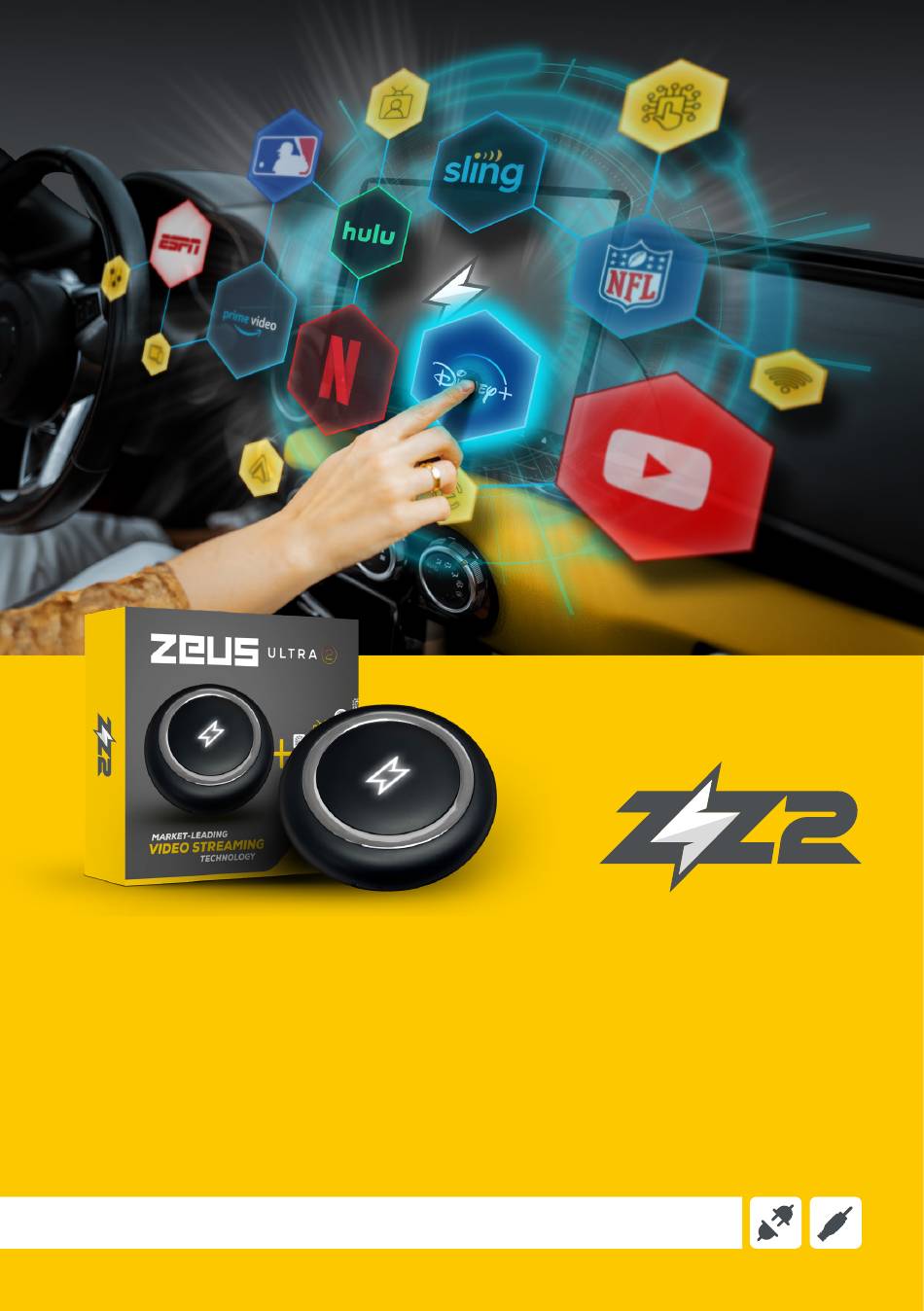

  • Page 1 INSTRUCTION MANUAL ZEUS ULTRA 2 Video Streaming Version 1.0...
  • Page 2: Safety Precautions

    2 - Hardware parameters Processor Storage Operating System QualComm Octa-core 1.8Ghz 128 GB Android 13 3 - Contents • ZEUS ULTRA 2 • USB-A to USB-C Cable • USB-C to USB-C Cable • USB Separate Power (optional) • SIM removal tool...
  • Page 3: Vehicle Connection

    If another session is active, even wirelessly, the Zeus will not load. Connect the Type-C side to the ZEUS ULTRA 2 input and the USB side to the vehicle’s USB input. The Zeus Ultra 2 emulates an iPhone - so the radio connected will display a ‘CarPlay’ connection -...
  • Page 4: Internet Connection

    2 - Use the removal clip to eject and remove the SIM card compartment. 3 - Turn the device upside down, place the SIM card in the compartment as shown in the photo abo- ve and insert it into the SIM card slot on the ZEUS ULTRA 2...
  • Page 5 4 - Reconnect the USB cable and wait for the ZEUS ULTRA 2 to be initialized. The “4G” icon should appear in the top corner, indicating that the connection was successful. 7.2 - Connection using Wi-Fi 1 - Tap the “Settings” icon, then select “WiFi”.
  • Page 6: Interface Menu

    3 - Tap on the preferred network, enter the password and tap “CONNECT”. 8 - Interface menu 8.1 - Home screen Time WiFi, Bluetooth and mobile data connection status Last accessed apps Tap to open the start menu. Press to activate Installed app icons Google Assistant...
  • Page 7 8.2 - Drop-down menu When you tap the screen, a circular icon will appear. Tap this icon to access the drop-down menu. Home - Returns to the main Allows you to select another screen app for split-screen use Return - Returns to the last Closes all running apps and screen displayed clears device memory...
  • Page 8 9.1.1 - Wi-Fi Accesses the Wi-Fi connection settings A circular icon appears when you tap the screen. Tap this icon to access the drop-down menu. 9.1.2 - Language Accesses the language settings To change the language, tap on the required language and drag to the first position 9.1.3 - Date and time Access the date and time settings, time zone and time format...
  • Page 9 9.1.4 - Bluetooth Accesses the Bluetooth connection settings Displays the list of Shows the last calls of paired devices Accesses the Accesses the dialpad contact list Accesses the Returns to the bluetooth audio previous menu player Enables / disables bluetooth Device name Automatic connection (on/off)
  • Page 10 *NOTE: The features on this page require that an active SIM card be used with the Zeus module (which would provide you cell service and a different 9.1.4.1 - Contacts* phone number association than your personal cell phone). Tap to search by name Starts a call to the selected...
  • Page 11 9.1.4.3 - Paired devices Tap to select the device Search for new devices Connects / disconnects the selected device Removes the selected device To delete a paired device, tap on the name of the device to select it. Tap the icon to delete.
  • Page 12 9.1.4.5 - Bluetooth audio player Play / Pause Next track Rewind track 9.1.5 - Application Info Displays the list of all installed apps. Tap on the app you want to uninstall, force close and configure notifications, permissions, storage and cache, mobile data and Wi-Fi, and other settings.
  • Page 13 9.1.6 - More Accesses the system settings 9.1.7 - Display Settings Accesses display settings and LED color setting Allows you to choose Enables/Disables the drop-down menu Creates shortcut for split LED color of the screen between 2 apps device. Changes the home screen style Enables navigation using...
  • Page 14 9.1.7.1 - LED color setting Tap the color wheel to select the desired color Tap the button to switch between the colors or turn off the 9.1.7.2 - Launcher style type Selects style 1 Selects style 2 Style 1 Style 2...
  • Page 15 9.1.7.3 - Split App Tap to select the ratio Tap to select the app to be displayed Tap to select the app to be displayed on the left side of the screen on the right side of the screen Tap to create a shortcut with both apps in the application menu To create a shortcut with two split-screen apps, you need to select the two apps that will be displayed.
  • Page 16 The app icons will be displayed. Tap on “SAVE” to create the shortcut Tap on “ADD TO HOME SCREEN” Return to the main menu and locate the icon with the selected applications Return to the main menu and locate the icon with the selected applications 9.1.8 - Navigation setup Accesses GPS settings...
  • Page 17 Sets the default browser application Sets the navigation application to be displayed on the home screen (only for style 2) Tap on the map app of your choice to set it as default 9.1.9 - Original vehicle Settings Interface integration settings with the vehicle system Setting the video definition Enables / disables the...
  • Page 18 9.1.10 - HDMI Settings Access the HDMI output settings Enables/disables HDMI switch Enables / disables the HDMI sound switch. When disabled, the interface does not send audio to the HDMI output, only video 9.1.11 - Other Settings Accesses other device settings Allows to change Enable / Disable the Google...
  • Page 19 9.1.12 - Help center Only used if requested by technical support 9.1.13 - Version Displays software, hardware and GPS info...
  • Page 20 Tap on the “SpeedPlay” icon. When the connection screen appears, follow the steps below Go to “SETTINGS > BLUETOOTH”. In the list of Bluetooth devices, select “ZEUS ULTRA 2” A few notifications will be displayed on the cell phone screen. Tap on “Pair”, “Allow” and “Use CarPlay”...
  • Page 21 9 - Wireless Android Auto connection To enable a wireless Android Auto connection, activate Bluetooth and Wi-Fi on your phone Tap on the “SpeedPlay” icon. When the connection screen appears, follow the steps below Go to “SETTINGS > CONNECTIONS > BLUETOOTH”. In the list of Bluetooth devices, select “ZEUS ULTRA 2”...
  • Page 22 To enable the output for rear screens, follow the steps below: Select the “HDMI switch” option. If you want the audio from the ZEUS ULTRA 2 to be sent to the rear screens, activate the “HDMI sound switch” option. Otherwise, disable this option.
  • Page 23 Tap the drop-down menu and tap the “Dual Zone” icon. The video will be displayed on the rear screen. To select the app to be displayed on the main screen, return to the start menu and select the app.
  • Page 24: Installing Apps

    11 - Installing Apps 11.1 - Install via PlayStore To install apps from Play Store, you must have a Google account. In the main menu, tap the ‘Play Store’ icon Tap on “Sign in” and enter the e-mail address used in your Google account Password I will use this device Show password...
  • Page 25 I agree Tap “I agree” to accept Google’s terms of service Enter the name of the app and tap “Install” Return to the main menu and locate the installed application...
  • Page 26 11.2 - Install via APK Download the APK of your choice and copy it to a micro SD card. Insert the micro SD into the ZEUS ULTRA 2 and follow the steps below: Tap the “ES File Explorer” icon Tap in “SD card” and find the apk of your choice...
  • Page 27: Warranty Procedures

    1 - Reach out to our Tech Support team If you are having technical issues, please get in touch with ZZ2 Tech Support via phone or email. Please have serial number available.
  • Page 28 877-241-2526 www.zz-2.com info@zz-2.com /zz2llc...
