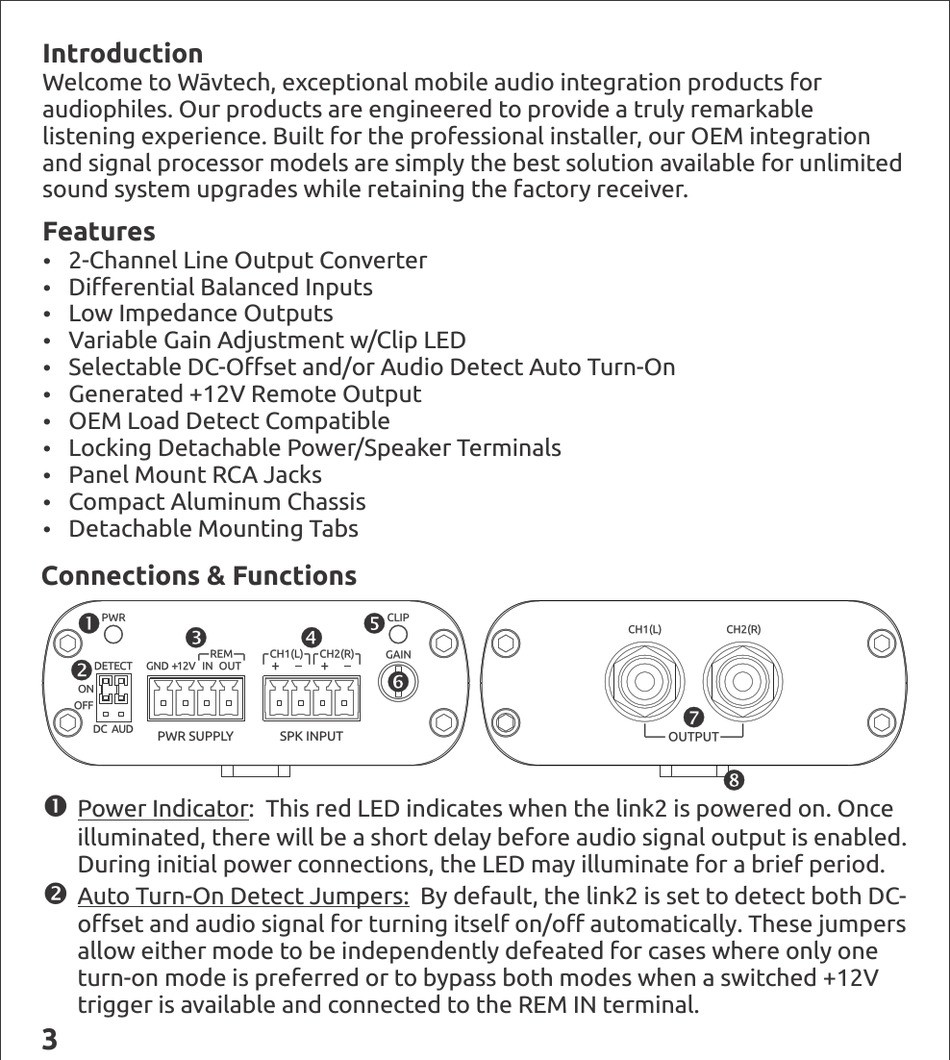

Introduction
Welcome to Wāvtech, exceptional mobile audio integration products for
audiophiles. Our products are engineered to provide a truly remarkable
listening experience. Built for the professional installer, our OEM integration
and signal processor models are simply the best solution available for unlimited
sound system upgrades while retaining the factory receiver.
Features
2-Channel Line Output Converter
Ÿ
Differential Balanced Inputs
Ÿ
Low Impedance Outputs
Ÿ
Variable Gain Adjustment w/Clip LED
Ÿ
Selectable DC-Offset and/or Audio Detect Auto Turn-On
Ÿ
Generated +12V Remote Output
Ÿ
OEM Load Detect Compatible
Ÿ
Locking Detachable Power/Speaker Terminals
Ÿ
Panel Mount RCA Jacks
Ÿ
Compact Aluminum Chassis
Ÿ
Detachable Mounting Tabs
Ÿ
Connections & Functions
Œ
Power Indicator: This red LED indicates when the link2 is powered on. Once
illuminated, there will be a short delay before audio signal output is enabled.
During initial power connections, the LED may illuminate for a brief period.

Auto Turn-On Detect Jumpers: By default, the link2 is set to detect both DC-
offset and audio signal for turning itself on/off automatically. These jumpers
allow either mode to be independently defeated for cases where only one
turn-on mode is preferred or to bypass both modes when a switched +12V
trigger is available and connected to the REM IN terminal.
3
