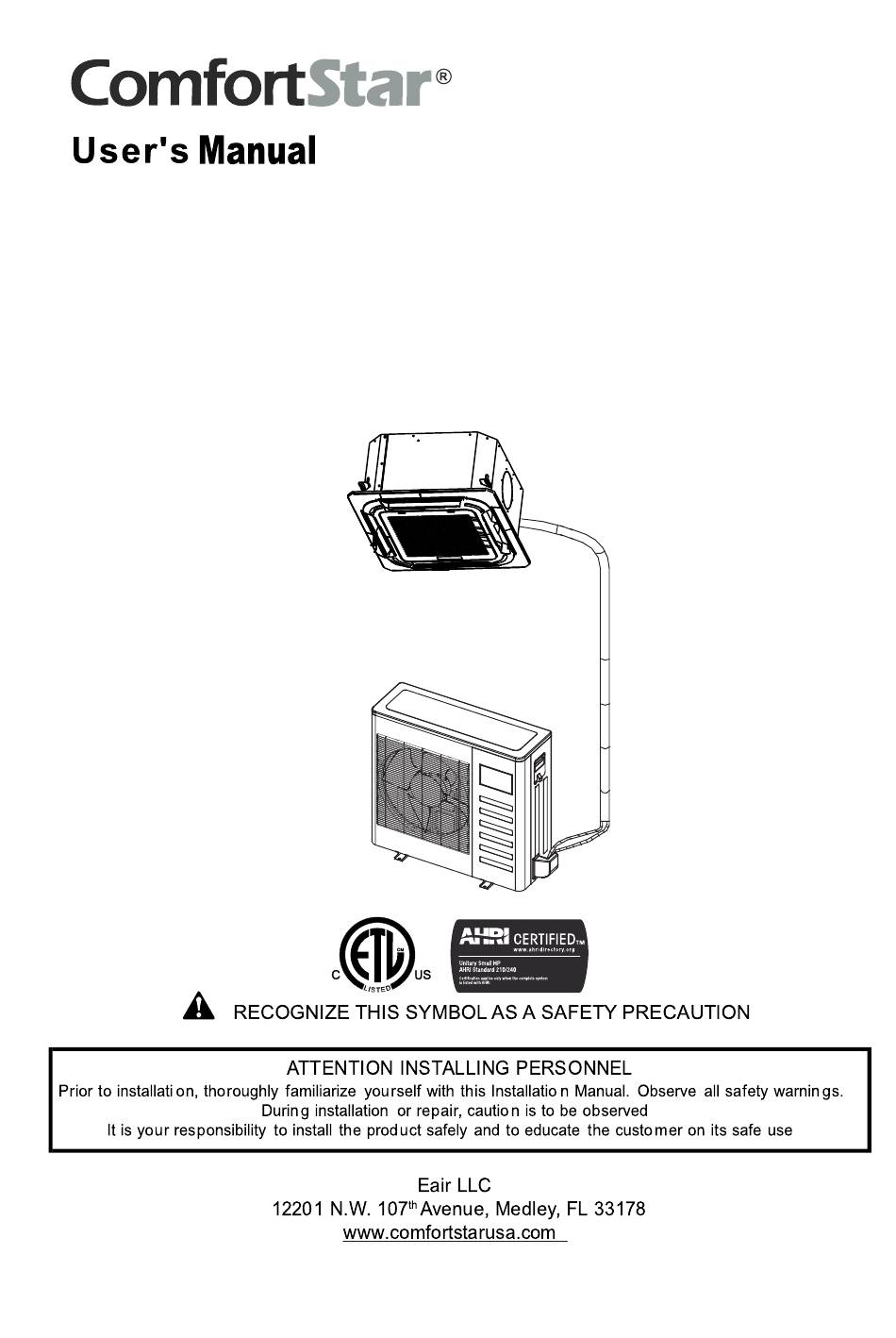

- Page 1 Indoor Unit :TPA-09 TPA-12 TPA-18 TPA-24 TPA-36DU TPA-48DU Outdoor Unit :CPP009CD(O) CPP012CD(O) CPP018CD(O) CPP024CD(O) CPP036CD(O)-DU CPP048CD(O)-DU...

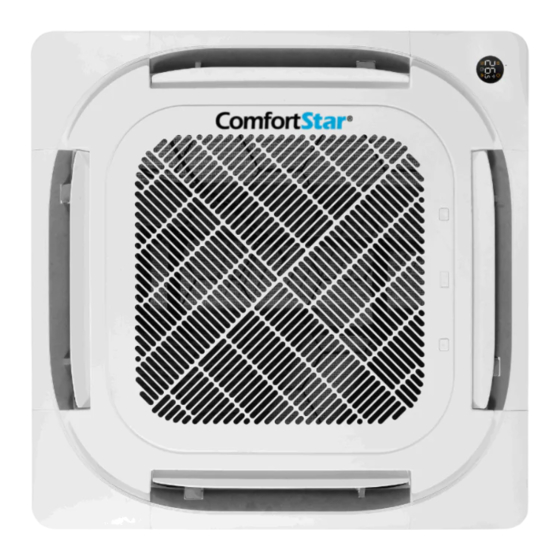

- Page 2 INDOOR UNIT OUTDOOR UNIT Air-in grill Air flow louver(at air outlet) Display panel Drain pump(drain water from indoor unit) Remote controller Drain pipe Refrigerant pipe Air outlet Air inlet Air filter(inside air-in grill) Air outlet Air inlet Air inlet NOTE All the pictures in this manual are for explanation purpose only.
-
Page 3: Table Of Contents
It is not good for your health to expose your body to the CONTENTS PAGE air flow for a long time. 1.IMPORTANT SAFETY INFORMATION............1 Do not insert fingers, rods or other objects into the air 2.PARTS NAMES..................2 inlet or outlet. When the fan is rotating at high speed, it will cause injury. -
Page 4: Parts Names
If the supply cord is damaged, it must be replaced by the Do not operate the air conditioner with a wet hand. manufacturer, its service agent or similarly qualified An electric shock may happen. persons in order to avoid a hazard. Do not touch the heat exchanger fins. -
Page 5: Hints For Economical Operation
4. HINTS FOR ECONOMICAL OPERATION Table 3-1(for inverter type air conditioner) Temperature The following should be noticed to ensure an economical Cooling operation Heating operation Drying operation Mode operation. 0℃～30℃ 10℃～32℃ Room temperature 17℃～32℃(62℉～90℉) Adjust the air flow louver properly and avoid direct air flow to (32℉～86℉) (50℉～90℉) room inhabitants. -
Page 6: Maintenance
6. MAINTENANCE Take out the air-in grill (together with the air filter shown in Fig.6-1). Pull the air-in grill down at 45 and lift it up to take out the grill. CAUTION Dismantle the air filter. Before you clean the air conditioner, be sure the power supply is off. -
Page 7: Following Symptoms Are Not Air Conditioner Troubles
7. FOLLOWING SYMPTOMS ARE NOT AIR A continuous low hissing sound is heard when the system is in CONDITIONER TROUBLES operation. This is the sound of refrigerant gas flowing through both indoor and outdoor units. Symptom 1: The system does not operate A hissing sound which is heard at the start or immediately after stopping operation or defrost operation. - Page 8 Table 8-1a (Applicable to inverter air conditioner only) 16.1 Indoor Unit Error Display Operation Timer lamp Display LED STATUS lamp ☆ 1 time Indoor unit EEPROM error Communication malfunction between indoor and ☆ 2 times outdoor units. ☆ 4 times Indoor fan speed has been out of control Indoor room temperature sensor T1 open circuit or short ☆...
- Page 9 Table 8-2 Symptoms Causes Solution Power failure. Wait for the comeback of power. Power switch is off. Switch on the power. Fuse of power switch may have burned. Replace the fuse. Unit does not start Batteries of remote controller exhausted Replace the batteries or check the or other problem of controller.
- Page 10 TECHNICAL BULLETIN Heat Sink Compound (Thermal Paste) Make sure to use Heat Sink Compound (not provided) when replacing Mini-Split electronic boards. Clean up thoroughly old paste on chips located underneath the board, and radiator (fin surface). Evenly spread new paste on chips and radiator, and gently screw board back on radiator to maximize heat exchange.
