ComfortStar Indoor Unit :TPA-09 Installation Manual

Hide thumbs Also See for Indoor Unit :TPA-09:

Advertisement

Table of Contents

Indoor Unit :TPA-09 TPA-12 TPA-18
TPA-24 TPA-36DU TPA-48DU
Outdoor Unit :CPP009CD(O) CPP012CD(O) CPP018CD(O)
CPP024CD(O) CPP036CD(O)-DU CPP048CD(O)-DU
If used as MULTI unit, please refer to the Installation & operation manuals packed with outdoor unit.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Indoor Unit :TPA-09 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ComfortStar Indoor Unit :TPA-09

Summary of Contents for ComfortStar Indoor Unit :TPA-09

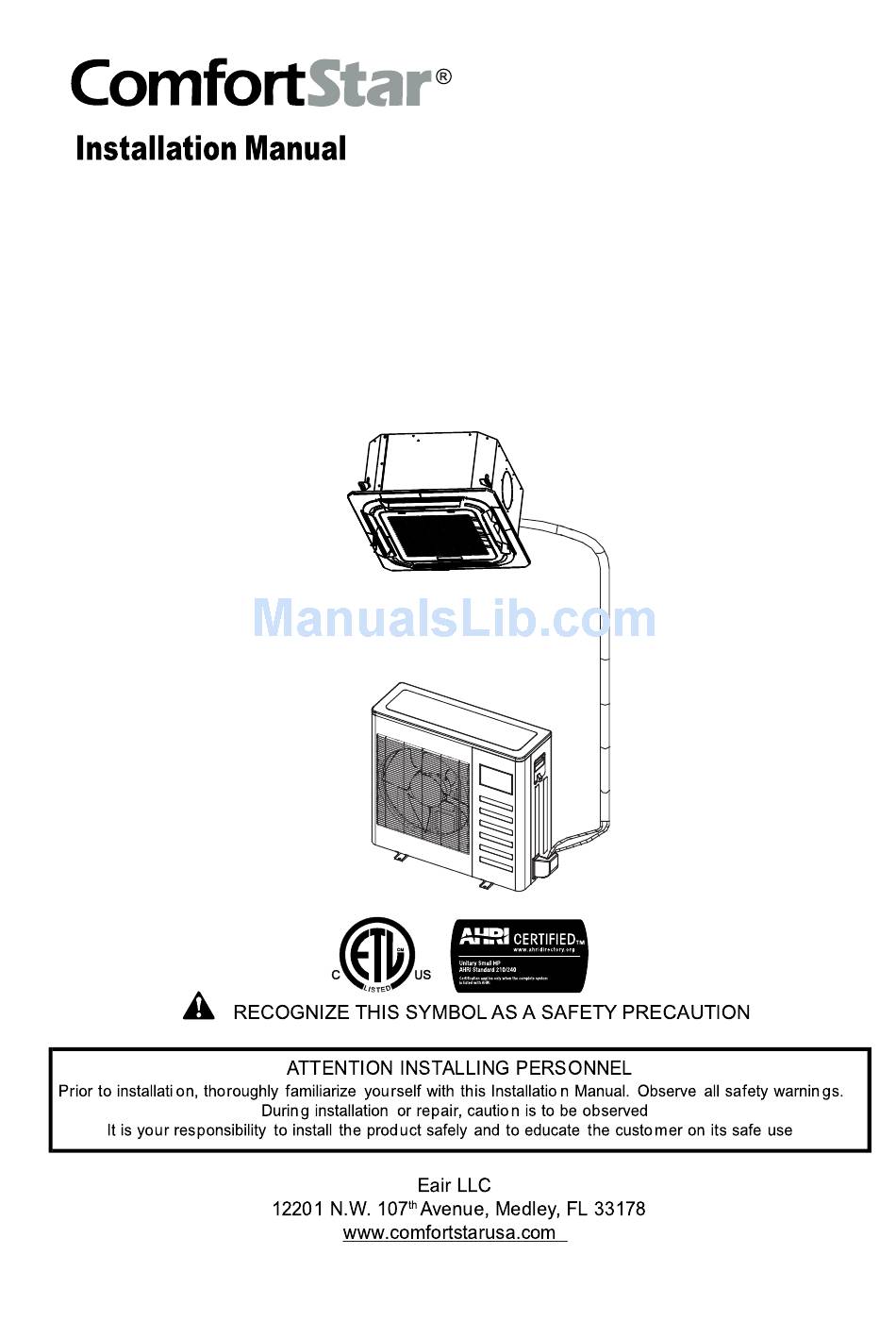

  • Page 1 Indoor Unit :TPA-09 TPA-12 TPA-18 TPA-24 TPA-36DU TPA-48DU Outdoor Unit :CPP009CD(O) CPP012CD(O) CPP018CD(O) CPP024CD(O) CPP036CD(O)-DU CPP048CD(O)-DU If used as MULTI unit, please refer to the Installation & operation manuals packed with outdoor unit.

  • Page 2: Table Of Contents

    CONTENTS PAGE Install according to this installation instructions strictly. If installation is defective, it will cause water leakage, electrical shock and fire. 1. PRECAUTIONS..............When installing the unit in a small room, take measures 2. INSTALLATION INFORMATION ..........against to keep refrigerant concentration from exceeding ............

  • Page 3: Installation Information

    If the refrigerant leaks during installation, ventilate the The appliance shall be installed in accordance with national area immediately. wiring regulations. Toxic gas may be produced if the refrigerant comes into the place contacting with fire. Do not operate your air conditioner in a wet room such as a bathroom or laundry room.

  • Page 4: Attached Fittings

    3. ATTACHED FITTINGS Please check whether the following fittings are of full scope. If there are some spare fittings , please restore them carefully . NAME SHAPE QUANTITY 1. Installation paper board Installation Fittings (on some models) 2. Out-let pipe sheath (on some models) 3.

  • Page 5: Inspecting And Handling The Unit

    4. INSPECTING AND HANDLING THE UNIT At delivery, the package should be checked and any damage should be reported immediately to the service agent. When handling the unit, take into account the following: Fragile, handle the unit with care. Keep the unit upright in order to avoid compressor damage.

  • Page 6: Install The Main Body

    5.2 Install the main body The existing ceiling (to be horizontal) Cut a quadrangular hole of 34.6x34.6inch in the ceiling according to the shape of the installation paper board. (Refer to Fig.5-2) The center of the hole should be at the same position of that of the air conditioner body.
  • Page 7 Install the panel Relocate the installation cover. Fasten the rope of installation cover on the bolt of the Align the swing motor on the panel to the tubing joints of the installation cover. (Refer to Fig.5-14-left) body properly. ( Refer to Fig.5-10) Press the installation cover into the panel slightly.
  • Page 8 NOTE 3.3-4.9ft <19.7inch Lean over 1/50 All the pictures in this manual are for explanation purpose only. They may be slightly different from the air conditioner you purchased(depend on model).The actual shape shall prevail. Pump-pipe clasp (the fittings) Fig.5-15 Test cap Fig.5-16 Drainage test Drainage test...
  • Page 9 5.4 Install the distribution duct Conditioned air can be distributes by means of a distribution duct. MODLE Ø3in 3 in 3.15inch Fig.5-17 NOTE model 24K Series A=6.3inch; Series B=3inch model 36K,48K Series A=6.3inch; Series B=3.7inch In case of two duct connection In case of one duct connection The air volume in duct is around 300-360m3/h for model 18 The air volume in one duct is around 200-260m3/h for model...

  • Page 10: Outdoor Unit Installation

    6. OUTDOOR UNIT INSTALLATION NOTE 6.1 Installation Place All the pictures in this manual are for explanation The outdoor unit should be installed in the location that purpose only. They may be slightly different from the meets the following requiements: air conditioner you purchased(depend on model).The actual shape shall prevail.
  • Page 11 7.1 Vacuum with vacuum pump Model CPP009CD(O) Use the vacuum pump which vacuum level lower than inch 30.3 11.8 21.9 33.1 19.2 11.7 -0.1MPa and the air discharge capacity above 40L/min. CPP012CD(O) inch 31.5 13.1 21.8 34.3 20.2 13.4 The outdoor unit is not necessary to vacuum, don’t open the CPP018CD(O) outdoor unit gas and liquid pipe shut-off valves.

  • Page 12: Refrigerant Pipe

    The Procedure of Connecting Pipes 8. INSTALL THE CONNECTING PIPE Drill a hole in the wall (suitable just for the size of the wall conduit), then set on the fittings such as the wall conduit and Check whether the height drop between the indoor unit its cover.
  • Page 13 Table 8-3 Connect the indoor unit at first, then the outdoor unit. Tightening torque N.M (Turn clockwise to close) Stop Maintenance nut Bend the tubing in proper way. Do not harm to them. Valve size Shaft (valve body) (Valve lid) Ø6.4 Bend the pipe with thumb 5.4～6.6...

  • Page 14: Connect The Drain Pipe

    9. CONNECT THE DRAIN PIPE Manifo ld valv e Pressu re meter Multi-m eter -76 c mHg Install the drainpipe of the indoor unit Hi-leve r Lo-lev er Charg e hos e Charg e hos e You can use a polyethylene tube as the drainpipe Vac uum p ump (out-dia.1.46-1.54in, in-dia.1.26in).

  • Page 15: Wiring

    Install the drain joint of the outdoor unit NOTE Remark per EMC Directive 2004/108/EC Fit the seal into the drain joint, then insert the drain joint into the For to prevent flicker impressions during the start of the base pan hole of outdoor, rotate 90° to securely assemble them. compressor (technical process) following...

  • Page 16: Test Operation

    11. TEST OPERATION 10.2 Wiring figure (Refer to Fig.10-1 Fig.10-8) The test operation must be carried out after the entire installation has been completed. 10.3 Outdoor unit Please confirm the following points before the test operation: Remove the electric parts cover from the outdoor unit. The indoor unit and outdoor unit are installed properly.
  • Page 17 CAUTION The power supply must comply with the rating label. Wiring figure Indoor & Outdoor connection: CAUTION The wiring must be operated according to the wiring scheme,or it damages the unit. Before obtaining access to terminals, all supply circuits must be disconnected.
  • Page 18 TECHNICAL BULLETIN Heat Sink Compound (Thermal Paste) Make sure to use Heat Sink Compound (not provided) when replacing Mini-Split electronic boards. Clean up thoroughly old paste on chips located underneath the board, and radiator (fin surface). Evenly spread new paste on chips and radiator, and gently screw board back on radiator to maximize heat exchange.
