U31/I31 GAS INSERT
ZERO CLEARANCE KIT
PLEASE KEEP THESE INSTRUCTIONS
FOR FUTURE REFERENCE
WARNING:
Improper installation, adjustment,
alteration, service or maintenance
can cause injury or property dam-
age. Refer to this manual.
assistance or additional information
consult an authorized installer, serv-
ice agency or the gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapours and liquids in
the vicinity of this or any other appli-
ance.
Installation and service must be per-
formed by an authorized installer,
service agency or the gas supplier.
908- 005
KIT # 410- 905
FOR YOUR SAFETY
What to do if you smell gas:
! ! ! ! ! Do not try to light any
For
appliance
! ! ! ! ! Do not touch any electri-
cal switch: do not use
any phone in your build-
ing.
! ! ! ! ! Immediately call your
gas supplier from a
neighbour's
Follow the gas suppli-
er's instructions.
! ! ! ! ! If you cannot reach your
gas supplier, call the fire
department.
phone.
01/08/09
Advertisement
Table of Contents
Related Manuals for Regency Fireplace Products Masport 410 905
Summary of Contents for Regency Fireplace Products Masport 410 905

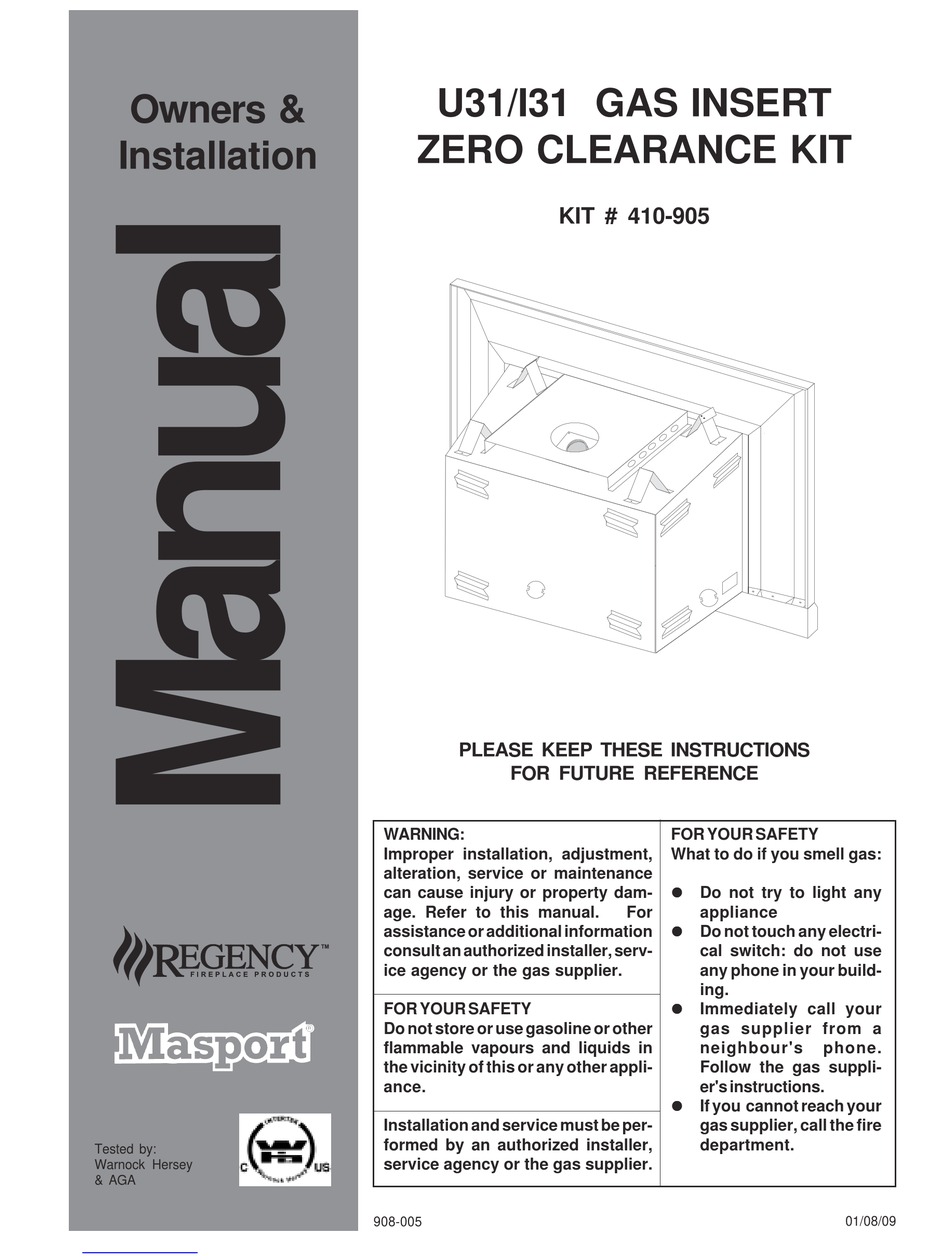

- Page 1 U31/I31 GAS INSERT Owners & ZERO CLEARANCE KIT Installation KIT # 410- 905 PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE WARNING: FOR YOUR SAFETY Improper installation, adjustment, What to do if you smell gas: alteration, service or maintenance ! ! ! ! ! Do not try to light any can cause injury or property dam- age.
-
