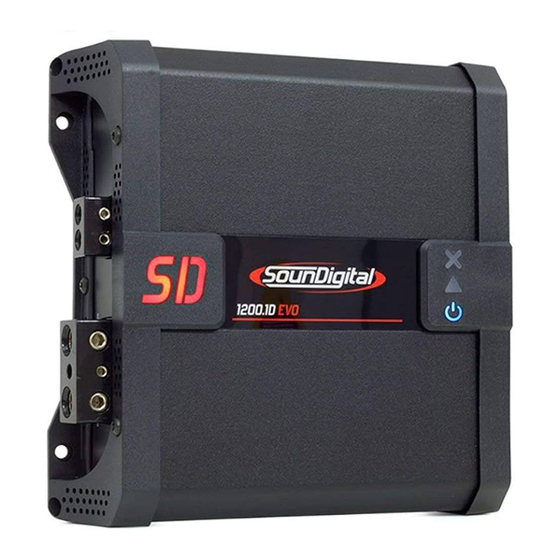

Summary of Contents for Soundigital 1200.1D EVO
- Page 1 1200.1D Owner's Manual English...
- Page 2 Ÿ continuous sound pressure over 85 dB may cause Efficiency – The SounDigital Class D amplifiers have a irreversible hearing loss. total efficiency (power source + output) higher than 70%, assuring a battery consumption and a heating lower than the expected.
- Page 3 PANELS DESCRIPTION...
- Page 4 PANELS DESCRIPTION Audio Output RCA connector; Audio Input RCA connector; Variable Low Pass Filter control (50Hz - 500Hz); Selector switch - low pass filter / filter off / audio mute; Variable High Pass Filter control (5Hz - 60Hz); Variable signal gain control; Variable bass boost control (0dB - +12dB);...
- Page 5 INSTALLATION Eletrical Dimensioning Choose a proper place to install the amplifier and For proper operation your amplifier needs the correct avoid blocking the side ventilation panels. size of cables and batteries. Securely mount the amplifier so that it does not come loose in the event of a collision or a sudden jolt The protection fuse or circuit to the vehicle.
- Page 6 INSTALLATION Unplug the negative (-) terminal of the battery before proceeding with any eletrical installation in the vehicle. OUTPUT Output for additional amplifier To avoid unwanted noise in the system, join the Gain positioning over the correct ground points of the equipment and audio output to spot may cause noise, trigger only one point.
- Page 8 LIMITED WARRANTY SounDigital warrants the original purchaser that this product shall be free of defects in materials an workmanship for a period of twelve (12) months from the original date of purchase. Some countries have extended warranty in case the product is installed by an authorized dealer.
