ASRock Industrial NUC-J6412 Settings Manual

NUC-J6412
®
The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
Revision History
Date Description
July 20, 2021 First Release
1 : M.2 Key-M Socket (M2_M1)
2 : M.2 Key-E Socket (M2_E1)
3 : Clear CMOS Header (CLRMOS1)
1-2 : Auto Clear (PWR OFF)
2-3 : Clear CMOS
3 2 1
All manuals and user guides at all-guides.com

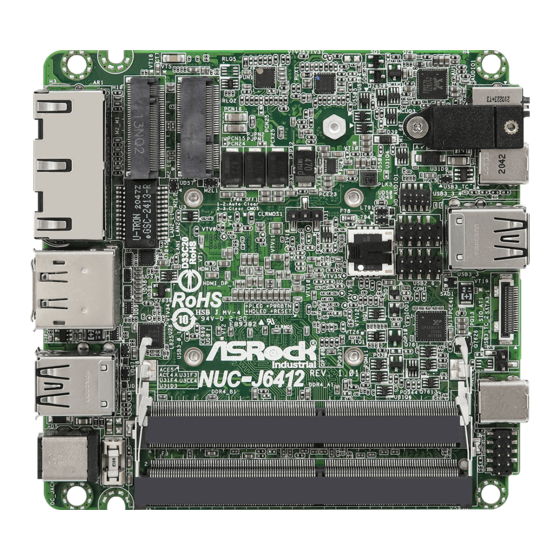

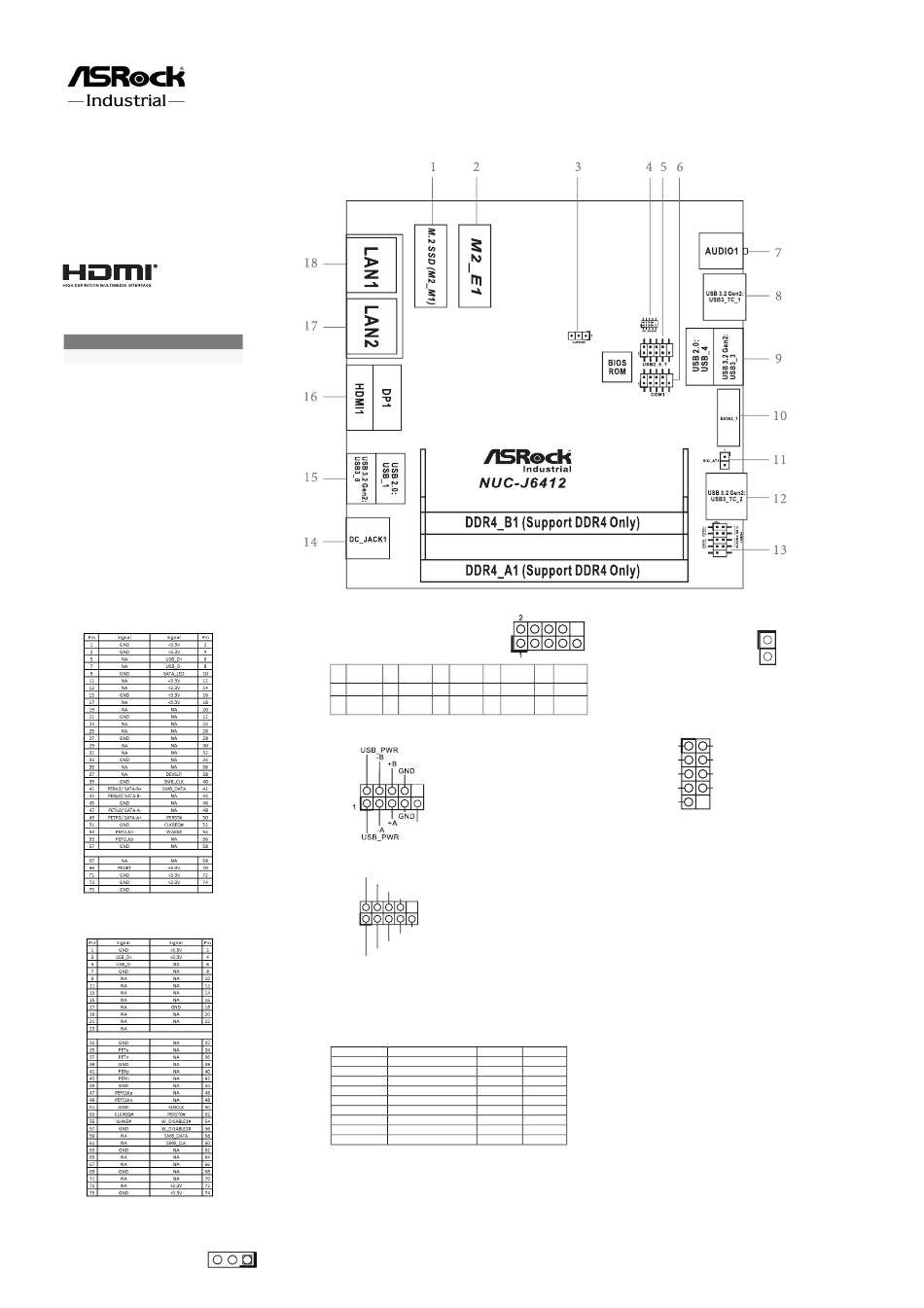

Jumpers and Headers Setting Guide

Top View:

4 : Front Panel Audio Header
Signal Signal
PIN PIN
Name Name
2 AGND 4 NC
LIN1_R_ LIN1_L_
1 3
IN IN
5 : USB 2.0 Connector (USB2_6_7)
DUMMY
6 : COM Port Header (RS232/422/485)
RRXD1
DDTR#1
DDSR#1
CCTS#1
1
N/A
RRI#1
RRTS#1
GND
TTXD1
DDCD#1
* This motherboard supports RS232/422/485 on COM1 port. Please
refer to below table for the pin definition. In addition, COM1 port
(RS232/422/485) can be adjusted in BIOS setup utility > Advanced
Screen > Super IO Configuration. You may refer to our user manual for
details.

COM1 Port Pin Definition

PIN
1 DCD, Data Carrier Detect
2 RXD, Receive Data
3 TXD, Transmit Data
4 DTR, Data Terminal Ready
5
6 DSR, Data Set Ready
7 RTS, Request To Send
8 CTS, Clear To Send
9
7 : Audio Jack (AUDIO1)
8 : USB 3.2 Gen2 Type-C Port (USB3_TC_1)
9 : Top : USB 2.0 Port (USB_4)
Bottom : USB 3.2 Gen2 Port (USB3_3)
10 : SATA3 Port (SATA3_1)
Signal Signal Signal
PIN PIN PIN
Name Name Name
6 LIN1_JD 8 LIN2_JD 10 NC
LIN2_R_ LIN2_L_
5 7 AGND 9
OUT OUT
NC
RS232 RS422 RS485
TX- RTX-
TX+ RTX+
RX+ N/A
RX- N/A
GND GND GND
N/A N/A
N/A N/A
N/A N/A
N/A N/A N/A
11 : SIO_AT1
1
Open : ATX Mode
Short : AT Mode
12 : USB 3.2 Gen2 Type-C Port (USB3_TC_2)
13 : System Panel Header (PANEL1)
1
HDLED+
PLED+
HDLED-
PLED-
GND PWRBTN#
RESET# GND
DUMMY
14 : DC-In Jack (DC_IN1)
15 : Top : USB 2.0 Port (USB_1)
Bottom : USB 3.2 Gen2 Port (USB3_0)
16 : Top : DisplayPort (DP1)
Bottom : HDMI Port (HDMI1)
17 : RJ-45 LAN Port (LAN2)
18 : RJ-45 LAN Port (LAN1)
