- Page 1 NUC-J6412 User Manual Version 1.0 Published July 2021 Copyright©2021 ASRockInd INC. All rights reserved.
- Page 2 Version 1.0 Published July 2021 Copyright©2021 ASRockInd INC. All rights reserved. Copyright Notice: No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRockInd Inc.
- Page 3 ® The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
-
Page 4: Table Of Contents
Contents 1 Introduction ............5 1.1 Package Contents ............5 1.2 Specifications ..............6 1.3 Motherboard Layout ............8 1.4 I/O Panel ................ 10 2 Installation ............11 2.1 Screw Holes ..............11 2.2 Pre-installation Precautions ........... 11 2.3 Installation of Memory Modules (SO-DIMM) ....12 2.4 Expansion Slots ............ -
Page 5: Introduction
Chapter 1: Introduction Thank you for purchasing ASRockInd NUC-J6412 motherboard, a reliable mother- board produced under ASRockInd’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRockInd’s commitment to quality and endurance. In this manual, chapter 1 and 2 contain introduction of the motherboard and step- by-step guide to the hardware installation. -
Page 6: Specifications
1.2 Specifications Form Dimensions NUC 4.09" x 4.02" (104 x 102mm) Factor ® Intel ElkHart Lake SoC Processors NUC-J6412 (J6412, QC, Max Speed up to Processor 2.6GHz, 10W) System Chipset BIOS AMI SPI 256 Mbit Technology Dual Channel DDR4 3200 MHz... - Page 7 2 x USB 2.0 (1 x 2.00 pitch header) 1 x COM(RS232/422/485) Internal Infineon SLB9670VQ2.0 Connector Audio line in /out (share with audio Jack, by BIOS Header setting) 1 x M.2 (KEY M, 2242/2260/2280) with PCIe x1 and SATA3 for SSD Storage *M.2 Key M 2280(Supported by bracket) SATA...
-
Page 8: Motherboard Layout

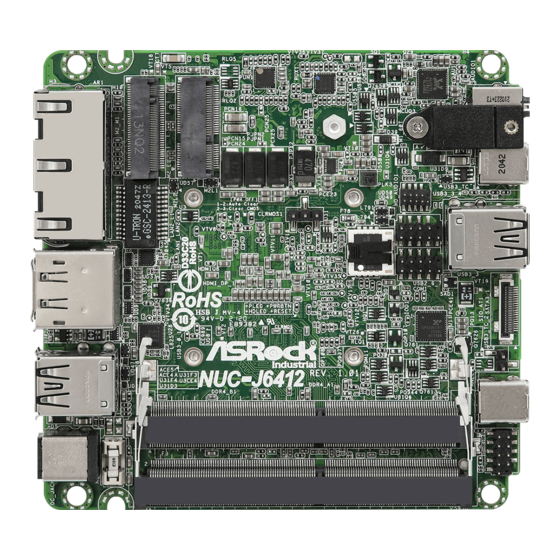

1.3 Motherboard Layout Top View: 1 : M.2 Key-M Socket (M2_M1) 2 : M.2 Key-E Socket (M2_E1) 3 : Clear CMOS Header (CLRMOS1) 4 : Front Panel Audio Header (HD_AUDIO1) 5 : USB 2.0 Connector (USB2_6_7) 6 : COM Port Header (RS232/422/485) 7 : SATA3 Port (SATA3_1) 8 : SIO_AT1 9 : System Panel Header (PANEL1) - Page 9 Bottom View: 10 : Power Button (PWR_BTN1) 11 : Fan Connector (FAN1) 12 : Battery Connector (BAT1) 13 : ESPI Connector (ESPI)
-
Page 10: I/O Panel
1.4 I/O Panel Front I/O: Rear I/O: USB 3.2 Gen2 Type-C Port (USB3_TC_2) RJ-45 LAN Port (LAN2)* USB 3.2 Gen2 Port (USB3_3) HDMI Port (HDMI1) USB 2.0 Port (USB_4) DisplayPort 1.2 (DP1) USB 3.2 Gen2 Type-C Port (USB3_TC_1) USB 3.2 Gen2 Port (USB3_0) Audio Jack (AUDIO1) USB 2.0 Port (USB_1) RJ-45 LAN Port (LAN1)*... -
Page 11: Installation
Chapter 2: Installation Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Make sure to unplug the power cord before installing or removing the motherboard. Failure to do so may cause physical injuries to you and damages to motherboard components. -
Page 12: Installation Of Memory Modules (So-Dimm)
2.3 Installation of Memory Modules (SO-DIMM) This motherboard rovides two 204-pin DDR4 (Double Data Rate 4) SO-DIMM slots. Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM matches the break on the slot. 1. The SO-DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at incorrect orientation. -
Page 13: Expansion Slots
2.4 Expansion Slots (M.2 Slots) There are 2 M.2 slots on this motherboard. M.2 for SSD: 1 x M.2 (KEY M, 2242/2260/2280) with PCIe x1 and SATA3 for SSD. * M.2 Key M 2280(Supported by bracket) M.2 for Wi-Fi: 1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for Wireless. M.2 Key-M Socket (M2_M1) M.2 Key-E Socket (M2_E1) -
Page 14: Jumpers Setup
2.5 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”... -
Page 15: Onboard Headers And Connectors
2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard! SATA3 Port This Serial ATA3 (SATA3) connector supports SATA data (SATA3_1: see p.8, No. - Page 16 System Panel Header This header accommodates several system front panel (9-pin PANEL1) HDLED+ PLED+ functions. HDLED- (see p.8, No. 9) PLED- PWRBTN# RESET# DUMMY Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.
- Page 17 Back Side: Power Button (PWR_BTN1) (see p.9, No. 10) Fan Connector +12V (FAN1) (see p.9, No. 11) FAN_SPEED FAN_SPEED_CONTROL Battery Connector (BAT1) (see p.9, No. 12) ESPI Connector (ESPI1) (see p.9, No. 13)
-
Page 18: Installation Of Rom Socket
2.7 Installation of ROM Socket * Do not apply force to the actuator cover after ic inserted. * Do not apply force to actuator cover when it is opening over 120 degree, Otherwise, the actuator cover may be broken. * The yellow dot (Pin1) on the ROM must be installed at pin1 position of the socket. -
Page 19: Uefi Setup Utility
Chapter 3: UEFI SETUP UTILITY 3.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer. Please press <F2>... -
Page 20: Navigation Keys
3.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cursor up or down to select items + / - To change option for the selected items <Enter>... -
Page 21: Advanced Screen
3.3 Advanced Screen In this section, you may set the configurations for the following items: CPU Configu- ration, Chipset Configuration, Storage Configuration, Super IO Configuration, ACPI Configuration, USB Configuration and Trusted Computing. Setting wrong values in this section may cause the system to malfunction. -
Page 22: Cpu Configuration
3.3.1 CPU Configuration Active Processor Cores Select the number of cores to enable in each processor package. CPU C States Support Enable CPU C States Support for power saving. It is recommended to keep C3, C6 and C7 all enabled for better power saving. Intel Virtualization Technology When this option is set to [Enabled], a VMM (Virtual Machine Architecture) can utilize the additional hardware capabilities provided by Vanderpool... - Page 23 CPU Thermal Throttling You may select [Enabled] to enable CPU internal thermal control mechanism to keep the CPU from overheating.
-
Page 24: Chipset Configuration
3.3.2 Chipset Configuration VT-d ® ® Use this to enable or disable Intel VT-d technology (Intel Virtualization Technology for Directed I/O). The default value of this feature is [Enabled]. Share Memory Configure the size of memory that is allocated to the integrated graphics processor when the system boots up. -
Page 25: Storage Configuration
3.3.3 Storage Configuration SATA Controller(s) Use this item to enable or disable the SATA Controller feature. SATA Mode Selection Use this to select SATA mode. The default value is [AHCI Mode]. AHCI (Advanced Host Controller Interface) supports NCQ and other new features that will improve SATA disk perfor- mance but IDE mode does not have these advantages. -
Page 26: Super Io Configuration
3.3.4 Super IO Configuration COM1 This allows you to enable or disable the COM1 feature. Type Select Use this to select COM1 port type: [RS232], [RS422] or [RS485]. WDT Timeout Reset Use this to set the Watch Dog Timer. -
Page 27: Acpi Configuration
3.3.5 ACPI Configuration Suspend to RAM Use this item to select whether to auto-detect or disable the Suspend-to- RAM feature. Select [Auto] will enable this feature if the OS supports it. Onboard LAN Power On Use this item to enable or disable onboard LAN to turn on the system from the power-soft-off mode. -
Page 28: Usb Configuration
3.3.6 USB Configuration USB Power Control Use this item to control USB power. -
Page 29: Trusted Computing
3.3.7 Trusted Computing Security Device Support Enable or disable BIOS support for security device. -
Page 30: Hardware Health Event Monitoring Screen
3.4 Hardware Health Event Monitoring Screen In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage. FAN1 Setting This allows you to set FAN1’s speed. -
Page 31: Security Screen
3.5 Security Screen In this section, you may set, change or clear the supervisor/user password for the system. Supervisor Password Set or change the password for the administrator account. Only the ad- ministrator has authority to change the settings in the UEFI Setup Utility. Leave it blank and press enter to remove the password. -
Page 32: Boot Screen
3.6 Boot Screen In this section, it will display the available devices on your system for you to config- ure the boot settings and the boot priority. Boot From Onboard LAN Use this item to enable or disable the Boot From Onboard LAN feature. Setup Prompt Timeout This shows the number of seconds to wait for setup activation key. -
Page 33: Exit Screen
3.7 Exit Screen Save Changes and Exit When you select this option, it will pop-out the following message, “Save configuration changes and exit setup?” Select [OK] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, it will pop-out the following message, “Discard changes and exit setup?”... -
Page 34: Software Support
Chapter 4: Software Support 4.1 Install Operating System ® ® This motherboard supports various Microsoft Windows operating systems: 10 64-bit. Because motherboard settings and hardware options vary, use the setup procedures in this chapter for general reference only. Refer your OS documentation for more information.
