HT-820/9200
It is imperative that Human Touch
products are repaired in a manner that ensures product safety and regulatory compliance and that is fully consistent with the practices used
®
during the manufacturing process. Therefore, Human Touch requires that all product repairs are performed using only factory-new parts and in accordance with these repair
instructions. Failure to adhere to these instructions voids the product warranty and releases Human Touch from all liability for injury or product damage resulting from the repair.
Tools Required: Phillips-head screwdriver, flat-head screwdriver (optional), nail clipper or instrument suitable for cutting zip ties, new zip tie.
NOTE: SAVE ALL SCREWS FOR USE DURING REASSEMBLY.

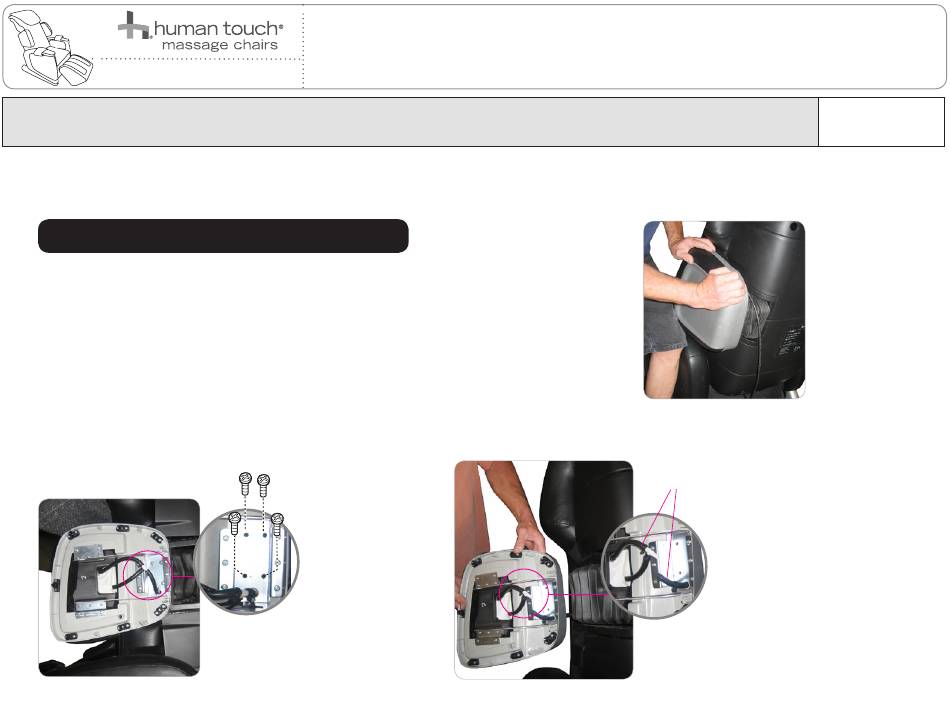

REMOVING THE SHOULDER MASSAGE ASSEMBLY
1. Power off the chair then unplug it.
2. Use your fingers to pry the outer panel off the shoulder massage assembly (Fig.1).
HINT: You may wish to use a flat-head screwdriver to separate the outer panel from the inner panel.
3. Using a Phillips-head screwdriver, remove the four screws that secure the inner panel to the chair (Fig.2).
4. Disconnect the tube that runs from the backrest into the shoulder massage assembly from the white
plastic nipple (Fig.3).
5. Using a nail clipper or other instrument suitable for cutting zip ties, cut the two zip ties on the tube that runs
from the backrest to the shoulder massage assembly
6. Remove the inner panel from the chair.
(Fig.2)
REPLACING A SHOULDER MASSAGE ASSEMBLY
Tube
(Fig.3)
X1103
September 07, 2010
SERVICE LEVEL: 3
(Fig.1)
1
