HT-820/9200
It is imperative that Human Touch
products are repaired in a manner that ensures product safety and regulatory compliance and that is fully consistent with the practices used
®
during the manufacturing process. Therefore, Human Touch requires that all product repairs are performed using only factory-new parts and in accordance with these repair
instructions. Failure to adhere to these instructions voids the product warranty and releases Human Touch from all liability for injury or product damage resulting from the repair.
Tools Required: Phillips-head screwdriver, nail clippers or other instrument suitable for cutting zip ties, new zip ties. NOTE: SAVE ALL SCREWS FOR USE DURING REASSEMBLY.

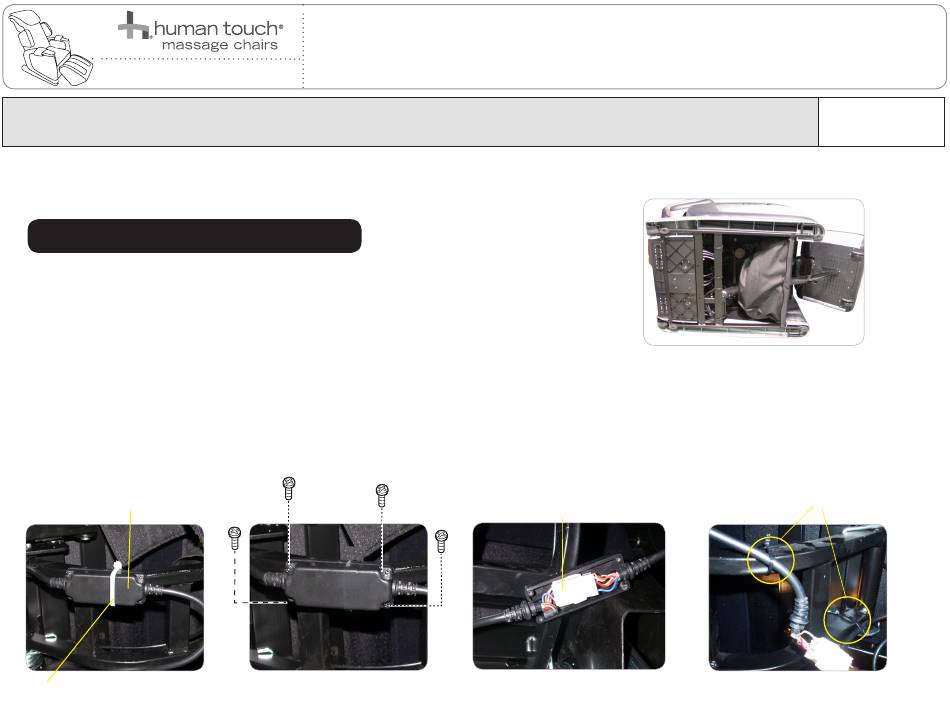

REMOVING THE FOOT-AND-CALF MASSAGER

1. Using two people, gently tip the chair onto its side (Fig.1).
2. Use the remote control to deploy the foot-and-calf massager until the connector box becomes
accessible (about 75% full deployment) (Fig.2).
3. Power off the chair, then unplug it.
4. Using a nail clipper or other suitable instrument, cut the zip ties that secure the connector box
to the chair frame (Fig.2).
5. Using a Phillips-head screwdriver, remove the four screws that secure the connector box cover,
then remove the cover (Fig.3).
6. Disconnect the connectors (Fig.4)
7. Using a nail clippers or any other suitable instrument, cut the zip-tie that secures the massager harness
to the frame (Fig.5).
Connector box
(Fig.2)
Zip ties

REPLACING THE FOOT-AND-CALF MASSAGER

(Fig.3)
Connectors
(Fig.4)
X1103
October 17, 2010
SERVICE LEVEL: 3
(Fig.1)
Zip-tie
(Fig.5)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT-820 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Human Touch HT-820

  • Page 1 Therefore, Human Touch requires that all product repairs are performed using only factory-new parts and in accordance with these repair instructions. Failure to adhere to these instructions voids the product warranty and releases Human Touch from all liability for injury or product damage resulting from the repair.
  • Page 2 8. Locate the two screws located inside the foot-and-calf massager’s rubber housing and remove them (Fig.6). 9. Using a Phillips-head screwdriver, remove the two screws that secure the fabric strip that holds the rubber housing in place, then remove the fabric strip (Fig.7). 10.
  • Page 3 11. Plug in the chair, power it on, then verify that the new foot and calf massager is working properly. Zip-tie Fabric strip (Fig.14) (Fig.13) (Fig.12) Connector box Connectors Zip ties (Fig.17) (Fig.15) (Fig.16) Please send any questions or comments regarding these instructions to: documentation@humantouch.com © 2010 Human Touch , LLC. ®...
