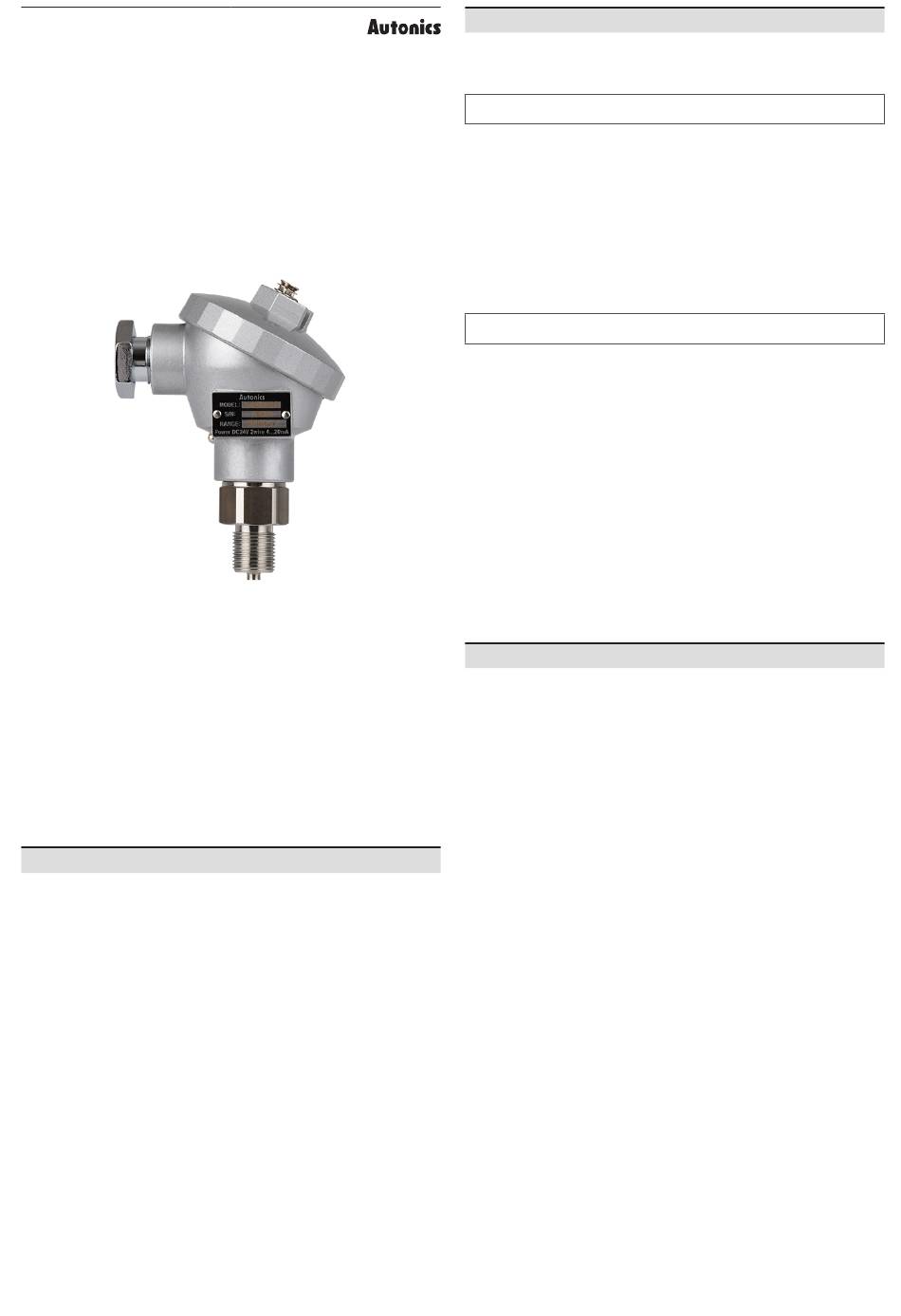

Autonics TPS20 Series Product Manual

TCD210188AB
Non-Indicating
Pressure Transmitters
TPS20 Series
PRODUCT MANUAL
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
The specifications, dimensions, etc are subject to change without notice for product
improvement Some models may be discontinued without notice.

Features

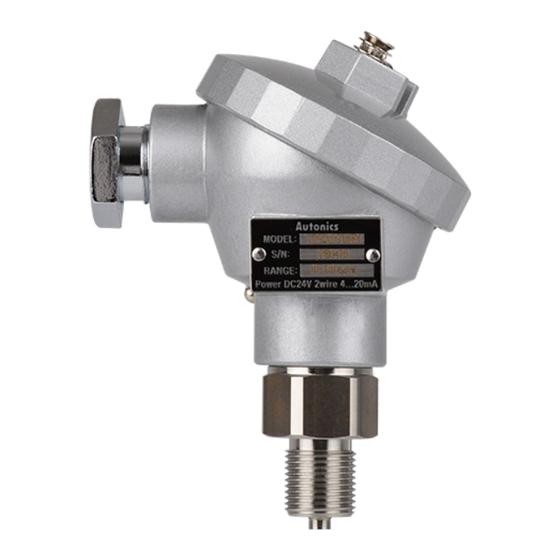

• Excellent corrosion resistance with stainless steel housing
• High accuracy ±0.3％ F.S.
• Various connection method
- Head type, DIN connector type, connector cable type
• Various user friendly function
- Built-in zero-point, span adjustment (head type)
ᜢ ᜹

Safety Considerations

• Observe all 'Safety Considerations' for safe and proper operation to avoid hazards.
• ᜸ symbol indicates caution due to special circumstances in which hazards may
occur.
᜸ Warning
Failure to follow instructions may result in serious injury or death.
01. Fail-safe device must be installed when using the unit with machinery that
may cause serious injury or substantial economic loss (e.g. nuclear power
control, medical equipment, ships, vehicles, railways, aircraft, combustion
apparatus, safety equipment, crime/disaster prevention devices, etc).
Failure to follow this instruction may result in personal injury, economic loss or fire.
02. Do not use the unit in the place where flammable/explosive/corrosive gas,
humidity, direct sunlight, radiant heat, vibration, impact, or salinity may be
present.
Failure to follow this instruction may result in explosion or fire.
03. Do not disassemble or modify the unit.
Failure to follow this instruction may result in fire or electric shock.
᜸ Caution
Failure to follow instructions may result in injury or product damage.
01. Do not apply beyond rated pressure.
Failure to follow this instruction may result in product damage.
02. Use the unit within the rated specifications.
Failure to follow this instruction may result in fire or product damage.
03. Fix the cable through the cable connection part and do not turn the cable of
the unit.
Failure to follow this instruction may result in product damage.
04. Keep the product away from metal chip, dust, and wire residue which flow
into the unit.
Failure to follow this instruction may result in fire or product damage.
05. Check 'Connections' before wiring.
Failure to follow this instruction may result in explosion or fire.
06. This product is designed to detect the pressure of noncorrosive medium. Do
not use for corrosive medium.
Failure to follow this instruction may result in product damage.
07. Use a dry cloth to clean the unit, and do not use water or organic solvent.
Failure to follow this instruction may result in fire or electric shock.

Cautions during Use

• Follow instructions in 'Cautions during Use'.
Otherwise, it may cause unexpected accidents.
• Power supply should be insulated and limited voltage/current or Class 2, SELV power
supply device.
• When installing the unit on pipe line, use the hexagon part of connections not to turn
the unit with a pipe wrench. Do not use the unit with strong vibrations.
• Store the unit at the place without moisture, dust, and vibration.
• This product is not needed to take maintenance because there is no moving part. But
it needs to take maintenance once a year as below instructions even though inside of
pressure pipe is normally clean.
1. Check the broken status of outside.
2. Check the pressure slot, cleanliness inside, and corrosion state.
3. Short each terminal and check the insulation resistance between the case and
power.
