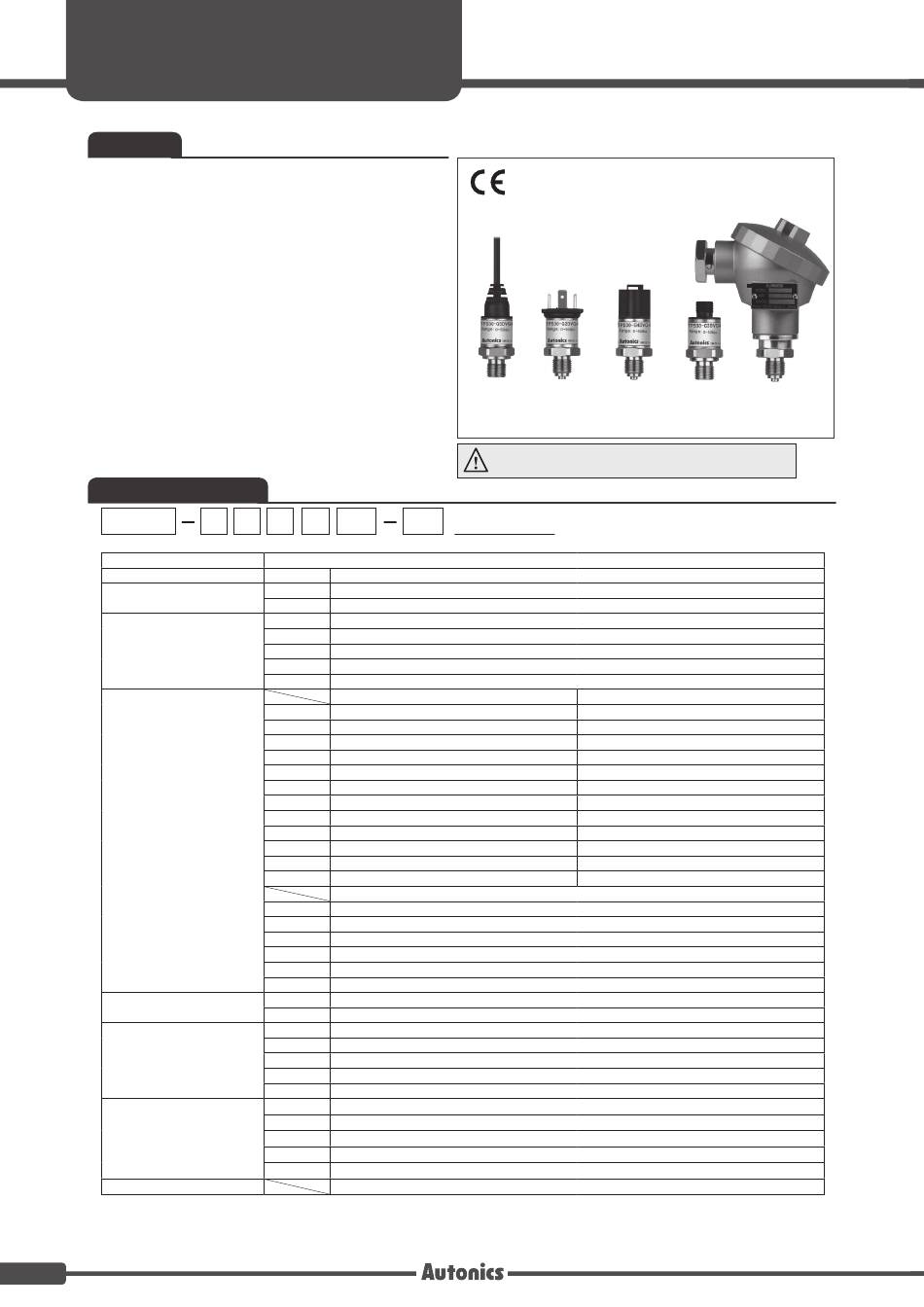

Autonics TPS30 Series Manual

TPS30

Features

• • Robust build allows high or low pressure measurement in
high and low temperature environments.
: high pressure (0 to 60MPa), low pressure (0 to 2 MPa)
: temperature range (-40 to 125℃) (may vary by model)
• For diverse applications including packaging machines,
heavy machinery, factories, and shipbuilding.
• Pressure measurement of any gas, liquid, or oil.
• 316L stainless steel diaphragm for high corrosion resistance.
• • Compact size allows easy installation in tight or limited
spaces.
• • 1ms high-speed response rate.
• • Analog output: Voltage (1-5 VDC), Current (DC 4-20 mA)
• • Built-in reverse polarity protection circuit.
• • Various connector types
: cable type, DIN43650-A connector type, DT04-3P
Connector type, M12 connector type, head type.
• • Available thread sizes: G3/8, G1/4, R1/2
• • Protection structure: IP67 (IEC standard)
(except DIN43650-A connector type: IP65)

Ordering Information

TPS30
①
① Item
② Measurement pressure
③ Cable
④ Pressure range
⑤ Output type
⑥ Pressure port
⑦ Option (connector cable)
⑧ User pressure range
※ 1: The pressure is sealed gauge pressure. The unit is sealed structure. It is based on atmospheric pressure 101.3kPa (1.013bar).
※ 2: G1/4 is the standard pressure port. For the other pressure ranges, G3/8, R1/2 are standard pressure ports.
※ 3: The option ports are sold separately. In case of large amount ordering, contact the Autonics for manufacturing the requested pressure port.
※ 4: Only for M12 connector type.
※ 5: Write the desired pressure range and it is the default of user pressure range. (select "Z" at ④Pressure range)
F-1
Series
G 2 9 V G8
② ③ ④ ⑤ ⑥
Description

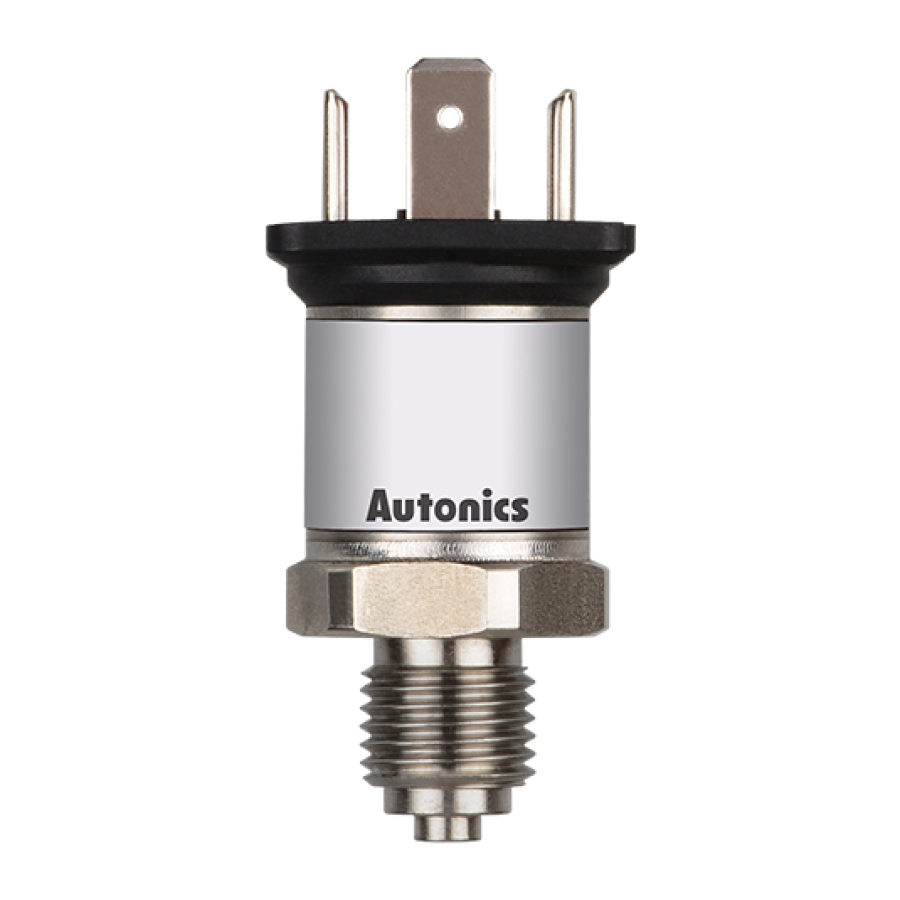

TPS30 Pressure Transmitter
G Gauge pressure, sealed gauge pressure
A Absolute pressure
1 Head type
2 DIN43650-A connector type
3 M12 connector type
4 DT04-3P connector type
5 Cable type
Gauge pressure
3 0 to 0.1MPa
4 0 to 0.2MPa
5 0 to 0.7MPa
6 0 to 1MPa
7 0 to 2MPa
8 ※2 0 to 3.5MPa
9 ※2 0 to 5MPa
※2
A 0 to 10MPa
B ※2 0 to 20MPa
C ※2 0 to 40MPa
D ※2 0 to 50MPa
E ※2 0 to 60MPa
Sealed gauge pressure
F -0.1 to 0MPa
G -0.1 to 0.1MPa
H -0.1 to 0.7MPa
J -0.1 to 1MPa
K -0.1 to 2MPa
Z Others
V Voltage (1-5VDC) output
A Current (DC4-20mA) output
G8 G3/8 (PF)(EN387)
G4 G1/4 (PF)(EN387)
R2 R1/2 (PT)(DIN3852)
N4 NPT1/4 (DIN3852)
ZZ ※3 Others (option)
00 Not used
2I "I" type 2m
※ 4
2L "L" type 2m
5I "I" type 5m
5L "L" type 5m
User pressure range
Cable type DIN43650-A
connector
type
Please read "Safety Considerations" in operation manual
before using this unit.
00
(0 to 0.5MPa)
⑦ ⑧
※ 1
Absolute pressure
0 to 0.1MPa
0 to 0.2MPa
0 to 0.7MPa
0 to 1MPa
0 to 2MPa
-
-
-
-
-
-
-
※ 1
※5
DT04-3P M12 Head type
connector connector
type type
