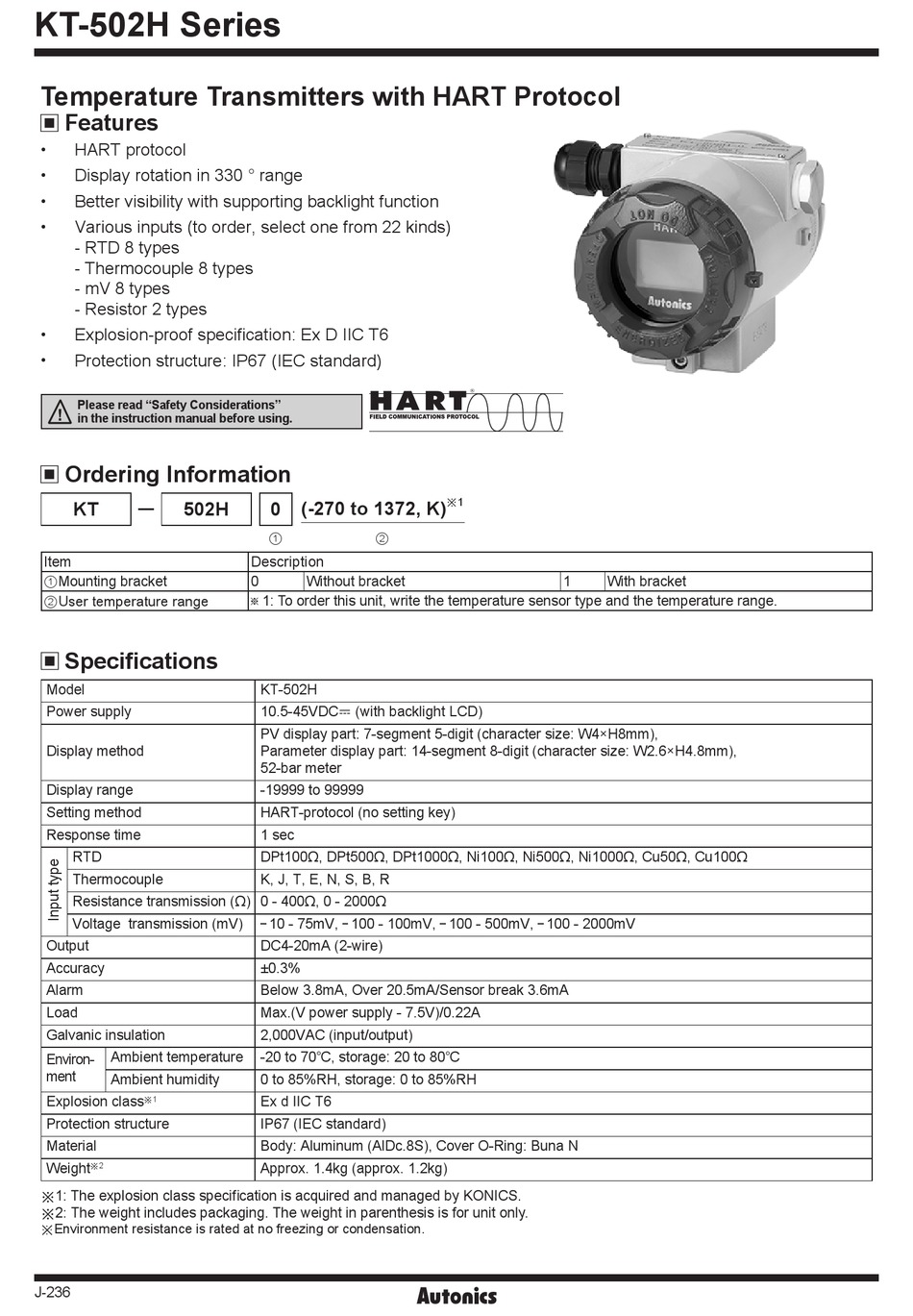

KT-502H Series
Temperature Transmitters with HART Protocol
Features
HART protocol
•
Display rotation in 330 ° range
•
Better visibility with supporting backlight function
•
Various inputs (to order, select one from 22 kinds)
•
- RTD 8 types
- Thermocouple 8 types
- mV 8 types
- Resistor 2 types
Explosion-proof specification: Ex D IIC T6
•
Protection structure: IP67 (IEC standard)
•
Please read "Safety Considerations"
in the instruction manual before using.
Ordering Information
KT 502H
Item
①Mounting bracket
②User temperature range
Specifications
Model
Power supply
Display method
Display range
Setting method
Response time
RTD
Thermocouple
Resistance transmission (Ω) 0 - 400Ω, 0 - 2000Ω
Voltage transmission (mV)
Output
Accuracy
Alarm
Load
Galvanic insulation
Ambient temperature
Environ-
ment
Ambient humidity
Explosion class
※1
Protection structure
Material
Weight
※2
※1: The explosion class specification is acquired and managed by KONICS.
※2: The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
J-236
0 (-270 to 1372, K)
① ②
Description
0 Without bracket
1: To order this unit, write the temperature sensor type and the temperature range.
KT-502H
10.5-45VDC (with backlight LCD)
ᜡ
PV display part: 7-segment 5-digit (character size: W4×H8mm),
Parameter display part: 14-segment 8-digit (character size: W2.6×H4.8mm),
52-bar meter
-19999 to 99999
HART-protocol (no setting key)
1 sec
DPt100Ω, DPt500Ω, DPt1000Ω, Ni100Ω, Ni500Ω, Ni1000Ω, Cu50Ω, Cu100Ω
K, J, T, E, N, S, B, R
10 - 75mV, 100 - 100mV, 100 - 500mV, 100 - 2000mV
DC4-20mA (2-wire)
±0.3%
Below 3.8mA, Over 20.5mA/Sensor break 3.6mA
Max.(V power supply - 7.5V)/0.22A
2,000VAC (input/output)
-20 to 70℃, storage: 20 to 80℃
0 to 85%RH, storage: 0 to 85%RH
Ex d IIC T6
IP67 (IEC standard)
Body: Aluminum (AlDc.8S), Cover O-Ring: Buna N
Approx. 1.4kg (approx. 1.2kg)
※ 1
1 With bracket
