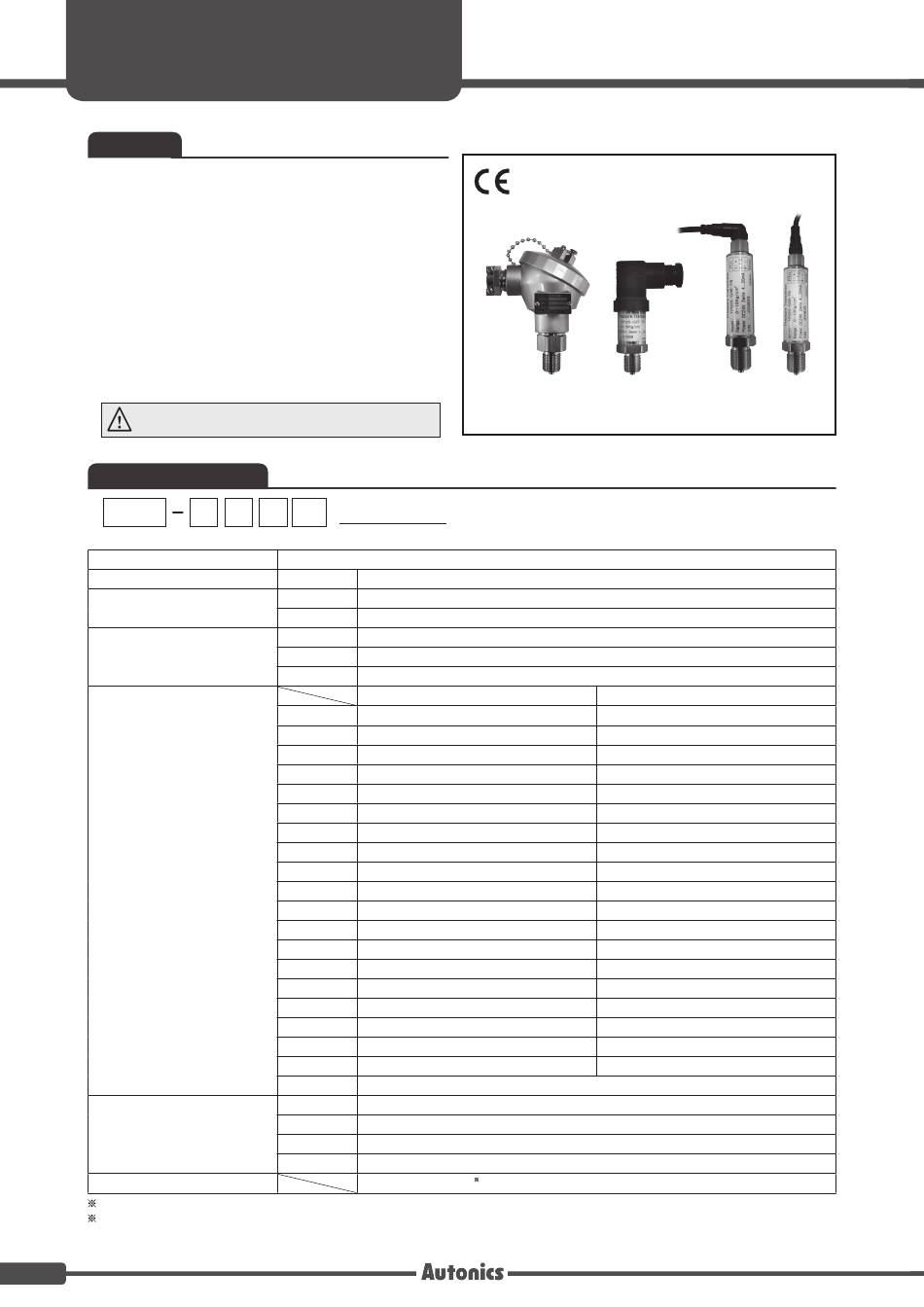

Autonics TPS20 Series Manual

TPS20

Features

DC4-20mA analog signal (2-wire) transmission by
•
measuring pressure of liquid, gas, and oil.
High accuracy (±0.3％ F.S.) with stainless steel
•
diaphragm for various measurement
Various model for installation environments
•
: Head type, DIN connector type,
Connector cable type
Built-in zero-point, span adjustment (head type)
•
Please read "Safety Considerations" in operation manual
before using this unit.

Ordering Information

TPS20 G
① ②
① Item
② Measurement presssure
③ Cable
④ Pressure range
⑤ Pressure port
⑥ User pressure range
1: Write the desired pressure range and it is the default of user pressure range. (select "Z" at ④Pressure range)
For ordering cable, order as CID3-2, CID3-5, CLD3-2, CLD3-5. (sold separately)
F-7
Series
1 5 F8 (0 to 5kgf/cm
③ ④ ⑤ ⑥
Description
TPS20 Pressure Transmitter
G Gauge pressure
A Absolute pressure
1 Head type
2 DIN connector type
3 Connector cable type
Gauge pressure
1 0 to 0.2kgf/cm
2 0 to 0.5kgf/cm
3 0 to 1kgf/cm
4 0 to 2kgf/cm
5 0 to 7kgf/cm
6 0 to 10kgf/cm
7 0 to 20kgf/cm
8 0 to 35kgf/cm
9 0 to 70kgf/cm
A 0 to 100kgf/cm
C 0 to 200kgf/cm
F 0 to 300kgf/cm
H 0 to 350kgf/cm
M -760mmHg to 0kgf/cm
O -760mmHg to 1kgf/cm
Q -760mmHg to 7kgf/cm
V -760mmHg to 10kgf/cm
X -760mmHg to 20kgf/cm
Y -760mmHg to 35kgf/cm
Z Others
P2 R1/2 (with adapter, PT)
P8 R3/8 (with adapter, PT)
F8 G3/8 (standard, PF)
ZZ Others
User pressure range
[Head type] [DIN connector type]
2
)
Absolute pressure
-
2
-
2
0 to 1kgf/cm
2
0 to 2kgf/cm
2
0 to 7kgf/cm
2
0 to 10kgf/cm
2
0 to 20kgf/cm
2
0 to 35kgf/cm
2
-
2
-
2
-
2
-
2
-
2
-
2
-
2
-
2
-
2
-
2
-
2
1
[Connector cable type]
2
2
2
2
2
2
