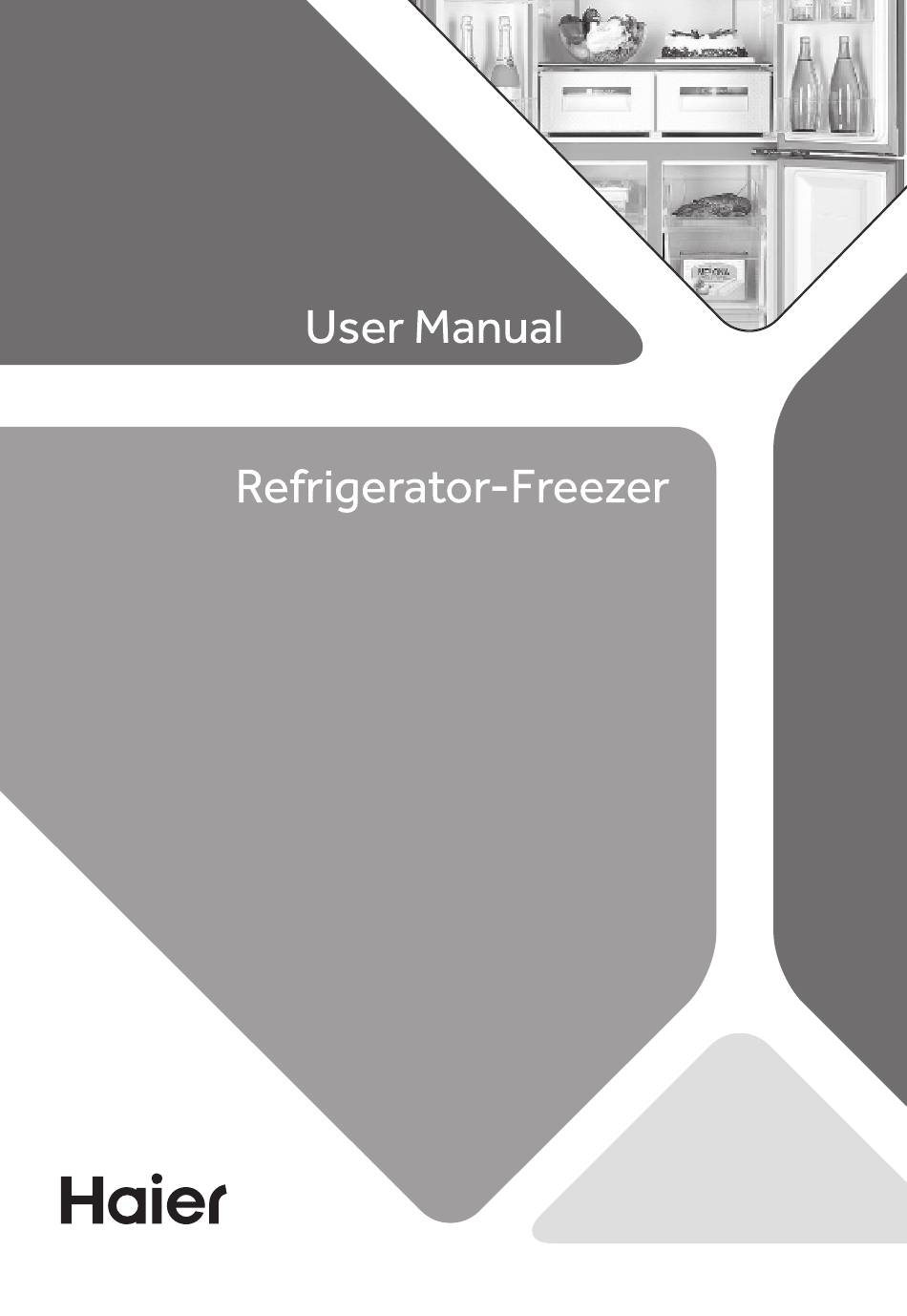

- Page 1 HRF530YS HRF530YC...
- Page 2 Thank you for purchasing a Haier Product. Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.
- Page 3 Accessories Check the accessories and literature in accordance with this list:...
-
Page 4: Installation
Before switching on the appliance for the first time read the following safety hints! Before first use Make sure there is no transport damage. Remove all packaging and keep out of children´s reach. Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient. - Page 5 Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed. WARNING:Do not damage the refrigerant circuit. Daily use This appliance is not intended for use by persons (including children) with reduced physical,sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 6 Do not store explosive substances such as aerosol cans with a flamma- ble propellant in this appliance. Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
- Page 7 Hold the plug, not the cable, when unplugging the appliance. Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
- Page 8 This product contains flammable refrigerant isobutane (R600a) It is hazardous for anyone other than an Authorised Service Person to service this appliance. In Queensland – the authorized Service Person MUST hold a Gas Work Authorisation for hydrocarbon refrigerants, to carry out Servicing or repairs which involve the removal of covers . The symbol indicates there is a risk of fire since flamma- ble materials are used.
-
Page 9: Intended Use
Intended use This appliance is intended to be used in household and similar applications such as – staff kitchen areas in shops, offices and other working environments; – farm houses and by clients in hotels, motels and other residential type environments; –... - Page 10 Door shelves Storage tray Cabinet shelves Storage drawer Adjustable feet C: Switch Zone compartment Ceiling light Storage tray Humidity zone drawers Switch Zone storage drawer...
- Page 11 A Fridge Compartment B Switch Zone C Freezer Compartment D Temperature display Fridge Freezer E Super Cool Function F Super Freeze Function G Holiday mode H Panel lock I Temperature control "-" J Compartment selection K Temperature control "+" L Super Cool function selector M Super Freeze function selector N Holiday mode selector O Panel lock selector...
- Page 12 Sensor keys The buttons on the control panel are sensor keys, which already respond when lightly touched with the finger. Switch on /off the appliance The appliance is in operation as soon as it is connected to the power supply. When the refrigerator is first powered on, the indicator “D”...
-
Page 13: Lock/Unlock Panel
Lock/unlock panel Standby-mode The display screen turns off automatically 30seconds after pressing a key . T he display will be automatically locked.It lights up automatically when pressing any key or opening any door （Alarm does not light up the display screen） Manual adjusting mode If you want to manually adjust the temperature of the appliance ,you can set the temperature via a temperature adjust button （refer to ADJUST THE TEMPERA-... - Page 14 Adjust the temperature for Fridge Unlock the settings by long pressing key “O” for 3 seconds. Under unlock state, press key “J” (Tempera- ture zone selector) to toggle across com- partments. When indicator “A” (Fridge com- partment indicator) lights up, press key “I” (Temperature control “-”) or key “K”...
- Page 15 Adjust the temperature for Freezer Unlock the settings by long pressing key “O” for 3 seconds. Under unlock state, press key “J” (Temperature zone selector) to toggle across compartments. When indicator “C” (Freezer Compartment indicator) lights up, press key “I” (Temperature control “-”) or key “K”...
- Page 16 Adjust Switch Zone temperature Unlock the settings by long pressing key “O” for 3 seconds. Under unlock state, press key “J” (Temperature zone selector) to toggle across compartments. When indicator “B” (Switch Zone indicator) lights up, press key “I” (Temperature control “-”) or key “K “(Temperature control “+”) to adjust Switch Zone compartment temperature.
-
Page 17: Super Freeze Function
Super Freeze function Super Freeze function can freeze the fresh food as soon as possible to the core by accelerating the freezing to preserve the best nutritional value, appearance and taste of food. If you need to freeze a large amount of food once, it is recommended to set the Super Freeze function on ahead for 24 hours before the usage of freezer compartment. -
Page 18: Super Cool Function
Super Cool function After putting food into fridge compartment, if you want to cool it down quickly, you can enable the Super Cool function. Unlock the settings by long pressing key “O” for 3 seconds. Under unlock state, press key “L” (Super Cool function selector), indicator “E”... -
Page 19: Holiday Mode
Holiday Mode Under Holiday mode, fridge compartment automatically sets to 17℃ (for energy saving), while SwitchZone and freezer compartment operate at normal temperature settings. Unlock the settings by long pressing key “O” for 3 seconds. Under unlock state, press key “N” (Holiday mode selector), indicator “G”... - Page 21 Storage into the Switch Zone compartment Switch Zone compartment allows you to adjust the temperature between -18℃ to 5℃ according to the demand of food storage and provide you with further flexibility in storage options for your convenience. For general frozen food items Meat, poultry, seafood, that require storage between -18°C...
- Page 22 Storage into the freezer compartment...
- Page 24 Removable door shelves shelves shelves The Light The LED interior light comes on when the door is opened and it will automatically goes off if the door is left open for more than 7 minutes. The performance of the lights is not affected by any of the appliances other settings.
- Page 25 Energy saving tips Make sure the appliance is properly ventilated (see INSTALLATION). Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves,heaters). Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.
- Page 27 Replacing the LED light ight ight...
- Page 32 W1=1077.5mm W2=1325mm D1=560mm D2=994mm 10 cm 10 cm 10 cm 10 cm...
- Page 35 Trade mark Haier Model No. HRF530YC/ HRF530YS Category of the model Cooled Appliance Voltage / Frequency 220V-240V~/50Hz Energy Star 4 Stars Frostfree system Product group Total product volume 463L 301L Fresh food compartment volume Freezer compartment volume Convertible compartment volume...
