Summary of Contents for Goji GLINBBT18

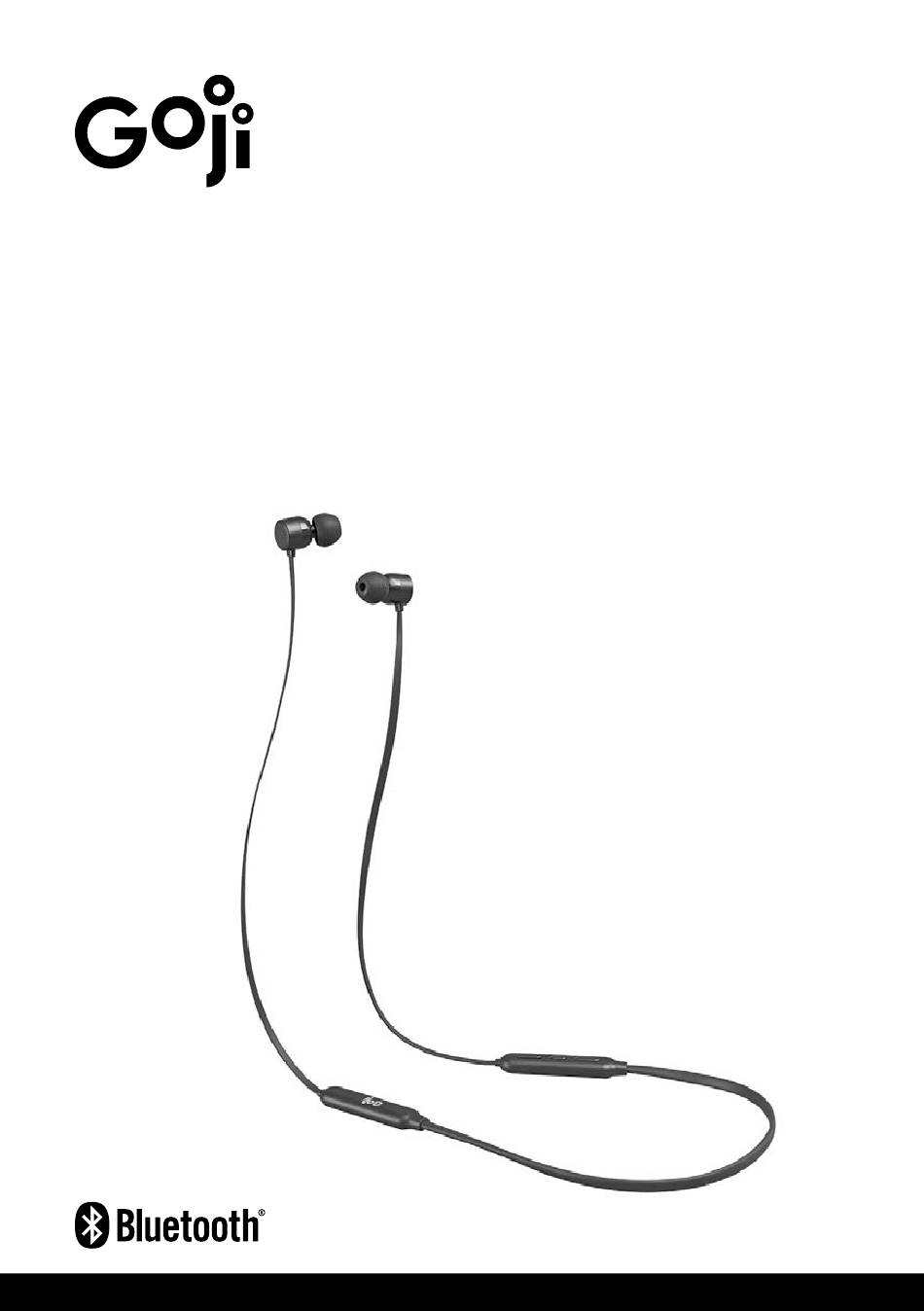

- Page 1 Neckband Lites Wireless Headphones Instruction Manual GLINBBT18...
-
Page 3: Table Of Contents
Contents Safety Warnings ...............4 Unpacking ................6 Product Overview ............7 Charging the Battery ............8 Switching On/Off .............9 Bluetooth Pairing ............10 Operation ...............11 Reset the Headphones ..........12 Hints and Tips..............12 Specifications ..............13... -
Page 4: Safety Warnings
Safety Warnings • For traffic safety, do not use earphones while driving or cycling. Damage • Please inspect the unit for damage after unpacking. • Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, unplug from the mains socket and consult your dealer. - Page 5 Earphones • Listening to loud sounds for prolonged periods of time may permanently damage your hearing. • Before putting on earphones, turn the volume down then put the earphones on and slowly increase the volume until you reach a comfortable listening level.
-
Page 6: Unpacking
Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 7: Product Overview
Product Overview button 3. Status indicator • Increase volume button • Go to next track • Decrease volume button • Go to previous track • Switch the 5. Microphone earphones on/off 6. Charger connector • Multi-functional... -
Page 8: Charging The Battery
Charging the Battery When using the unit for the first time, charge it fully first. 1. Connect the USB charging cable to the earphones. 2. Connect the other end of the USB charging cable to a powered USB device. Status LED Indicator Low battery The red indicator will flash slowly. -
Page 9: Switching On/Off
Switching On/Off To switch on, press and hold until the blue indicator lights up once. • If the earphones are already paired with a Bluetooth device before, it will automatically connect with the last paired device when both are in pairing mode. To switch off, press and hold until the red indicator lights up once. -
Page 10: Bluetooth Pairing
If no Bluetooth device is paired within 15 minutes, the earphones will switch off. 3. Activate the Bluetooth feature on your Bluetooth device and start searching. Then select “GLINBBT18”. 4. If necessary, enter the passcode, “0000”, to pair and connect the earphones. Some device also ask to confirm the headset connection after paring. -
Page 11: Operation
Operation If you receive or make a call while listening to music, the music is paused until you end the call. Frequency Increase volume repeatedly as desired Decrease volume repeatedly as desired Call Functions Answer / end a call once Reject a call Hold 2 seconds then release... -
Page 12: Reset The Headphones
Reset the Headphones To hardware reset the headphones, connect the USB cable to a charging source. Hints and Tips Product not working: • Recharge the product. • Ensure the product is switched on. • Ensure your Bluetooth-enabled device’s wireless function is active. •... -
Page 13: Specifications
Specifications Model GLINBBT18 Sensitivity 95±3 dB Impedance 16 Ω Rated Input DC 5V 100 mA Frequency Response 20 Hz – 20 kHz Frequency Band(s) 2400 – 2482 MHz Max. Radio Frequency 7 dBm Power Transmitted Bluetooth Interface Bluetooth 4.0 Bluetooth Profiles... - Page 14 Currys.co.uk All the support you need. Whether it’s a tech emergency or you need plain good advice, we’re always on hand to help. UK: 0344 5611234 IRE: 1 890 818 575 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.
- Page 15 Other trademarks and trade names are those of their respective owner. Declaration of Conformity (RED) Hereby, DSG Retail Ltd. declares that the radio equipment type [GLINBBT18] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.teamknowhow.com/...
- Page 16 DSG Retail Ltd. (co. no. 504877) 1 Portal Way, London, W3 6RS, UK EU Representative DSG Retail Ireland Ltd (259460) 3rd Floor Office Suite Omni Park SC, Santry, Dublin 9, Republic of Ireland IB-GLINBBT18-200721V3...
