Cooper Lighting Sure-Lites STL StairLite Specification Sheet

D E S C R I P T I O N
The StairLite System is
designed to satisfy all
stairwell lighting
requirements in one easy to
install package. StairLite
consists of a surface
mounted, two lamp
fluorescent lighting fixture
that incorporates an integrally
mounted ultrasonic motion
detector, a system display
panel, and an optional full
battery backup. The StairLite
System will deliver vastly
reduced operating and
maintenance costs due to
virtually no power
consumption. It will enhance
the usefulness, safety, and
reliability of any emergency
lighting system. The StairLite
System is designed for use in
stairwells or any other area
of a building where the
occupancy level or usage
factor would be considered
minimal.
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : S T L 4 2 F 1 7
STL
Family Operation
STL=StairLite 4=AC Only
54=Emergency
450 Lumens
57=Emergency
700 Lumens
59=Emergency
950 Lumens
E n e r g y D a t a
(2) 17W T8
(2) 25W T8
(2) 32W T8
Lamps Off
COOPER LIGHTING - SURE-LITES

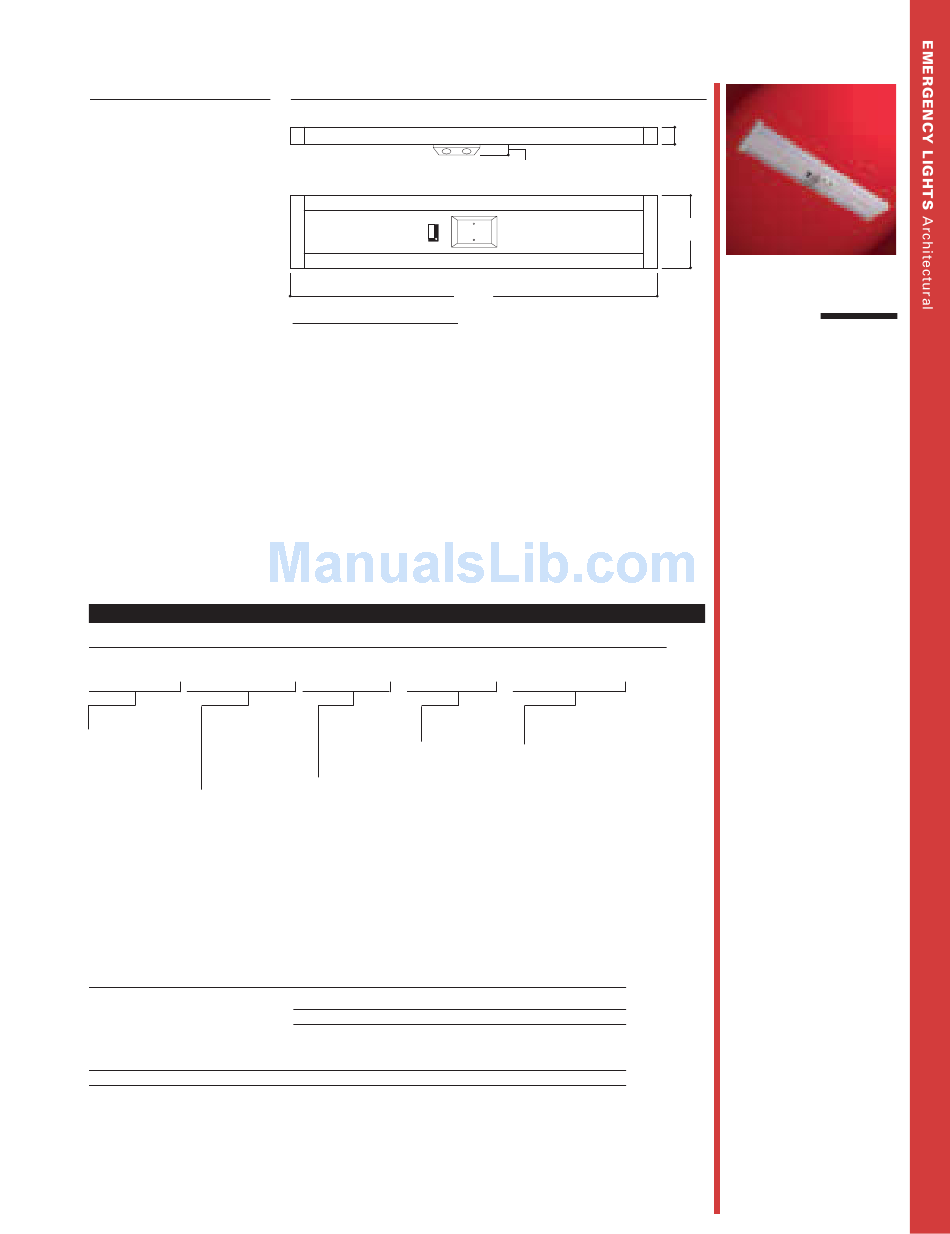

D I M E N S I O N S
Lamp Dimension "A"
FO17T8 27" (686mm)
FO25T8 39" (991mm)
FO32T8 51" (1295mm)
Lamp Voltage
2F17=(2) FO17T8 Blank=120 VAC
(2' lamps) 7=277 VAC
2F25=(2) FO25T8
(3' lamps)
2F32=(2) FO32T8
(4' lamps)
Input Power; Input Current (Max.): Power Factor:
120V 277V 120V
31W 31W .29A
42W 42W .36A
52W 52W .44A
4.3W 4.3W .04A
1 5/8"
[41mm]
A
Accessories (Order
Separately)
VRSPD=#6 Spanner
Screw Driver
277V 120V 277V
.13A .8 .8
.16A .8 .8
.19A .9 .9
.02A .7 .7
2 1/8"
[54mm]
10"
[254mm]
STL STAIRLITE
S t a i r w e l l L i g h t i n g
S y s t e m
E M E R G E N C Y L I G H T
• Choice of Input Voltage,
120 or 277 VAC, 60Hz
• Formed 20 gauge steel
housing and cover plate
construction
• Durable white powder coat
finish
• T8 Fluorescent lamps in 17,
25 and 32 watts (Lamps not
included)
• Single-lamp electronic
ballast that is "0" Degree
rated
• Sealed, maintenance-free
nickel cadmium battery
• Fully automatic, self-test
ultrasonic motion detector
• Solid-state Status Indicator
Display System with an AC
power indicator
• Fully automatic emergency
charger is solid-state–no
mechanical relay
• Variety of electrical and
mounting knockouts for a
easy installation
• Tamper-proof Spanner
Head Screws, Standard
• UL 924, Life Safety NFPA
101, NEC/OSHA, most state
and local codes
COOPER LIGHTING
®
613
