Lorex C581CB Series Quick Start Manual

Lorex C581CB Series Quick Start Manual

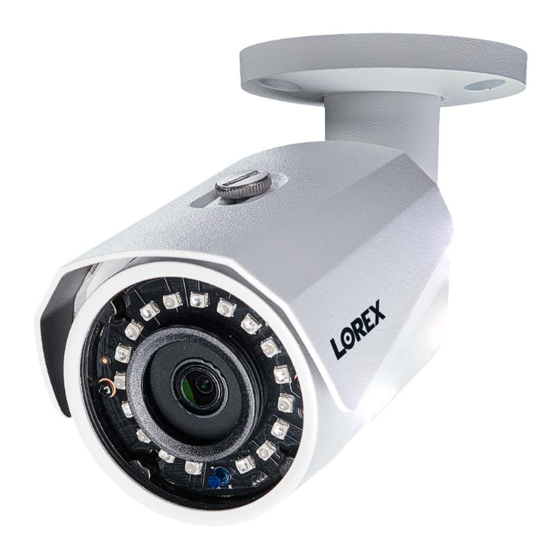

5mp hd bullet security camera

Advertisement

Quick Links

Package Contents
• 5MP HD Bullet Security Camera
• Mounting Kit*
• BNC / Power Extension Cable*
• Power Adapter**
* Per camera in multi-camera packs.
** A multi-camera power adapter that provides power to multiple
cameras or individual power adapters may be provided depending on
product configuration.
ATTENTION:
A REGULATED UL / CSA APPROVED power supply is REQUIRED for use
with this camera (included). Use of a non-regulated, non-conforming
power supply can damage this product and voids the warranty.
Safety Precautions
• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use of the product and handle
with care.
• Use the camera within given temperature, humidity and
voltage levels noted in the camera's specifications.
• Do not disassemble the camera.
• Do not point the camera directly towards the sun or a source
of intense light.
• Use only the supplied regulated power supply provided with
the product. Use of a non-regulated, non-conforming power
supply can damage the product and void the warranty.
• Periodic cleaning may be required. Use a damp cloth only. Do
not use any harsh, chemical-based cleaners.
• The supplied cable is rated for surface mounting only. Cables
for in-wall and floor-to-floor installations are sold separately
(CMR type). These and other cables are available at lorex.com.
Installation Tips
• Point the camera where there is the least amount of
obstructions (i.e., tree branches).
• Install the camera where vandals cannot easily reach.
• Secure cabling so that it is not exposed or easily cut.
• This camera is rated for outdoor use. Installation in a
sheltered location is recommended.
Resources
Need Help?
Visit us online for up-to-date software
and complete instruction manuals
1
Visit lorex.com
Search for the model
2
number of your product
Click on your product
3
in the search results
4
Click on the Downloads tab
Dimensions
2.8" / 71mm
6.3" / 161mm
Disclaimers
• For a full list of compatible recorders, visit
lorex.com/compatibility
• Not intended for submersion in water. Installation in a sheltered
location recommended.
• This camera includes an Auto Mechanical IR Cut Filter. When the
camera changes between Day/Night viewing modes, an audible clicking
noise may be heard from the camera. This clicking is normal, and
indicates that the camera filter is working.
Copyright © 2019 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the right
to modify product design, specifications and prices, without notice and without
incurring any obligation. E&OE. All rights reserved.
5MP HD Bullet Security Camera
Quick Start Guide
English Version 2.0
C581CB_QSG_EN_R2
C581CB SERIES
www.lorex.com
