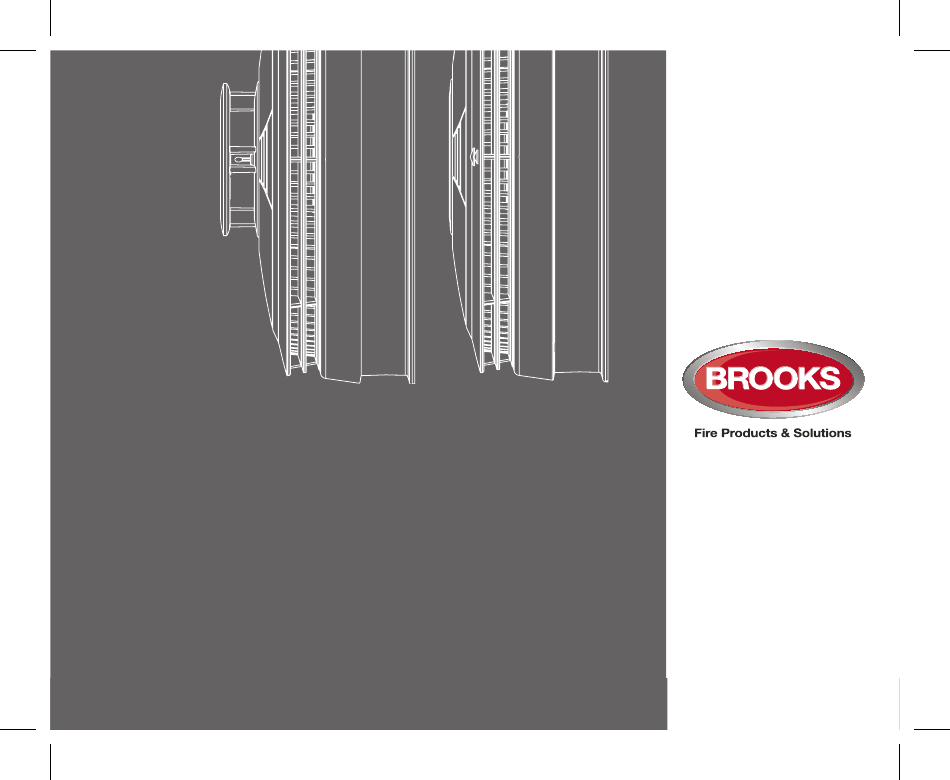

Mains Powered
EIB3024 / 3016 / 3014
Alarms
Instruction Manual
Read and retain carefully for as long as the product is being used. It contains vital
information on the operation and installation of your Alarm. The leaflet should be
regarded as part of the product.
If you are just installing the unit, the leaflet MUST be given to the householder. The
leaflet is to be given to any subsequent user.
Advertisement
Table of Contents
Related Manuals for Brooks EIB3024
Summary of Contents for Brooks EIB3024
- Page 1 Mains Powered EIB3024 / 3016 / 3014 Alarms Instruction Manual Read and retain carefully for as long as the product is being used. It contains vital information on the operation and installation of your Alarm. The leaflet should be regarded as part of the product.
-
Page 3: Table Of Contents
Contents Installer Guide 1. Introduction 1.1 Overview 1.2 Technical Specifications 2. Installation 2.1 Important Safety Instructions 2.2 Where to locate the Alarm? 2.3 Which Alarm in what room? 2.4 Where in the room? 2.5 Locations to avoid 2.6 Mounting and wiring 2.7 Interconnecting Alarms 2.8 Removing the Alarm... - Page 4 User Guide 3. Testing 3.1 Testing and maintaining your Alarm 3.2 Cleaning your Alarm 4. What to do in case of alarm 5. Troubleshooting and Indicator summary tables 6. Important safeguards 7. Service and Guarantee Getting your Alarm serviced 7.2 Guarantee...
-
Page 5: Installer Guide
Installer Guide Introduction... - Page 6 The EIB3024 is a Multi-Sensor Alarm with heat enhanced photoelectric smoke sensor and automatic dust compensation, delivering a faster response to a wider range of fires. It detects both smoke and heat from a fire and is ideal for hallway, landing, living room and bedroom areas.
-
Page 7: Overview
1.1 Overview EIB3024 Multi-Sensor Alarm Green LED Test / Hush Button Alarm Sounder Power Indicator Smoke Entry Vents Yellow LED Fault Indicator Heat Sensor Red LED (Thermistor) Alarm Indicator Alarm Removal Latch RF Module LED Indicator RF Module Learn Switch... - Page 8 EIB3016 Photoelectric Alarm EIB3014 Heat Alarm Smoke Entry Vents Heat Sensor (Thermistor) Alarm Alarm Removal Removal Latch Latch RF Module RF Module LED Indicator LED Indicator RF Module RF Module Learn Switch Learn Switch...
-
Page 9: Technical Specifications
1.2 Technical Specifications Photoelectric (EIB3024 and EIB3016) Smoke Sensor Thermistor Class A1 (EIB3014 and EIB3024) Heat Sensor 230V AC, 50Hz, 0.25W Power Supply Built-in 10-year rechargeable Vanadium Pentoxide Lithium cells. Fully charged, the battery will provide up to 6 months (without module... - Page 10 Normal: -10°C to +40°C (Storage: -10°C to +40°C) * Humidity Range 15% to 95% RH (non-condensing) Plastic Material UL94V-0 flame retardant rated EIB3024 and EIB3014: Product: - Ø150mm x 66mm Package - 155mm x 155mm x 70mm Dimensions EIB3016: Product: - Ø150mm x 63mm...
-
Page 11: Installation
Installation... -
Page 12: Important Safety Instructions
2.1 Important Safety Instructions Mains operated Alarms should be installed and interconnected by a licensed electrician in accordance with the relevant Regulations for Electrical Installations. Failure to install this Alarm correctly may expose the user to shock or fire hazards and damage the product. The Alarm is designed to be permanently mounted, using it’s own built-in terminal block to connect it to the mains. -
Page 13: Where To Locate The Alarm
The Alarm must be continuously powered 24 hours a day so it is important that it is not on a circuit that can be turned off by a switch. The power supply for the Alarms should be derived from the public electricity supply to the dwelling. - Page 14 A single Smoke Alarm will give some protection if it is properly installed, but most homes will require two or more to ensure that a reliable early warning is given. For recommended protection you should put individual Smoke Alarms in all rooms where fire is most likely to break out (apart from the kitchen and bathroom).
- Page 15 Smoke Alarms located as across plus:...
- Page 16 Dining Room Kitchen Laundry Bedroom Room Bedroom Living Room Bedroom...
-
Page 17: Which Alarm In What Room
2.3 Which Alarm in what room? Location EIB3024 EIB3016 EIB3014 Mutil-Sensor Photoelectric Heat Alarm Smoke Alarm Alarm (i) ✔ ✔ ✗ Hall, Corridors, Escape routes ✗ ✗ ✔ (iii) Kitchens / Garages ✔ ✔ ✔ (ii) Living Rooms ✔ ✔... -
Page 18: Where In The Room
2.4 Where in the room? The locations must comply with the Building Code of Australian, state and territory legislation and the instructions in this leaflet. 300mm (min) 300mm Fig.1 Ceiling Mounting Hot smoke rises and spreads out, so a central ceiling position is the preferred location. The air is “dead”... - Page 19 Key: Dead air space Fig.2 Suitable smoke alarm location Ceiling line Exposed oor joists Side Wall DEAD AIRSPACE AND PROPER MOUNTING OF SMOKE ALARMS ON SIDE WALLS Wall Mounting (EIB3016 only) If ceiling mounting is impractical, only the EIB3016 Photoelectric Smoke Alarm may be mounted on a wall, provided that: a) the top of the detection element is between 300mm and 500mm below the ceiling (see Figure 2);...
-
Page 20: Locations To Avoid
Wall mounting should only be considered where close spaced beams or similar obstructions may preclude ceiling mounting. It is considered to be the responsibility of the installer/client to determine if the presence of asbestos in the ceiling material would make ceiling mounting ‘impractical’. Sloping Ceiling With a sloping or peaked ceiling install a Smoke or Heat Alarm between 500mm min. - Page 21 • Locate away from very dusty or dirty areas as dust build-up on the optical smoke sensor can impair performance. It can block the insect screen mesh and prevent smoke from entering the sensor. Dust build up can also increase the response time of the heat sensor. •...
-
Page 22: Mounting And Wiring
2.6 Mounting and wiring 1. Select a location complying with the advice in previous sections. 2. Disconnect the AC mains supply from the circuit that is going to be used. 3. Lift off the wiring cover as shown in Figure 3. The wiring must be TPS 1.5mm and connected to the terminal block on the mounting plate... - Page 23 Warning: Mixing (or leaving unattached) the Live and Neutral connections when interconnecting Alarms may damage all the Alarms - ensure that the same colour wires are used throughout the premises for Live, Neutral and Interconnect wires. We strongly recommend that you check for the following before connecting the Alarm: •...
- Page 24 Fig.4 Fig.5 4. If the mains wires are recessed, bring the wires through the rear hole in the mounting plate as shown in Figure 4. If the mains wires are being brought along the surface: (a) position the mounting plate so the cable trunking is as shown in Figure 4. (b) the mounting plate has a removable section, take it out to interface directly with 25mm trunking as shown in Figure 5.
- Page 25 wall. This is to prevent air draughts affecting the smoke/heat entering the Alarm. If the hole is too large or the Alarm does not seal it, it should be sealed with silicone rubber or equivalent. 6. Replace the wiring cover and carefully line up the Alarm on the base and slide on (see Figure 6). 7.
-
Page 26: Interconnecting Alarms
Note: A maximum of 12 Fire / Smoke / Heat / CO Alarms and accessory devices can be interconnected in a Brooks Alarm system. (Any EIB3000 series Alarm can also be interconnected to an EIB160e and EIB140RC Series). - Page 27 Make electrical connections as shown in Figure 8. Fig.8 Wiring must be installed in compliance with AS3000. In Australia it is recommended that the following coloured cores are used. 230V supply : Brown Neutral : Blue Interconnect : White The interconnect wire must be treated as if it was Live. It should be double insulated. A maximum of 250 metres of wire can be used (maximum resistance between Alarms 50 Ohms).
-
Page 28: Removing The Alarm
Please note in a hybrid system containing CO / Heat / Multi / Smoke Alarms we recommend using an EIB3000 series Alarm as the hybrid link to the RF section of the system. Ensure the Alarms operate correctly - see TESTING YOUR ALARM in the user section. 2.8 Removing the Alarm * Disconnect mains before removal * Locate removal slot... -
Page 29: User Guide
User Guide Testing... -
Page 30: Testing And Maintaining Your Alarm
3.1 Testing and maintaining your Alarm Frequent testing of all your Alarms is a requirement to ensure they are functioning correctly. Guidelines and best practices for testing are as follows: 1. After the system is installed. 2. Once monthly thereafter. 3. - Page 31 (iii) Press the test button for up to 10 seconds and ensure that the Alarm sounds. This tests the sensor, electronics and sounder are working. The Alarm will stop when the button is released. Pressing the test button simulates the effect of smoke and/or heat and therefore is the best way to ensure the Alarm is operating correctly.
-
Page 32: Cleaning Your Alarm
The EIB3000MRF modules (if required) must be re-fitted to the Alarms and the Alarms must be re-attached to the mounting plates when the premises are re-occupied. Ensure to match the original RF module back to the same Alarm head. (Long term storage (over 1 year) can damage the batteries such that they will not recharge when the units are re-connected to the mains supply). - Page 33 WARNING: Do not paint your Alarm. Other than the cleaning described above, no other customer servicing of this product is required. Servicing or repairs, when needed, must be performed by the manufacturer. All Alarms are prone to dust and insect ingress, which can cause false alarms or failure to alarm. In certain circumstances, even with regular cleaning, contamination can build up in the smoke sensing chamber causing the Alarm to sound or fail.
-
Page 34: What To Do In Case Of Alarm
What to do in case of alarm... - Page 35 (i) Check room doors for heat or smoke. Do not open a hot door. Use an alternate escape route. Close all doors behind you as you leave. (ii) If smoke is heavy, crawl out, staying close to floor. Take short breaths, if possible, through a wet cloth or hold your breath.
-
Page 36: Troubleshooting And Indicator Summary Tables
Troubleshooting Indicator summary tables... - Page 37 Your Alarm does not • Check the Alarm is secured correctly on the mounting plate. sound when you press the • Wait 15 seconds after connecting the power before button testing. Test button • Hold button down firmly for at least 10 seconds. •...
- Page 38 Interconnected Alarms • Hold test button down for at least 10 seconds to ensure that the signal do not all sound is transmitted to all the interconnected Alarms. • If this is not the case and you have a hardwired interconnection, we licensed electrician recommend you consult a •...
- Page 39 Normal mode Mode Action Green LED Yellow LED Red LED Sound (power) (fault) (alarm) Power up Slide onto mounting plate Standby Testing Press and hold (monthly) test button In alarm mode Detecting fire Activated via interconnect Pressing Silence Button on Alarm detecting fire x 10mins With the test button held the green LED will flicker/pulse every second...
- Page 40 Memory mode Status Action Red LED Sound (alarm) 0-24h every 48 sec every >24h + Press and hold test button 8 sec To erase the Sounds until test button Keep test button pressed for >20s memory is released The Alarm memory is an important feature where even if the house is unoccupied during an alarm condition it warns the homeowner that the Alarm has previously detected Fire and been in alarm.
- Page 41 Fault modes and Memory indicator What you hear / see What it What to do Green LED Yellow LED Red LED Chirps means (power) (fault) (alarm) every Reconnect AC AC mains off 48 sec mains power AC mains off every Reconnect AC Low battery mains power...
- Page 42 The Alarm can communicate its status and history through various Led flashes and chirps/beeps. However, a more comprehensive report of all such events is available through the AudioLINK download via the App. Low Battery Backup Fault If the battery backup supply is depleted, the sounder will give one short chirp with one yellow LED fault indicator flash every 48 seconds.
- Page 43 The entire Alarm must be replaced (Also check the replace by date on the label on the side of the Alarm). Disconnect the mains first and replace the Alarm - see ‚Removing the Alarm‘ section. Maximum Dust Compensation (EIB3016 and EIB3024 only) The Alarm monitors the dust contamination build-up in the optical smoke chamber and then compensates for it, reducing the possibility of false alarms.
-
Page 44: Important Safeguards
Important safeguards... - Page 45 Limitations of Alarms Multi-Sensor / Smoke / Heat Alarms can significantly help to reduce the risk of fire fatalities. However independent authorities have stated that these systems may be ineffective in some fire situations. There are a number of reasons for this: - The Alarms will not work if the mains power supply is off or disconnected and the backup battery is depleted.
- Page 46 When an alarm system is installed, basic safety precautions should always be followed, including those listed below: • Please read all instructions. • Use the Testing of the Alarm as a means to familiarise your family with the alarm sound and to practice fire drills regularly with all family members.
-
Page 47: Service And Guarantee
Service and Guarantee... -
Page 48: Getting Your Alarm Serviced
7.2 Guarantee Brooks guarantees this Alarm for five years from the date of purchase against any defects that are due to faulty materials or workmanship. If this Alarm should become defective within the guarantee period, we shall at our discretion repair or replace the faulty unit. - Page 49 Photoelectric Alarm EIB3016 conforms to AS3786:2014 Heat Alarm EIB3014 conforms to AS1603.3:2018 Multi Alarm EIB3024 conforms to AS3786:2014 & AS1603.3:2018...
- Page 50 Brooks Australia PTY Ltd. NSW - Head Office P.O. Box 7050 Silverwater NSW 1811 4 Pike Street Rydalmere NSW 2116 Ph: 02 9684 1466 Website: www.Brooks.com.au 1/3 Molan Street, Ringwood, VIC 3134 Ph: 03 9879 5294 P.O. Box 101 Woodville SA 5011...
