Brooks BAATLS Quick Manual

BAATLS / BAAISO - Alarm Controllers
Mains Powered 230V
Product Description
Smoke Alarms are designed to detect smoke particles in the air. However,
other airborns particles, i.e. steam, cooking fumes, dust, etc. can also cause
smoke alarms to generate false alarms. With interconnected smoke/heat
alarms, when one alarm senses smoke/heat, all alarms will sound. With
these Brooks alarm controllers, they can provide the occupant with easier
inspection, service and identification of where these false alarms have
initiated.

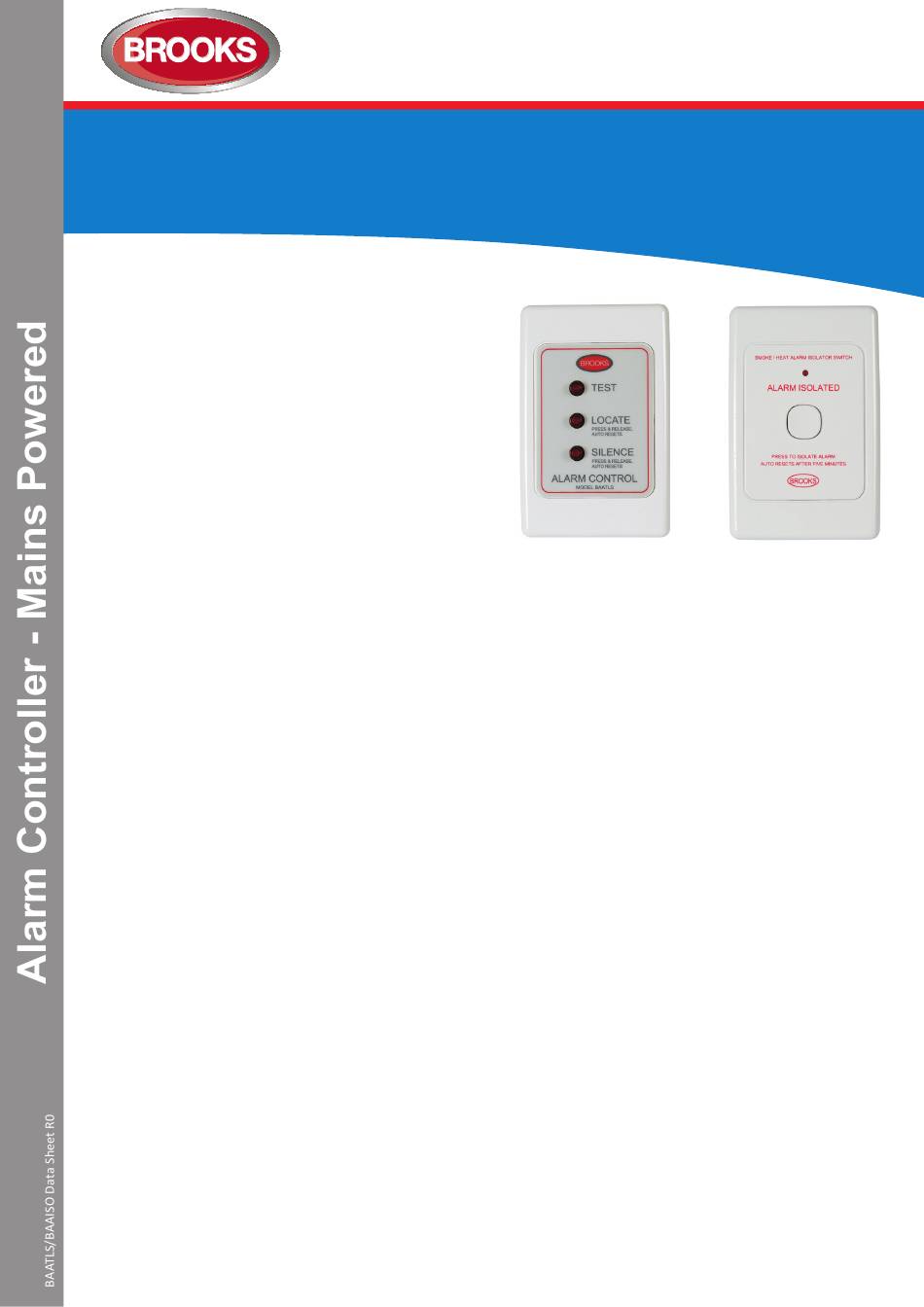

Two models for Alarm Controllers are available:
1. BAATLS: To test, locate and silence active 230-volt smoke/heat alarms
2. BAAISO: To only isolate active 230-volt smoke/heat alarms
Compatible Smoke/Heat Alarms
Both BAAISO and BAATLS can be used with Brooks 230-volt
interconnectable range of smoke/heat alarms, 160e and 140RC series
smoke/heat alarms.
All 160e and 140RC Series Smoke/ Heat alarms MUST be fitted with
EIBPLATE when connecting to BAATLS or BAAISO. The AIBPLATE had
additional terminal to connect the battery negative required for connection
to BAATLS or BAAISO.
WARNING: Both BAAISO & BAATLS must be installed by a licensed
electrician in accordance with regulations for electrical installation
(AS3000). Failure to install the alarms correctly may expose the user to
shock or fire hazard.
