Mains Powered
EIB3028 / 3018
Alarms
Instruction Manual
Read and retain carefully for as long as the product is being used. It contains vital
information on the operation and installation of your Alarm. The leaflet should be
regarded as part of the product.
If you are just installing the unit, the leaflet MUST be given to the householder. The
leaflet is to be given to any subsequent user.

Advertisement

Table of Contents
loading

Related Manuals for Brooks EIB3028

Summary of Contents for Brooks EIB3028

  • Page 1 Mains Powered EIB3028 / 3018 Alarms Instruction Manual Read and retain carefully for as long as the product is being used. It contains vital information on the operation and installation of your Alarm. The leaflet should be regarded as part of the product.

  • Page 3: Table Of Contents

    Contents Installer Guide 1. Introduction 1.1 Overview 1.2 Technical Specifications 2. Installation 2.1 Important Safety Instructions 2.2 Where to locate the Alarm? 2.3 Which Alarm in what room? 2.4 Where in the room? 2.5 Unsuitable locations 2.6 Mounting and wiring 2.7 Interconnecting Alarms 2.8 Removing the Alarm...
  • Page 4 User Guide 3. What is Carbon Monoxide? 3.1 Symptoms of CO poisoning 3.2 How to protect your family against CO 3.3 How does your Alarm work 4. Testing 4.1 Testing and maintaining your Alarm 4.2 Cleaning your Alarm 5. What to do in case of fire alarm 6.

  • Page 5: Installer Guide

    Installer Guide Introduction...

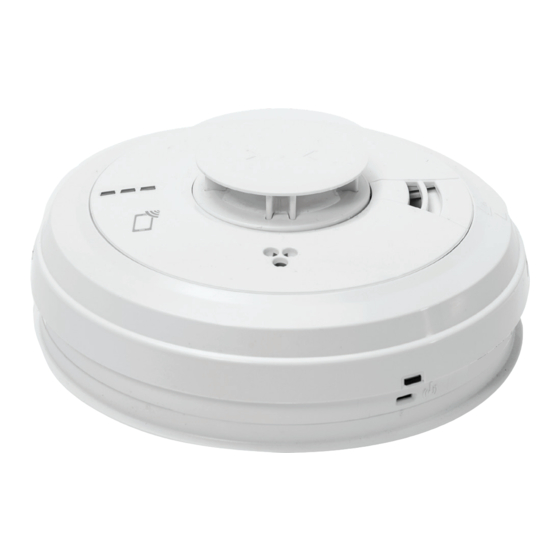

  • Page 6 The EIB3028 is a dual sensor Heat and Carbon Monoxide (CO) Alarm. It contains a proven electrochemical CO sensor to detect the presence of toxic levels of Carbon Monoxide as well as an independent fast acting Class A1 Thermistor sensor to detect dangerous levels of heat. The combination of CO and Heat detection makes it an ideal Alarm for kitchens, utility rooms and garages where fuel burning appliances maybe installed.

  • Page 7: Overview

    1.1 Overview EIB3028 Heat / Carbon Monoxide Alarm Red LED Alarm Indicator Yellow LED Fault Indicator Green LED Power Indicator Test / Hush Button Alarm Sounder Alarm Removal Latch Heat Sensor ‘FIRE’ & ‘CO’ (Thermistor) LED Display (normally hidden) RF Module...
  • Page 8 EIB3018 Carbon Monoxide Alarm Green LED Test / Hush Button Alarm Sounder Power Indicator Yellow LED Fault Indicator Red LED Alarm Indicator Alarm Removal Latch RF Module LED Indicator RF Module Learn Switch Carbon Monoxide Sensor Entry Holes...

  • Page 9: Technical Specifications

    1.2 Technical Specifications Heat Sensor Thermistor (EIB3028) Class A1 detection – Alarm is triggered at 58°C Carbon Monoxide Sensor Electrochemical (EIB3028 and EIB3018) Power Supply 100-250V AC, 50Hz, 0.25W Built-in 10-year rechargeable Vanadium Pentoxide Lithium cells. Fully Battery Backup charged, the battery will provide up to 6 months (without module...
  • Page 10 Humidity Range 15% to 95% RH (non-condensing) Plastic Material UL94V-0 flame retardant rated EIB3028: Product: - Ø150mm x 66mm Package - 155 x 155 x 70mm Dimensions EIB3018: Product: - Ø150mm x 63mm Package - 155 x 155 x 65mm Weight...

  • Page 11: Installation

    Installation...

  • Page 12: Important Safety Instructions

    2.1 Important Safety Instructions Mains operated Alarms should be installed and interconnected by a licensed electrician in accordance with the relevant Regulations for Electrical Installations. Failure to install this Alarm correctly may expose the user to shock or fire hazards and damage the product. The Alarm is designed to be permanently mounted, using its own built-in terminal block to connect it to the mains.

  • Page 13: Where To Locate The Alarm

    (e.g. RadioLINK). 2.2 Where to locate the Alarm The EIB3028 Heat and CO Alarm can be installed for dual protection against Fire and Carbon Monoxide anywhere a Heat Alarm is recommended/specified. It is ideal for kitchens, garages, boiler houses and other areas where there are normally high levels of fumes, smoke or dust i.e.

  • Page 14: Which Alarm In What Room

    - If the appliance is in a room not normally used (such as a boiler room) the CO Alarm should be placed just outside the room so that the alarm will be heard more easily. 2.3 Which Alarm In what room? Location EIB3028 EIB3018 Heat and CO Alarm Alarm ✔...

  • Page 15: Where In The Room

    2.4 Where in the room? The locations must comply with applicable building regulations In a room WITH a fuel burning appliance CO Alarm - The CO alarm should be a horizontal distance of between 1m and 3m from the potential CO source - If there is a partition in the room, the CO Alarm should be located on the same side of the partition as the potential source.

  • Page 16: Unsuitable Locations

    - At breather level (approx.. 1 to 2m above the floor) so it is possible to view the three light indicators. CO Alarm WARNING: The EIB3028 Heat and Carbon Monoxide Alarm is not suitable for wall mounting 2.5 Unsuitable locations Do not place the Alarm in any of the following areas: •...
  • Page 17 • In an enclosed space (e.g. in or below a cupboard). • In a damp or humid area. • Where it would be obstructed, e.g. by curtains or furniture. • Where dirt or dust could block the sensor. • Near paint, thinners, solvent fumes or air fresheners. •...

  • Page 18: Mounting And Wiring

    2.6 Mounting and wiring 1. Select a location complying with the advice in previous sections. 2. Disconnect the AC mains supply from the circuit that is going to be used. 3. Lift off the wiring cover as shown in Figure 4. The wiring must be TPS 1.5mm and connected to the terminal block on the mounting plate...
  • Page 19 Warning: Mixing the Live and Neutral connections when interconnecting Alarms may damage all the Alarms - ensure that the same colours are used throughout the premises for Live, Neutral and Interconnect wires. We strongly recommend that you check for the following before connecting the Alarm: •...
  • Page 20 Fig.5 Fig.6 If the mains wires are being brought along the surface: (a) position the mounting plate so the cable trunking is as shown in Figure 5. (b) the mounting plate has a removable section, take it out to interface directly with 25mm trunking as shown in Figure 6.
  • Page 21 Alarms can then be heard in the distance as they will continue to sound for a further 3 seconds. Note: On initial press the EIB3028 will alarm the fire sound pattern. On second press the EIB3028 will alarm the CO sound pattern.

  • Page 22: Interconnecting Alarms

    Heat Alarms should always be interconnected to Smoke or Multi-Sensor Fire Alarms to ensure early warning. Note: A maximum of 12 Fire / CO Alarms and accessory devices can be interconnected in an Brooks Alarm system. (Any EIB3000 series Alarm can also be interconnected to an EIB160e and EIB140RC Series).
  • Page 23 Make electrical connections as shown in Fig.9 Figure 9. Wiring must be installed in compliance with AS3000. In Australia it is recommended that the following coloured cores are used. 230V supply : Brown Neutral : Blue Interconnect : White The interconnect wire must be treated as if it was Live. It should be double insulated. A maximum of 250 metres of wire can be used (maximum resistance between Alarms 50 Ohms).

  • Page 24: Removing The Alarm

    Please note in a hybrid system containing CO / Heat / Multi / Smoke Alarms we recommend using an EIB3000 Series Alarm as the hybrid link to the RF section of the system. Ensure the Alarms operate correctly - see TESTING YOUR ALARM in the user section. 2.8 Removing the Alarm * Disconnect mains before removal * Locate removal slot...

  • Page 25: User Guide

    User Guide What is Carbon Monoxide?
  • Page 26 Many people are killed each year, and many more suffer ill health from Carbon Monoxide (CO) poisoning. CO is an invisible, odourless, tasteless and extremely toxic gas. It is produced by appliances and vehicles burning fuels, such as coal, oil, natural/bottled gas, paraffin, wood, petrol, diesel, charcoal etc.

  • Page 27: Symptoms Of Co Poisoning

    3.1 Symptoms of CO poisoning Table A Concentration Inhalation Time (approx) and Symptoms Developed of CO in Air ppm The maximum allowable concentration for continuous exposure in any 8 hour period according to OSHA *. Slight headache after 1.5 hours. Slight headache, fatigue, dizziness, nausea after 2-3 hours.

  • Page 28: How To Protect Your Family Against Co

    3.2 How to protect your family against CO Follow these guidelines to reduce the risk of Carbon Monoxide poisoning. (1) Know and look out for tell-tale signs that Carbon Monoxide may be present. These include: - The CO Alarm warning of abnormal levels. - Staining, sooting or discolouration on or around appliances.

  • Page 29: How Does Your Alarm Work

    Carbon Monoxide alarm pattern is a repeating cycle of 3 slower sound pulses followed by a pause. On the EIB3028, the LED display will indicate if Fire or CO is detected. The flash rate of the red LED indicator is dependent on the alarm event type, and in the case of CO, on the level detected. Table B...
  • Page 30 Table B - Alarm indicators LED icon Event type Red LED Alarm Fire or CO (EIB3028 only) FIRE every 5 sec Flashing (EIB3028 only) CO Gas Level within every 4 sec Flashing ≥ 50ppm 60-90 mins within CO Gas Level...
  • Page 31 • If CO is detected, you should open all windows and doors (if safe to do so), and then evacuate. Table C - Memory indicators Red LED LED icon - Fire or CO (EIB3028 only) Event type > 24h on test button >...
  • Page 32 The Alarm memory is an important feature of the Alarm where even if the house is unoccupied during an alarm condition it warns the homeowner that the Alarm has previously detected Fire or CO gas and been in alarm. Table C outlines the indicators that are displayed in the memory mode. Hush feature The Alarm has a combined Test/Hush Button.

  • Page 33: Testing

    Testing...

  • Page 34: Testing And Maintaining Your Alarm

    4.1 Testing and maintaining your Alarm Frequent testing of all your Alarms is a requirement to ensure they are functioning correctly. Guidelines and best practices for testing are as follows: 1. After the system is installed. 2. Once monthly thereafter. 3.
  • Page 35 (iii) Press the test button for up to 10 seconds and ensure that the Alarm sounds. (Note: On initial press the EIB3028 will alarm the fire sound pattern. On second press the EIB3028 will alarm the CO sound pattern). This tests the sensor, electronics and sounder are working. The Alarm will stop when the button is released.

  • Page 36: Cleaning Your Alarm

    prevent the batteries becoming fully depleted. (This is sometimes done with holiday homes which are only occupied in the summer). The EIB3000MRF modules (if required) must be re-fitted to the Alarms and the Alarms must be re-attached to the mounting plates when the premises are re-occupied. Ensure to match the original RF module back to the same Alarm head.
  • Page 37 Use the narrow nozzle attachment of your vacuum cleaner to remove dust, insects and cobwebs from the sides and cover slots where the airflow enters. Clean the outside cover by occasionally wiping with a clean damp cloth then dry thoroughly with a lint free cloth. Do not use any cleaning agents, bleaches, detergents or polishes, including those in aerosol cans.

  • Page 38: What To Do In Case Of Fire Alarm

    What to do in case of FIRE?
  • Page 39 (i) Check room doors for heat or smoke. Do not open a hot door. Use an alternate escape route. Close all doors behind you as you leave. (ii) If smoke is heavy, crawl out, staying close to floor. Take short breaths, if possible, through a wet cloth or hold your breath.

  • Page 40: What To Do In Case Of Co Alarm

    What to do in case your Alarm detects Carbon Monoxide?
  • Page 41 (i) Open the doors and windows to ventilate the area (if it is safe to do so). (ii) Turn off all fuel appliances where possible. (iii) Evacuate the property leaving the doors and windows open. (iv) Get medical help immediately for anyone suffering the effects of Carbon Monoxide poisoning (headache, nausea), and advise that Carbon Monoxide poisoning is suspected.

  • Page 42: Troubleshooting And Indicator Summary Tables

    Troubleshooting Indicator summary tables...
  • Page 43 • Locate the Alarm that sounds and has a flashing red LED. • Identify the alarm type – Fire or CO (EIB3028) • For Fire: - If you have thoroughly investigated and are sure that it is just a nuisance alarm, simply press the Test/Hush button briefly to silence the Alarm and any interconnected devices for 10 minutes.
  • Page 44 • For CO: - Ensure there are no fuel burning appliances in the vicinity which could be leaking CO gas (e.g. even from next door). - Ensure there are no fumes or aerosols in the area (e.g. paint, thinners, hair spray, chemical cleaners, aerosol sprays, damp proofing done with and aqueous emulsion such as Aminofunctional siloxane and Alkylalkoxysilane) which can cause false CO alarms.
  • Page 45 Interconnected Alarms • Hold test button for 10 seconds after the first alarm has sounded to do not all sound ensure signal is transmitted to all units. • If this is not the case and you have a hardwired interconnection, we recommend you consult a licensed electrician.
  • Page 46 Normal Operation Mode / Action Green LED Yellow LED Red LED Alarm Icon Display Notes (Power) (Fault) (Alarm) FIRE/CO (EIB3028 only) 1 Flash Power up & Standby Testing (pressing and holding Flashing Test button) In Alarm Fire sound Detecting Fire...
  • Page 47 The Alarm memory is an important feature of the Alarm where even if the house is unoccupied during an alarm condition it warns the homeowner that the Alarm has previously detected Fire or CO gas and been in alarm. It is particularly useful in the case of CO leakages which may have occurred when the owner is away from the property - for example, CO leaking from a faulty boiler operating on a timer.
  • Page 48 = LED on solid = LED flashing Memory mode What you hear / see Icon Display FIRE/CO Red LED What type of (EIB3028 only) alarm event has occurred >24h >24h 0-24h 0-24h on button test on button test Flashing every...
  • Page 49 Fault modes and Memory indicator What you hear / see What it What to do Green LED Yellow LED Red LED Chirps means (power) (fault) (alarm) every Reconnect AC AC mains off 48 sec mains power AC mains off every Reconnect AC Low battery 48 sec...
  • Page 50 Reset Memory: Hold down the test button for at least 20 seconds. Cover the horn with a cloth to muffle the alarm during this time. Clearing of the memory is indicated by a 1-second-long flash of the red LED alarm indicator. Please note that the alarm memory will also be reset if the Alarm is removed from its mounting plate (switched off).
  • Page 51 End of Life Once the Alarm passes its 10th year of installation, it will give 3 short chirps with 3 yellow LED flashes every 48 seconds to indicate it has reached its end of useful life. The entire Alarm must be replaced (Also check the replace by date on the label on the side of the Alarm).

  • Page 52: Important Safeguards

    Important Safeguards...
  • Page 53 Limitations of Heat and CO Alarms - Mains powered Alarms will not work if the mains power supply is off or disconnected and the backup battery is depleted. - The Alarms may not be heard. The sound output is loud but it may not be heard behind a closed door or if it is too far away.
  • Page 54 insurance. The CO Alarm warns of increasing CO levels, but we do not guarantee that this will protect everyone from CO poisoning. - CO Alarms are not suitable as early warning Smoke Alarms. Some fires produce Carbon Monoxide, but the response characteristics of these CO Alarms are such that they would not give sufficient warning of fire.

  • Page 55: Service And Guarantee

    Service and Guarantee...

  • Page 56: Getting Your Alarm Serviced

    9.2 Guarantee Brooks guarantees this Alarm for five years from the date of purchase against any defects that are due to faulty materials or workmanship. If this Alarm should become defective within the guarantee period, we shall at our discretion repair or replace the faulty unit.
  • Page 57 Compliances: Multi CO/Heat Alarm EIB3028 conforms to AS1603.3:2018 & EN50291-1:2010 CO Alarm EIB3018 conforms to EN50291-1:2010...
  • Page 60 Brooks Australia PTY Ltd. NSW - Head Office P.O. Box 7050 Silverwater NSW 1811 4 Pike Street Rydalmere NSW 2116 Ph: 02 9684 1466 Website: www.Brooks.com.au 1/3 Molan Street, Ringwood, VIC 3134 Ph: 03 9879 5294 P.O. Box 101 Woodville SA 5011...
